Heavy-Duty Steel Grating Solutions for Industrial Platforms, Walkways and Infrastructure Projects
Steel grating is composed of bearing flat bars and cross bars, which are arranged orthogonally at fixed intervals and connected through welding or press-locking techniques. This open-grid structure combines both strength and flexibility, making it ideal for applications that require high safety and performance standards. Its robust design has made steel grating the preferred choice for various industries, including construction, mining, and manufacturing, where reliability and durability are essential. Trusted for its exceptional quality, steel grating is a go-to material for demanding environments and critical infrastructure.
Welded Steel Grating
Our Type "W" Welded Steel Gratings are made by forge welding rectangular bearing bars to drawn cross bars, creating a strong, fused connection that ensures long-lasting performance, even in the toughest environments.
The 19-W-4 spacing is our most popular choice and is ideal for a wide range of industrial flooring applications. Offering nearly 80% open area, it allows dirt, debris, snow, and liquids to pass through easily, making it essentially self-cleaning.
For public spaces, we offer ADA-compliant spacings such as 11-W-4 and 7-W-4. These gratings are designed to meet accessibility standards. When selecting 11-W-4 for ADA applications, it's important to specify bearing bars that are 3/16” thick to ensure compliance.
Swage Locked Steel Grating
Type "SL" Steel Gratings are produced by inserting hollow tube cross bars into pre-punched holes in the bearing bars. These cross bars are then hydraulically compressed, creating a strong mechanical connection. The recessed cross bars sit below the surface of the bearing bars, giving the grating a sleek and uniform architectural look.
The swage locking process is particularly effective for producing ADA-compliant gratings. For example, the 7-SL-4 type, featuring 3/16" thick bearing bars, creates a 1/4" clear opening between the bars. This narrow spacing is ideal for public spaces where pedestrian traffic includes high heels, and efficient drainage is required.

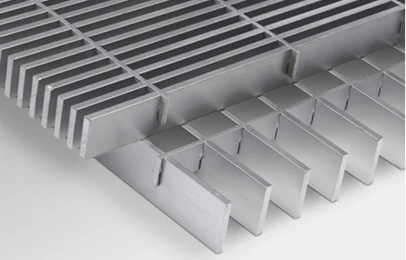

Dovetail Pressure Locked Steel Grating

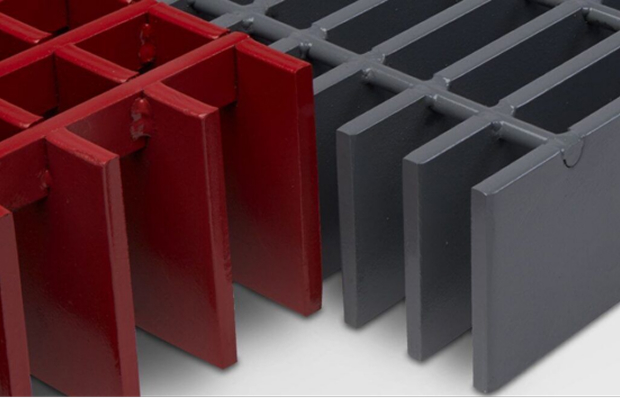

Type "DT" Steel Gratings feature deep rectangular cross bars and are created by inserting pre-punched bearing and cross bars into an "egg-crate" pattern. The cross bars are then deformed under high hydraulic pressure to form a strong, secure connection.
The distinctive deep cross bars make Type "DT" gratings especially popular for architectural applications, such as sunshades and infill panels. The deeper bars not only enhance the grating’s strength but also add a unique architectural accent to any design.
Full Customization Service – Beyond Standard Limits
We strongly support custom manufacturing to meet your exact project requirements:
Any size & shape: Rectangular, circular, trapezoid, U-shaped, L-shaped, special cut-outs for pipes, handrails, or equipment
Any bar spacing: Non-standard pitch for specific load or drainage needs
Special materials: Mild steel, low-carbon steel, stainless steel 304/316, aluminum alloy
Colors: Any RAL or custom color powder coating
Surface options: Serrated, plain, non-slip patterns, checker plate nosing on stair treads
Additional fabrication: Banding, kick plates, cut-outs, lifting handles, hinges, frames, stair treads with checker plate
Special load design: Heavy-duty (truck loads), extra light-weight, high-impact

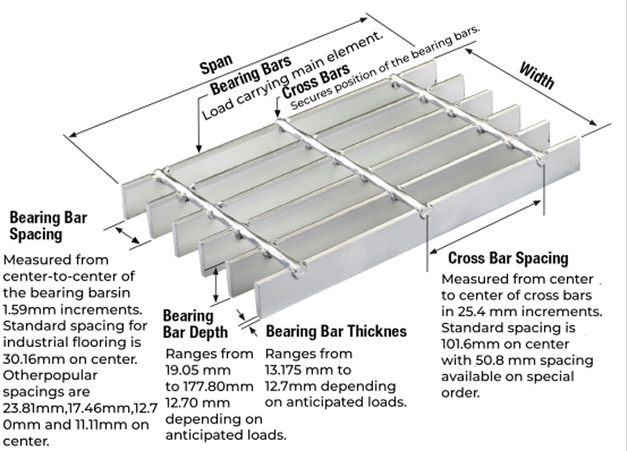

Bearing Bar Sizes
|
Common |
25×3, 25×5, 30×3, 30×5, 32×5, 35×5, 38×5, 40×5, 50×5, 65×5, etc. |
|
Thickness |
3mm – 10mm |
|
Height |
20mm – 100mm |
Cross Bar Sizes
Mesh/Pitch (mm)
Standard Panel Sizes
Load Capacity

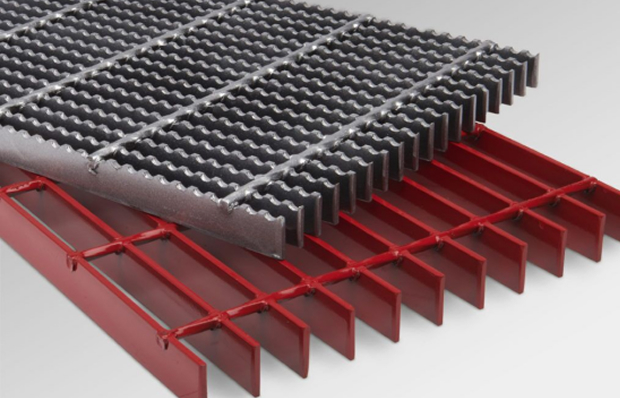

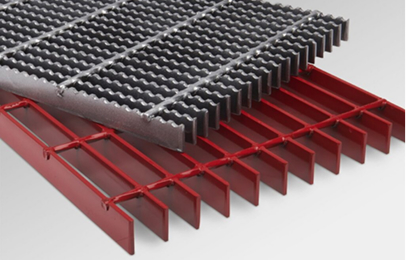

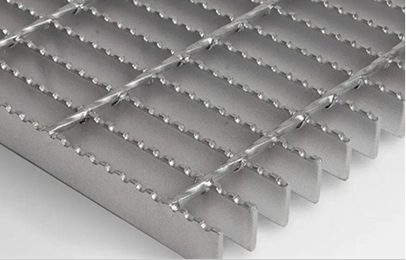

Serrated Bar Steel Grating

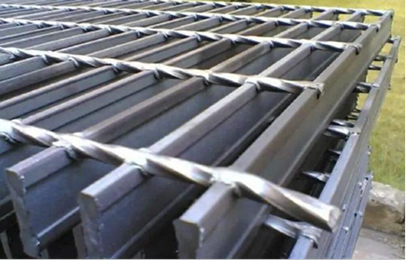

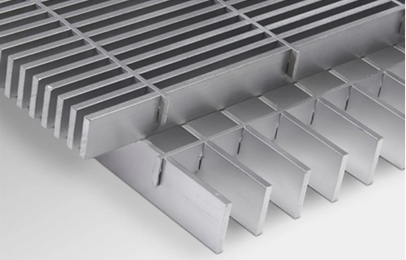

I Bar Steel Grating

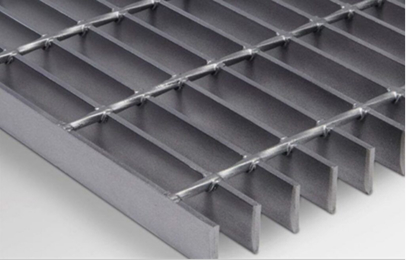

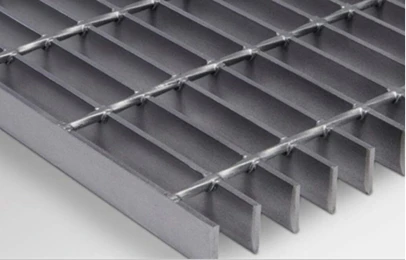

Flat/Plain Bar Steel Grating

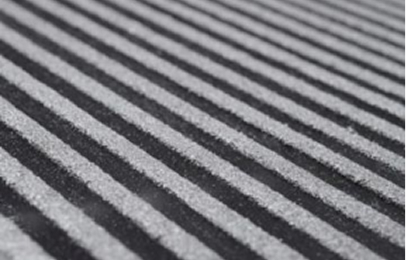

OnGrip™ Surface

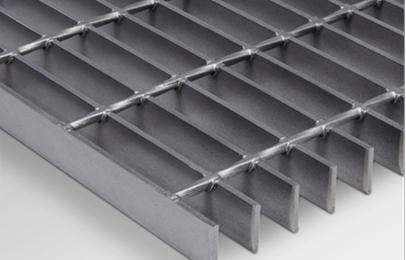

Plain Surface

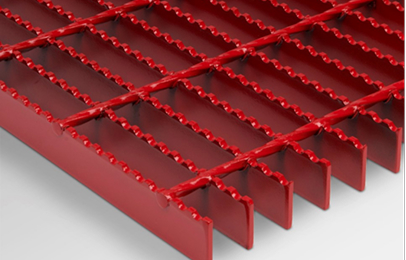

Serrated Surface
Bare Steel
Hot Dip Galvanized
Other Finishes
Painted
Standard Trim Banding
Standard Trim Banding The band bar matches the exact height and thickness of the bearing bars, creating a consistent, flush finish on all sides of the panel. This is the most common choice for general applications.
Trench Banding
The band bar is intentionally shorter than the bearing bars, sitting slightly above the bottom edge. This design improves drainage by preventing liquid from pooling between the grating and support structures — ideal for drainage trenches, gullies, and wet areas.
Banding is a practical and popular finishing option that adds both strength and a clean, professional look to your steel grating panels. It involves welding a flat metal bar along the open ends of the grating, creating a framed edge that significantly improves lateral stiffness and protects the cut ends.
Steel Grating Projects Requiring Edge Banding
We recommend banding for the following situations:
Removable Panels: Provides extra safety for workers when lifting or moving panels.
Vehicular Traffic Areas: Helps distribute impact loads, reduces deformation, and extends the service life under repeated vehicle traffic.
Architectural & Visible Installations: Delivers a neat, uniform appearance suitable for commercial and public projects.

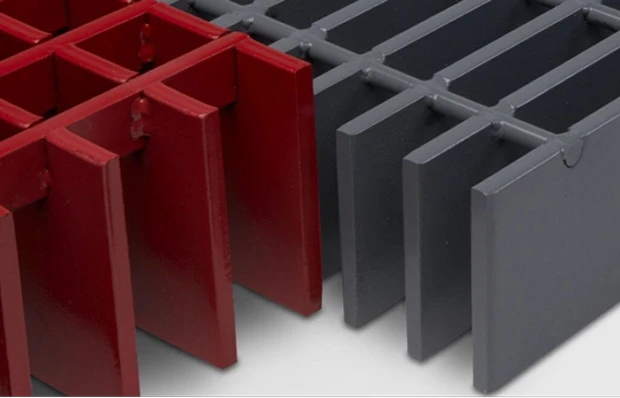

Heavy Duty Steel Grating for High Load Applications
Designed for demanding environments, heavy duty steel grating features reinforced bearing bars and optimized load-bearing structures to handle higher static and dynamic loads. It is widely used in ports, airports, highways, mining facilities, power plants, and heavy industrial areas with frequent vehicle or equipment traffic.
Our engineering team evaluates load requirements, span conditions, and application environments to recommend suitable bar sizes, spacing configurations, and fabrication methods, helping customers achieve safe and cost-effective solutions for heavy-duty projects.
Standard Steel Grating for Industrial Applications
Our standard steel grating solutions are manufactured for industrial flooring, walkways, platforms, drainage covers, and maintenance areas where strength, safety, and durability are required. With precise control of bearing bar dimensions, cross bar spacing, and surface treatment, we provide reliable grating solutions that meet different load requirements and installation conditions.

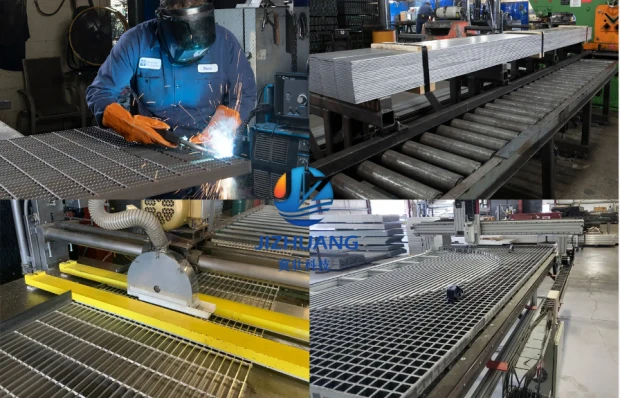

Custom Fabrication for Complex Project Requirements
Beyond standard sizes, we provide customized steel grating fabrication based on customer drawings, load calculations, and installation requirements. Our manufacturing capabilities include cutting, edge banding, surface treatment, stair treads, kick plates, cut-outs, and special shapes for complex industrial applications.
Industrial Platform & Walkway Steel Grating
Pipe Rack & Equipment Support Grating
Factory Floor & Maintenance Walkway Grating
Drainage Trench Covers & Grating Panels
Architectural Steel Grating Applications
Industrial Equipment Access Platforms
Security Fence & Protective Grating Systems
Steel Grating Stair Treads

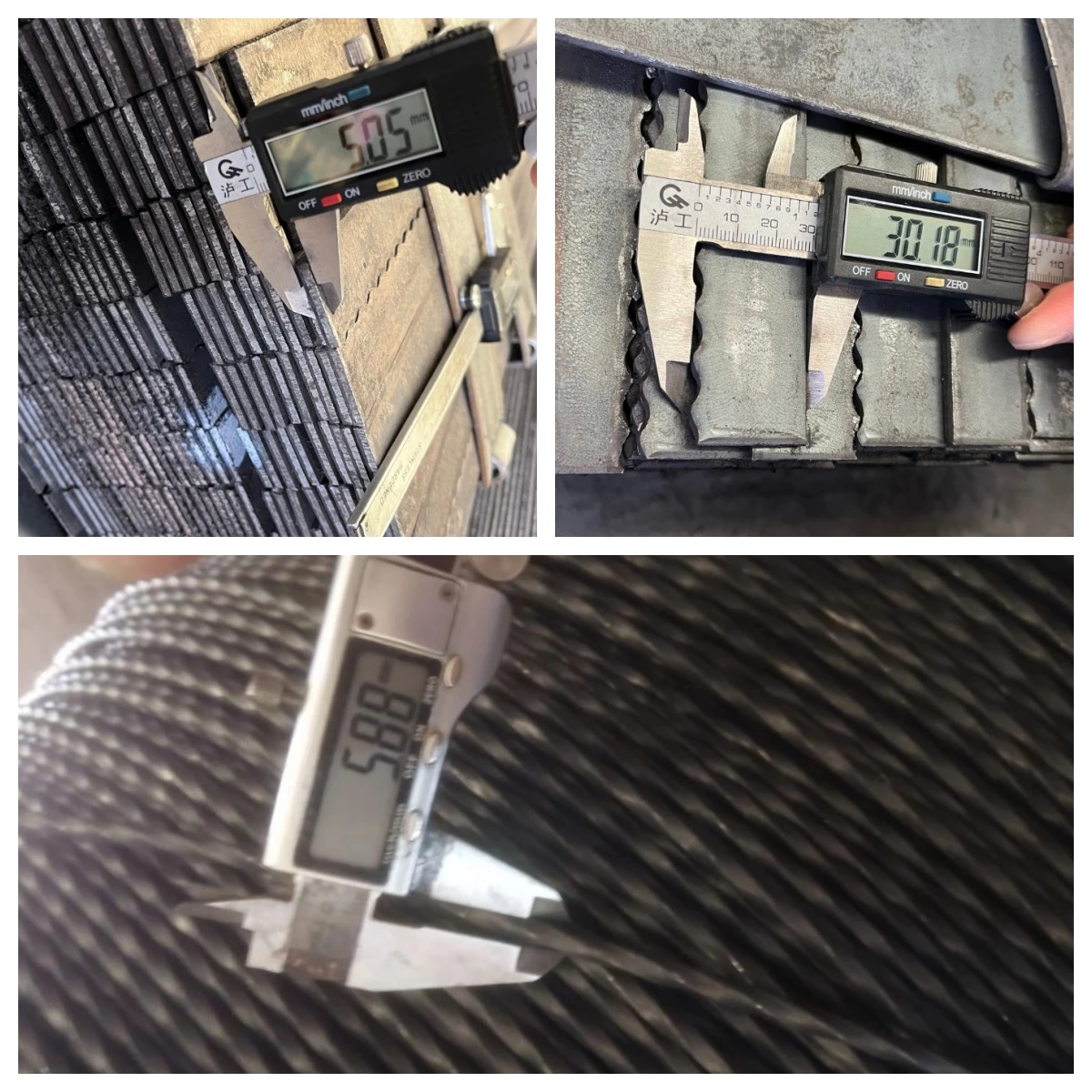

Raw Material Inspection
Before production, we verify the quality of raw steel materials to ensure consistent mechanical performance and durability.
Inspection items include:
Steel grade verification (carbon steel, stainless steel, aluminum alloy)
Bearing bar thickness and height inspection
Flat bar straightness and surface condition
Material certificates and traceability records

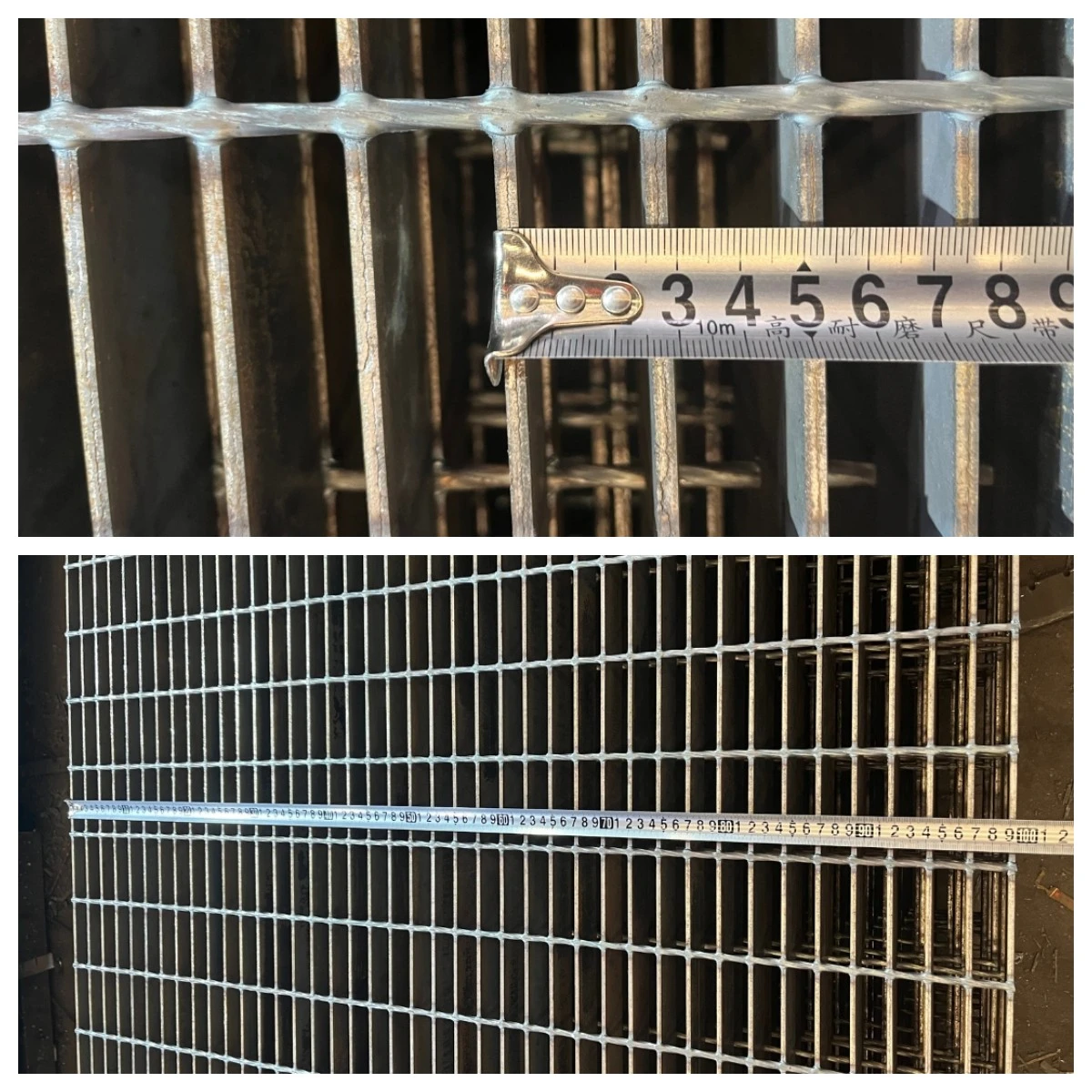

Steel Grating Dimension Inspection
Accurate dimensions are essential for smooth installation and project compliance. Our QC team checks each steel grating panel according to approved drawings and specifications.
Inspection includes:
Panel length and width
Bearing bar height and thickness
Bearing bar spacing
Cross bar spacing

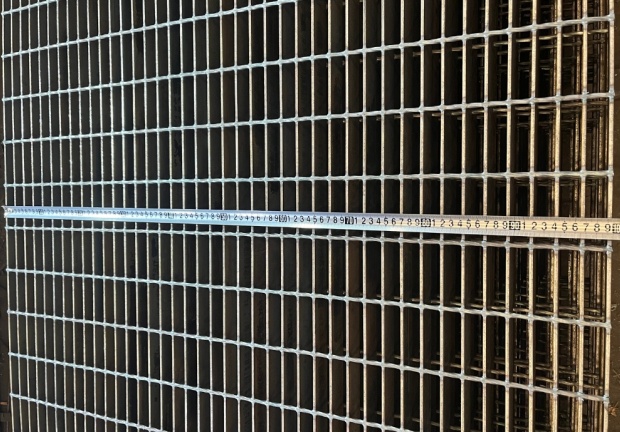

Diagonal measurement and flatness
Opening size and tolerance

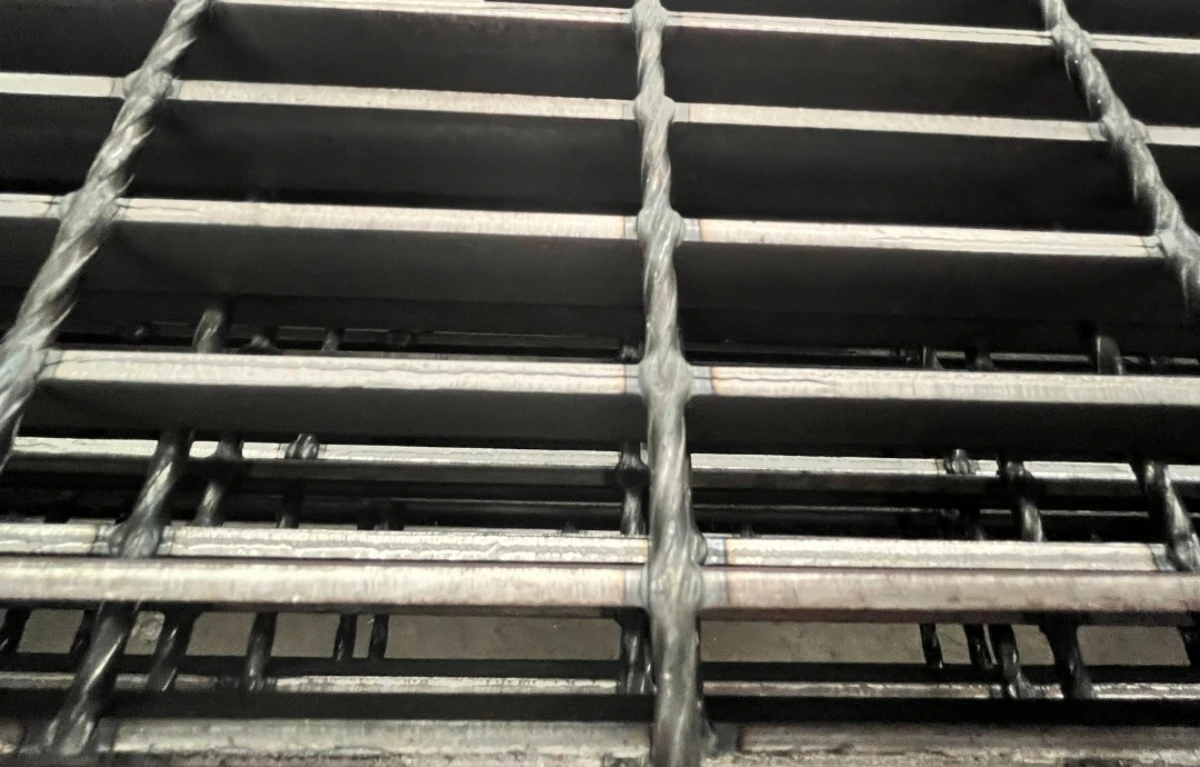

Welding Quality Inspection
For welded steel grating, we inspect every connection point to ensure structural stability and long-term performance.
Inspection points:
Welding strength and consistency
Cross bar fixing condition
Weld penetration and appearance
Missing or weak weld points
Panel deformation after weldinga

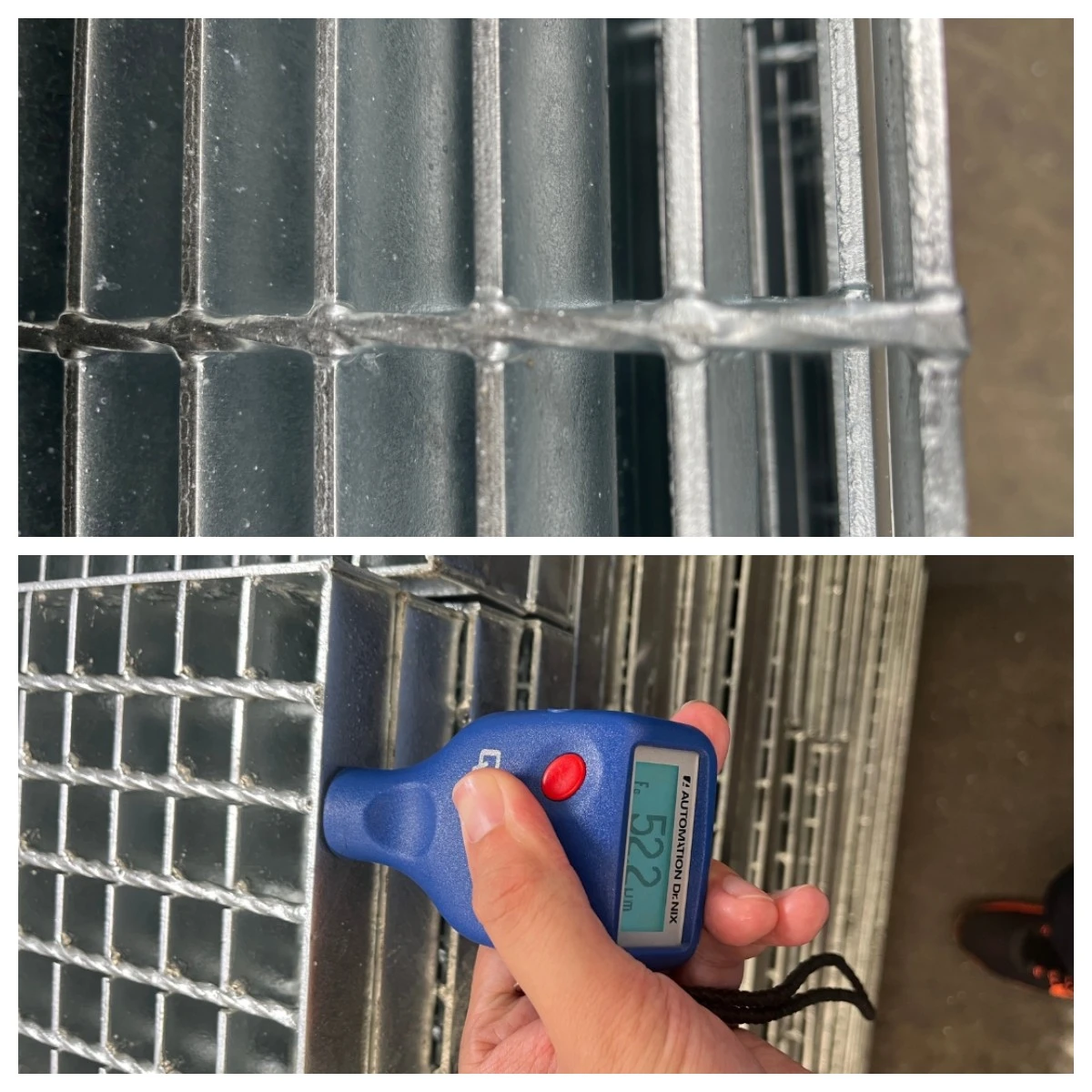

Surface Treatment Inspection
Surface protection directly affects service life, especially for outdoor and industrial applications.
Inspection includes:

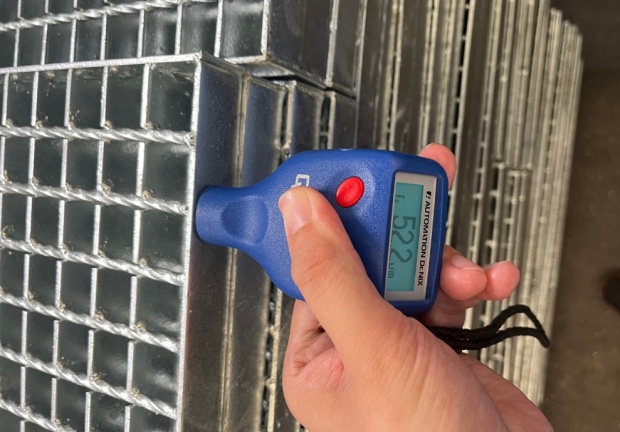

Zinc coating thickness measurement
Surface uniformity
Coverage of corners and welding areas
Coating thickness
Adhesion quality
Surface appearance
Surface finish inspection
Grade confirmation (304/316)
01
Secure & Durable Packing

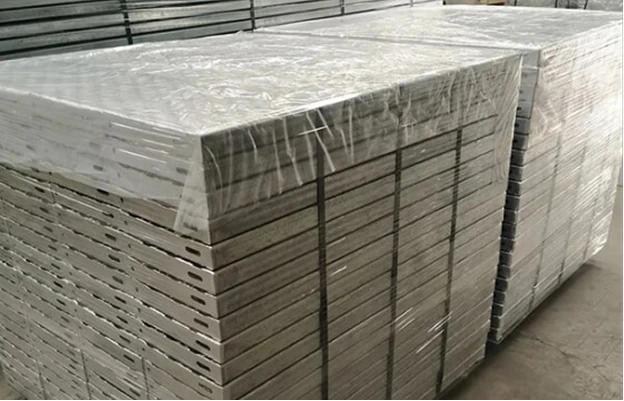

All steel gratings are firmly bundled with steel straps and reinforced when necessary to prevent shifting or deformation during transit. For long-distance shipping, we provide wooden pallets or steel frames to enhance stability and protection.
02
Protection Against Damage & Corrosion
Each bundle is properly secured to avoid scratches and edge damage. Optional waterproof wrapping is available to protect against moisture and corrosion during sea transportation.
03
Clear Labeling for Easy Identification
Every bundle is labeled according to drawing numbers or project codes, allowing quick identification on-site. This helps contractors save time, reduce errors, and speed up installation.
04
Optimized for Container Loading
Our packing is designed to maximize container space utilization while ensuring safety. This helps reduce shipping costs and improves overall logistics efficiency.
05
Easy Handling & Unloading
Bundles are packed with proper size and weight for easy lifting by forklift or crane, minimizing labor effort and handling time on-site.
06
Customized Packing Options
We offer flexible packing solutions based on your project needs, including:
Pallet packing
Steel frame packing
Bulk packing
OEM/neutral packing (for distributors)

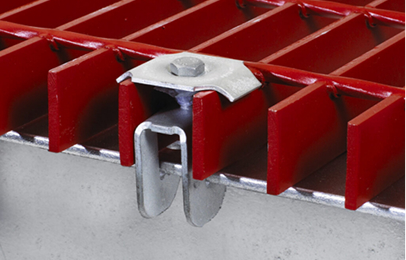

Saddle Clips

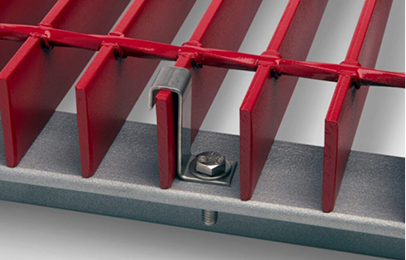

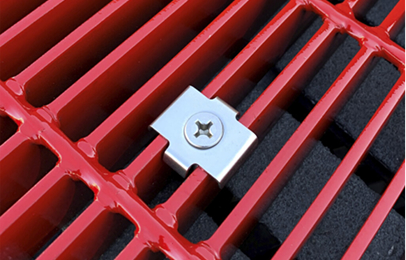

Bent clips bridging two bearing bars are available in galvanized steel, stainless steel, or aluminum. Standard bolt holes are 5/16″. Bolts, screws, or other connecting hardware shall be supplied by others.

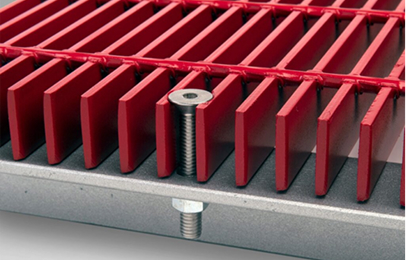

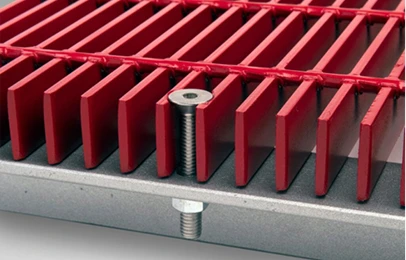

Countersunk Lands
The narrow spacing of close mesh grating allows for countersinking or milling of the bearing bars to support bolt shoulders. Flat head screws or self-drilling fasteners shall be supplied by others.
Weld Lugs

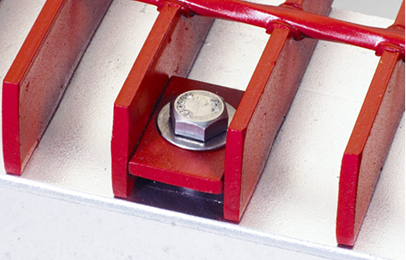

Plates, punched with holes and welded between the bearing bars, facilitate bolting to the supporting structure. Bolts, screws, or other connecting hardware shall be supplied by others.

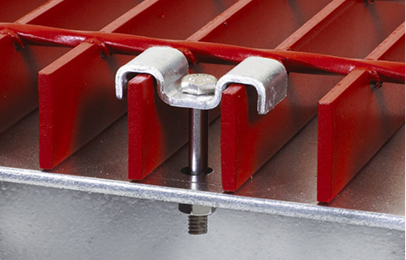

“G” Clips
Mechanical fasteners installed from the top surface of the grating create a friction connection with the flange supporting the panel. “G” clips are easily installed without drilling or welding.
Countersunk Lands
The narrow spacing of close mesh grating allows for countersinking or milling of the bearing bars to support bolt shoulders. Flat head screws or self-drilling fasteners shall be supplied by others.
“J” Clips
Narrow formed clip captures one bearing bar when spacing is limited, frequently 11/16″ on center. Cap screws and other fastening hardware shall be supplied by others.
