Reinforcing Mesh Product Range & Specifications

Our reinforcing mesh is manufactured using high-quality high-tensile steel wire and advanced automatic welding technology to provide reliable reinforcement solutions for concrete structures.

With flexible customization options, we supply welded reinforcing mesh for residential construction, industrial flooring, infrastructure projects, roads, bridges, and large-scale engineering applications.

Standard Mesh Specification

Item	Specification
Mesh Type	Square mesh / Rectangular mesh
Wire Diameter	4 mm – 16 mm
Longitudinal Wire Spacing	50 mm – 300 mm
Transverse Wire Spacing	50 mm – 300 mm
Sheet Width	Up to 3.0 m (custom available)
Sheet Length	Up to 12 m (custom available)

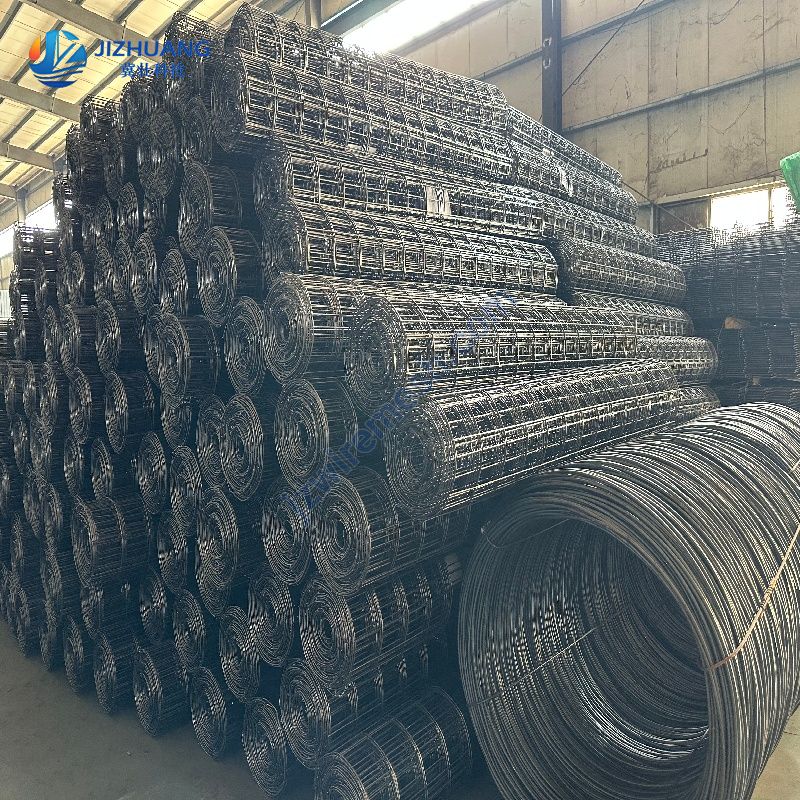

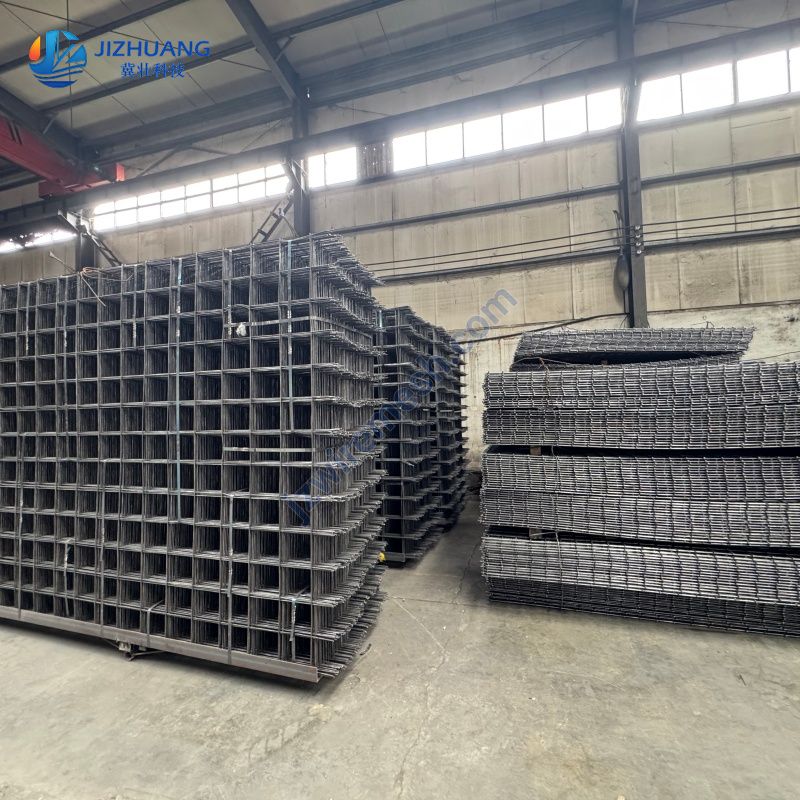

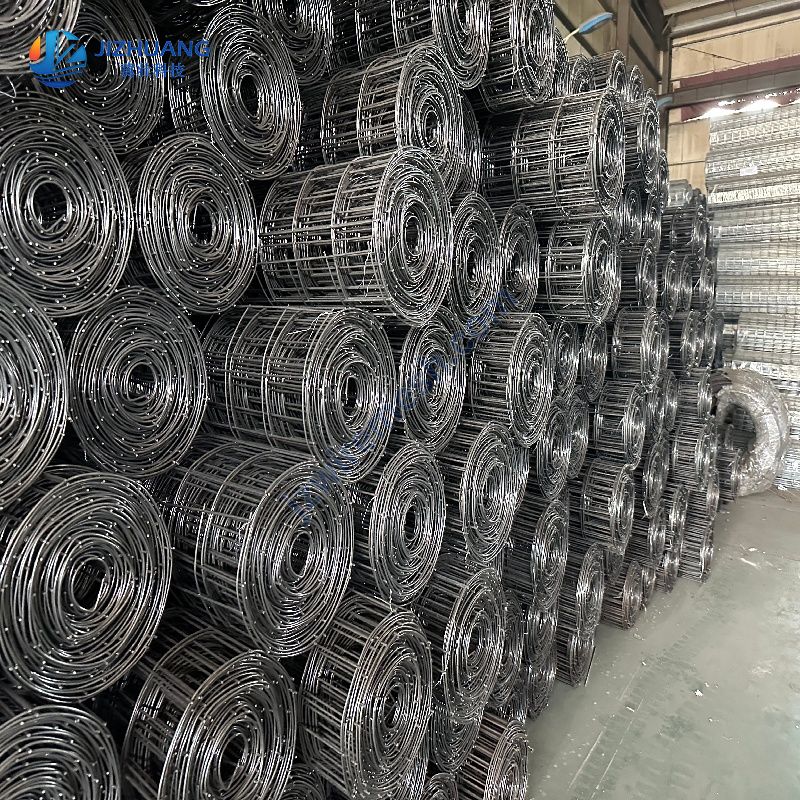

Delivery Form	Flat sheets or rolls

International Standard Reinforcing Mesh Systems

Based on the above material grades and technical specifications, our reinforcing mesh can be manufactured in accordance with different international construction standards.

Each standard defines specific wire arrangement, mesh configuration, and structural reinforcement requirements to meet regional engineering codes.

We support the following standard systems:

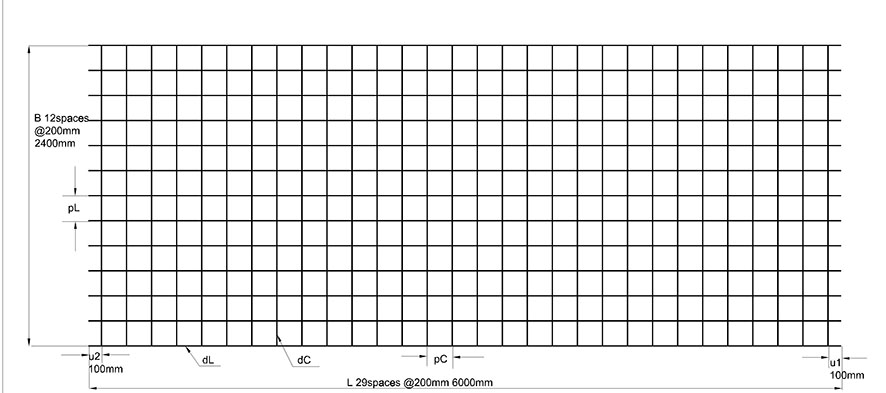

AS/NZS 4671– SL Series

Square Rib Mesh

Model	Diameter (mm)	Spacing (mm)	Size (m)
SL52	4.75	200 × 200	6.0 × 2.4/5.8×2.2
SL62	6	200 × 200	6.0 × 2.4/5.8×2.2
SL72	6.75	200 × 200	6.0 × 2.4/5.8×2.2
SL81	7.6	100×100	6.0 × 2.4/5.8×2.2
SL82	7.6	200 × 200	6.0 × 2.4/5.8×2.2
SL92	8.55	200 × 200	6.0 × 2.4/5.8×2.2
SL101	9.5	100×100	6.0 × 2.4/5.8×2.2
SL102	9.5	200 × 200	6.0 × 2.4/5.8×2.2

Rectangular Rib Mesh

Model	Diameter (mm)	Spacing (mm)	Size (m)
RL1218	11.9	100×200	6.0 × 2.4/5.8×2.2
RL1118	10.65	100×200	6.0 × 2.4/5.8×2.2
RL1018	9.5	100×200	6.0 × 2.4/5.8×2.2
RL918	8.55	100×200	6.0 × 2.4/5.8×2.2
RL818	7.6	100×200	6.0 × 2.4/5.8×2.2
RL718	6.75	100×200	6.0 × 2.4/5.8×2.2

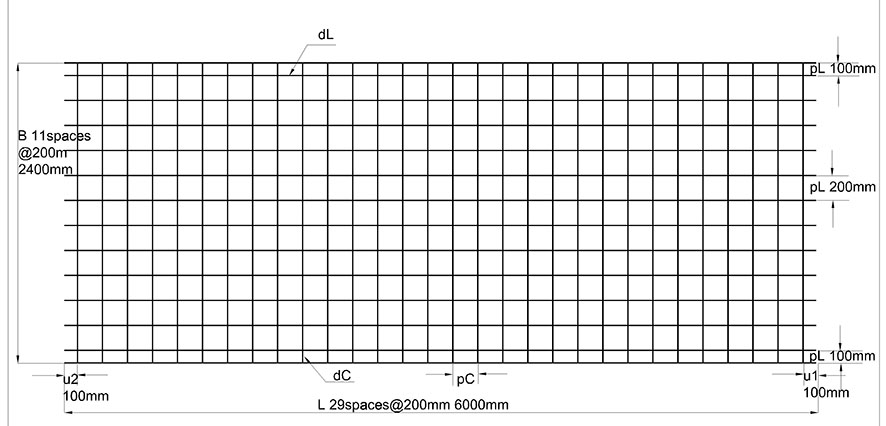

AS/NZS 4671– SE Series

Seismic Mesh

Model	Longitudinal Bars	Longitudinal Pitch (mm)	Cross-Bars	Cross-Bar Pitch (mm)
SE92 Large	13 × 9.0 mm	200	31 × 9.0 mm	200
SE82 Large	13 × 8.0 mm	200	31 × 8.0 mm	200
SE72 Large	13 × 7.0 mm	200	31 × 7.0 mm	200
SE62 Large	13 × 6.1 mm	200	31 × 6.1 mm	200
SE62 Standard	11 × 6.1 mm	200	24 × 6.1 mm	200
Custom	Customizable	Customizable	Customizable	Customizable

Mesh Type: SEISMIC 500E
Customization: Available for mesh dimensions, bar diameter, pitch and other specifications.

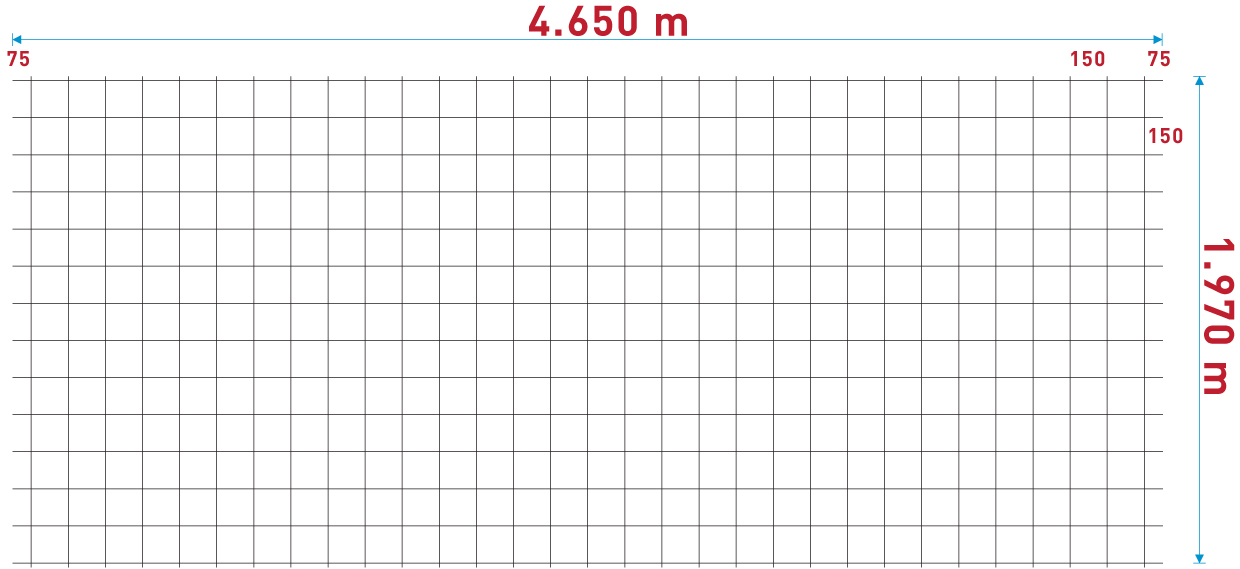

General Mesh

Code	Wire Diameter	Wire Pitch	Sheet Size
Code	(mm)	(mm)	(m)
STD668	4	150	4.65 x 1.97
STD666	5	150	4.65 x 1.97
STD665	5.3	150	4.65 x 1.97
STD664	6	150	4.65 x 1.97
STD663	6.3	150	4.65 x 1.97
STD662	7.1	150	4.65 x 1.97
STD661	7.5	150	4.65 x 1.97
F14665	5.3	150	6.15 x 2.42
F14664	6	150	6.15 x 2.42
F14663	6.3	150	6.15 x 2.42
STD338	4	75	4.65 x 1.97
STD335	5.3	75	4.65 x 1.97
STD333	6.3	75	4.65 x 1.97

Reinforcing Mesh

DIN488 – Q Series

Model	Diameter (mm)	Spacing (mm)	Size (m)	Weight (kg/m²)
Q131	5	150×150	2.15×5.0	3.95
Q188	6	150×150	2.15×5.0	5.65
Q221	7	150×150	2.15×5.0	6.70
Q295	8	150×150	2.15×5.0	8.90
Q378	9	150×150	2.15×5.0	11.35

BS4483 – A Series

Model	Diameter (mm)	Spacing (mm)	Size (m)	Weight (kg/m²)
A142	6	200×200	2.4×4.8	3.96
A193	7	200×200	2.4×4.8	5.30
A252	8	200×200	2.4×4.8	6.28
A393	10	200×200	2.4×4.8	9.86

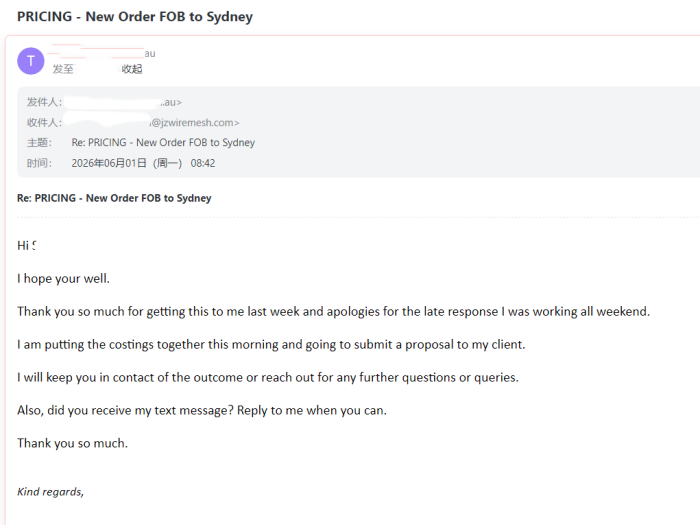

Project Case – Australia SL Series Repeat Orders

We supplied reinforcing mesh to a trading company in Australia for an SL81 project requirement based on AS/NZS standards.

After successful delivery and project acceptance, the customer placed additional repeat orders for other SL series sizes, including multiple specifications used in different construction applications.

The customer requirements included:

SL series reinforcing mesh according to AS/NZS 4671 standard
Customized labeling for project identification and warehouse management
Optimized container loading arrangement to improve space utilization and reduce shipping costs
Full quality inspection reports and export documentation support

Our engineering and logistics team provided detailed loading plans to maximize container efficiency and ensure stable freight cost control for bulk shipments.

All products were supplied with complete inspection reports and technical documentation to meet project compliance requirements.

After receiving the first shipment, the customer confirmed consistent quality and packaging performance, and continued placing repeat orders for additional SL series specifications.

Reinforcing Mesh

Manufacturing & Quality Control System

Production Process

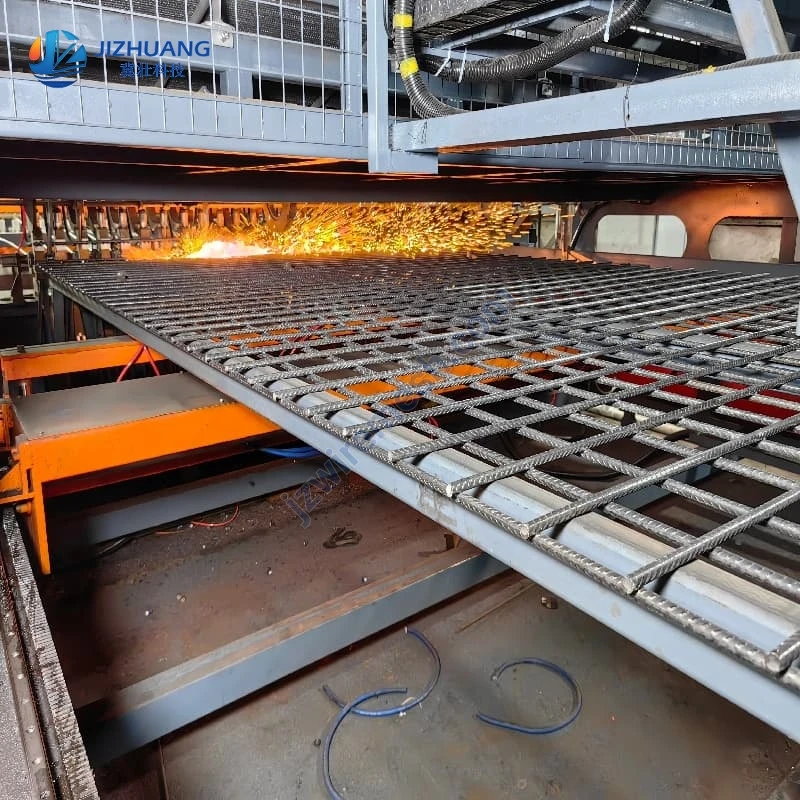

Raw Material Selection → Wire Drawing → Straightening → Welding → Cutting → Inspection → Packaging → Container Loading

Quality Control

Tensile strength testing

Weld shear strength testing

Dimensional tolerance inspection

Batch traceability system

Third-party inspection support (SGS / BV / Intertek)

We ensure every batch meets structural engineering safety requirements before shipment.

Applications

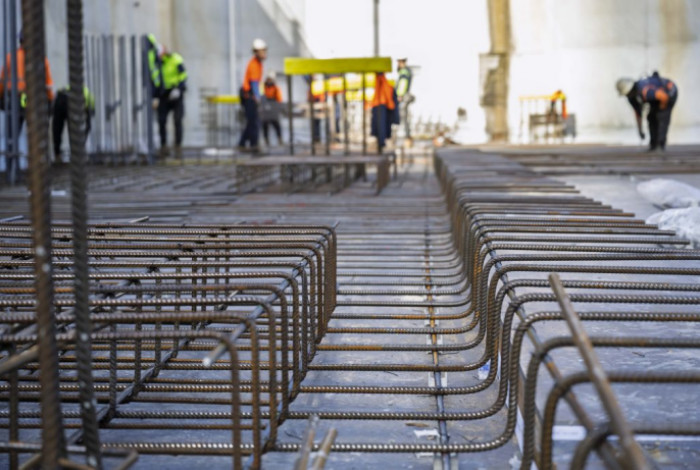

Residential & Commercial Construction

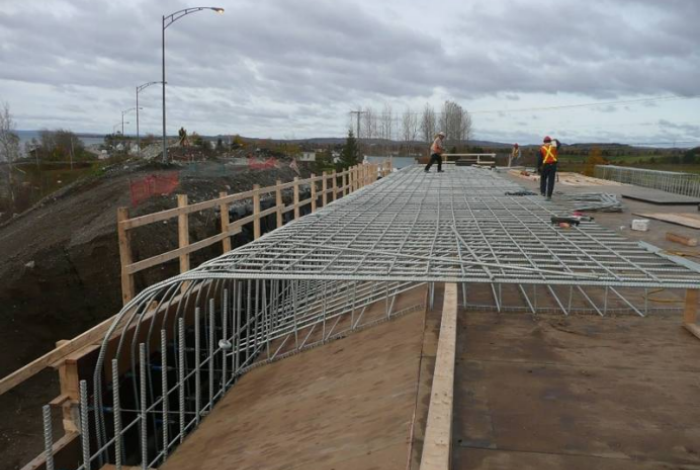

Infrastructure Projects

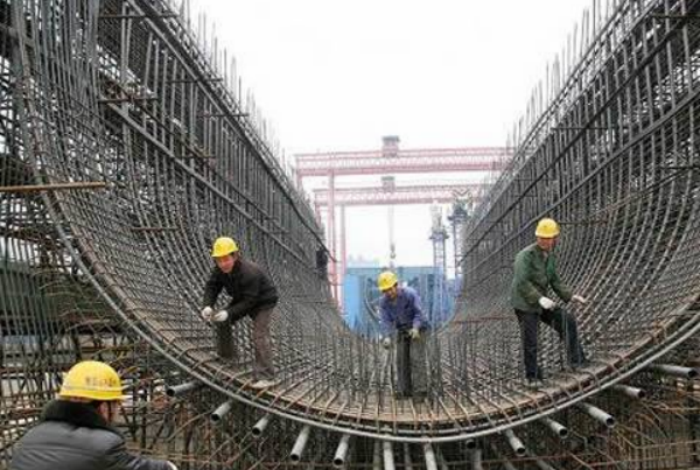

Industrial & Engineering Applications
Precast Concrete Production

Residential & Commercial Construction

• Concrete slab reinforcement
• Building foundations and walls
• Floor and pavement reinforcement

Why Choose Us

25+ Years Professional Manufacturer

Meets ASTM, BS, DIN & AS/NZS Standards

500+Tons Daily Production Capacity

30,000㎡ Manufacturing Workshop

Reliable Welding & Size Accuracy

Made-to-Order Reinforcing Mesh

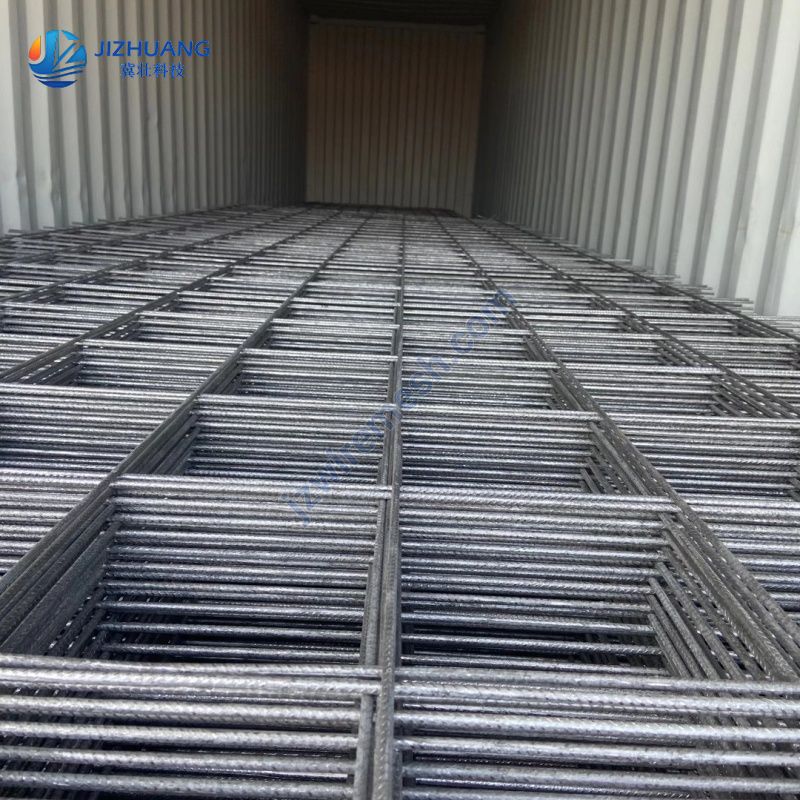

Secure Export Packaging for Reinforcing Mesh

Prevent Panel Deformation During Shipping

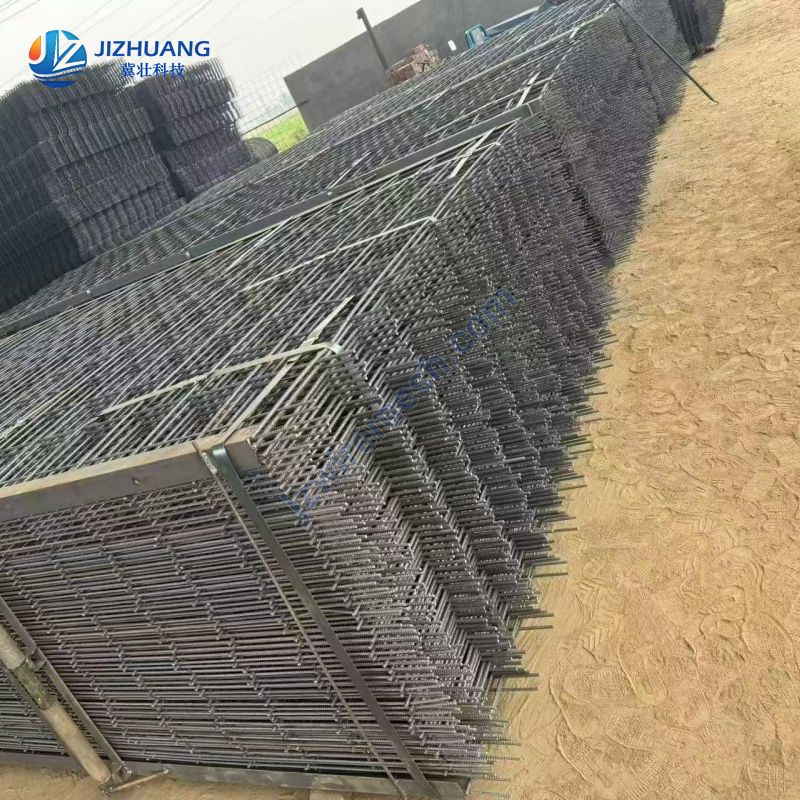

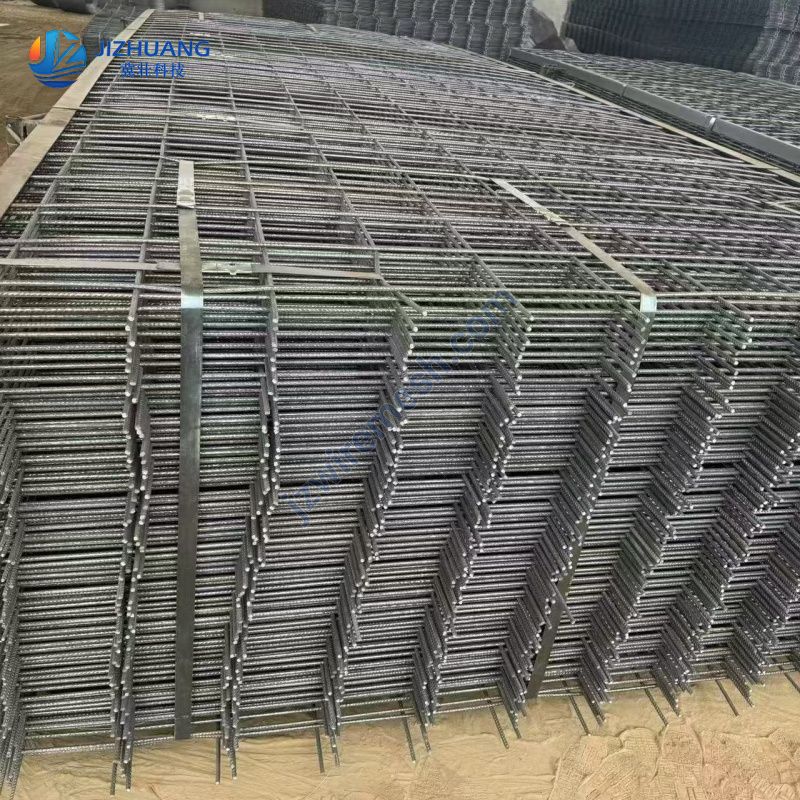

Heavy-duty steel strapping
Keep mesh panels flat and intact

Secure Bundling for Safe Transportation

Strong bundle fixing
Prevent movement and damage during transit

Clear Labels for Easy Identification

Mark specifications, sizes and quantities
Simplify receiving and site management

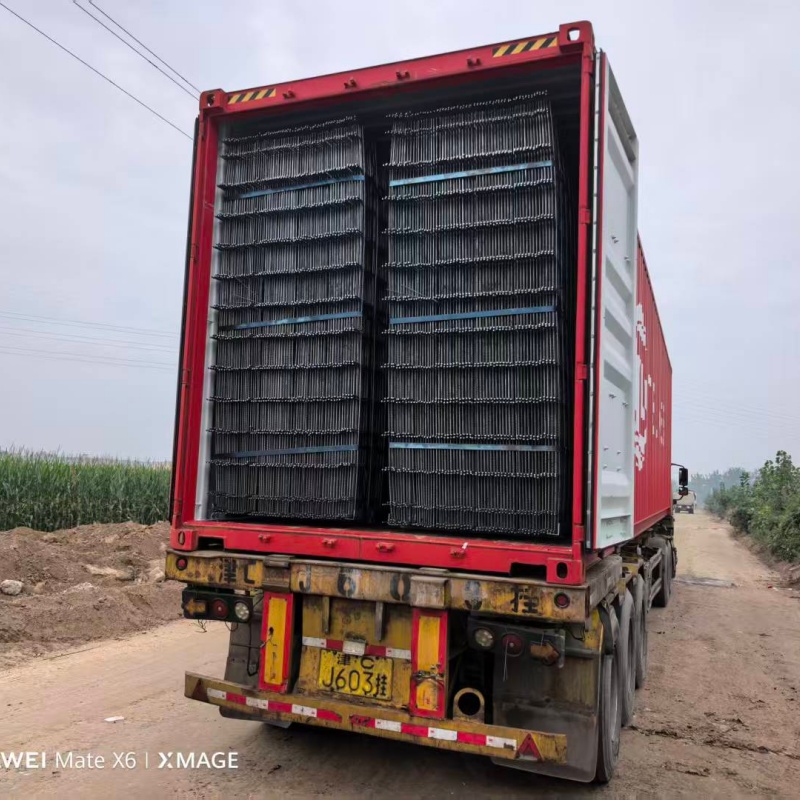

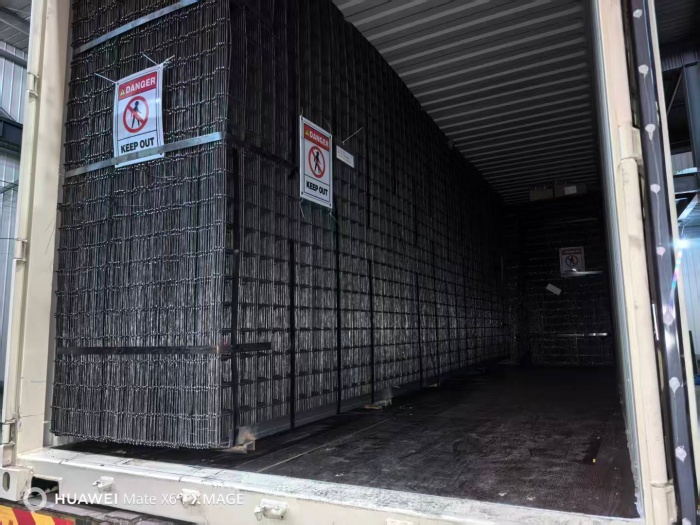

Optimized Container Loading

Maximize container space utilization
Reduce transportation costs

Easy Handling at Construction Sites

Forklift & crane-friendly packaging
Improve unloading efficiency

We support stable export supply to Europe, Middle East, Australia, Africa, and the Americas.

FAQ

Q: What types of steel reinforcement mesh do you supply?

A:
We supply various reinforcement mesh grades for different international markets, including:

A393 reinforcing mesh

A252 reinforcing mesh

A142 reinforcing mesh

SL72 mesh

SL82 mesh

SL92 mesh

SL102 mesh

B785 mesh

B1131 mesh

F72 and F82 mesh

We also support customized reinforcement mesh production according to project specifications.
Q: What standards can your reinforcement mesh meet?

A:
Our steel reinforcement mesh can be manufactured according to different international standards, including:

BS 4483 standard for UK reinforcement mesh

AS/NZS standards for Australian reinforcement mesh

ASTM standards for international construction projects

DIN standards for specific applications

Customers can provide drawings or specifications, and we can recommend suitable mesh grades.
Q: What sizes of rebar mesh can you produce?

A:
We manufacture reinforcement mesh with different:

Wire diameters

Mesh openings

Sheet dimensions

Panel sizes

Common specifications include:

Wire diameter: 2.5mm–6.5mm

Mesh spacing: 50×50mm–200×200mm

Custom sizes are available according to customer requirements.
Q: How do you ensure reinforcement mesh quality?

A:
We control quality throughout production, including:

Raw material inspection

Wire diameter checking

Mesh size inspection

Weld strength testing

Surface quality inspection

Final product inspection

Our factory operates with strict quality management procedures to ensure consistent performance.
Q: What is the production capacity of your reinforcing welded mesh factory?

A:
Hebei Jizhuang Tech has:

Over 20 years of manufacturing experience

30,000㎡ production facility

100+ production equipment

10 automated production lines

500+ tons daily production capacity

This allows us to support both standard orders and large-scale construction projects.
Q: Do you provide custom reinforcement mesh production?

A:
Yes. We provide customized reinforcement mesh solutions based on:

Mesh size

Wire diameter

Sheet dimensions

Steel grade

Project requirements

Customers can send drawings, specifications, or quantity requirements for quotation.
Q: How do you package reinforcement mesh for export?

A:
For overseas shipments, reinforcement mesh is packed according to international transportation requirements.

Our export packaging options include:

Strong steel strapping

Moisture-resistant wrapping

Reinforced bundles

Container loading optimization

This helps protect products during long-distance sea transportation.
Q: Can you supply bulk orders for distributors and contractors?

A:
Yes. We support bulk orders for:

Construction material distributors

Steel importers

Contractors

EPC companies

Infrastructure projects

With stable production capacity and export experience, we can provide continuous supply for long-term cooperation.
Q: Are SL72, SL82 and SL92 reinforcing mesh compliant with Australian standards?

A:
SL72, SL82 and SL92 mesh can be manufactured according to the applicable requirements of AS/NZS 4671, subject to the specified steel grade, dimensions and project requirements. We can provide product specifications, material certificates and test documentation for customer review. Buyers should confirm the required grade, certification and compliance documents before placing an order.
Q: What is the difference between A393, A252 and A142 mesh?

A:
A393, A252 and A142 reinforcing mesh typically have a 200 × 200 mm grid, but differ in wire diameter and steel content: A142 uses 6 mm wire with 142 mm² of steel per metre, A252 uses 8 mm wire with 252 mm²/m, and A393 uses 10 mm wire with 393 mm²/m; therefore, reinforcement capacity and sheet weight increase progressively from A142 to A393.
Q: What are the common applications of reinforcing mesh?

A:
Steel reinforcement mesh is widely used for:

Concrete Slabs

Provides reinforcement for industrial floors, warehouses, and commercial buildings.

Foundations

Improves concrete strength and helps control cracking.

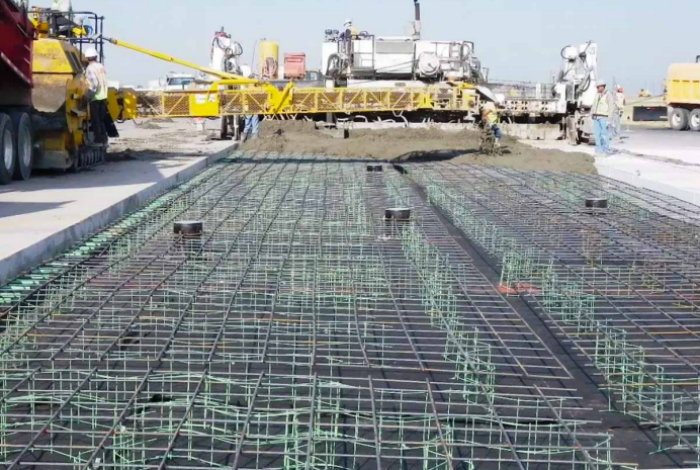

Roads and Pavements

Used in concrete roads, parking areas, and infrastructure projects.

Precast Concrete

Applied in concrete panels, pipes, and other precast products.

Need Reinforcing Mesh for Your Construction Project?

Get a customized solution based on your required standards, wire diameter, mesh size, and project specifications.

✅ ASTM / EN / BS / AS compliant production
✅ Custom sizes available
✅ Factory-direct pricing & technical support

Send us your drawings or specifications today — our engineers will provide a suitable reinforcing mesh solution for your project.
