High Security Perimeter Barrier for Military, EPC & Infrastructure Protection

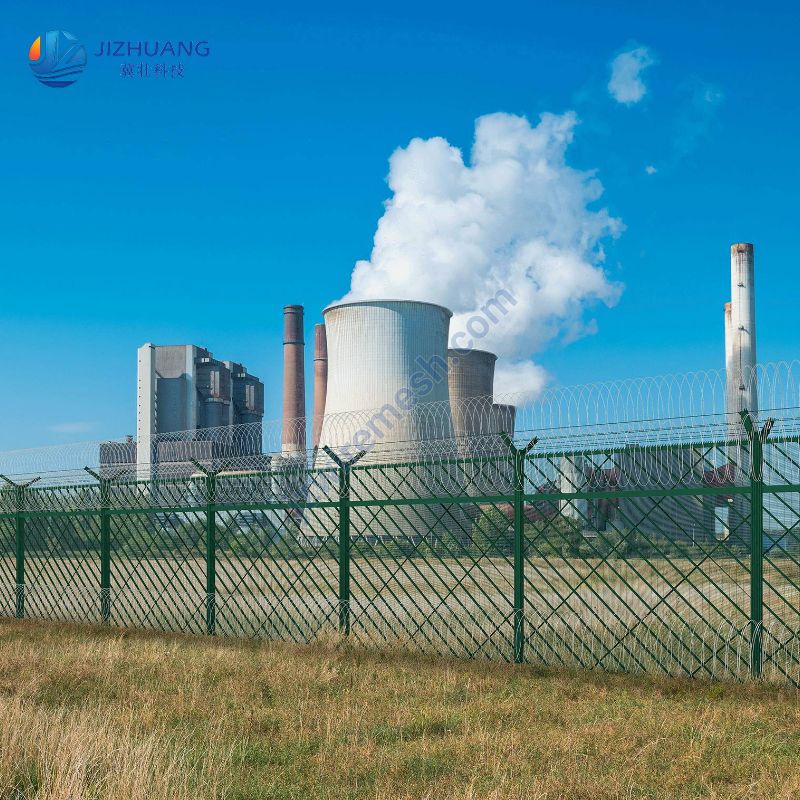

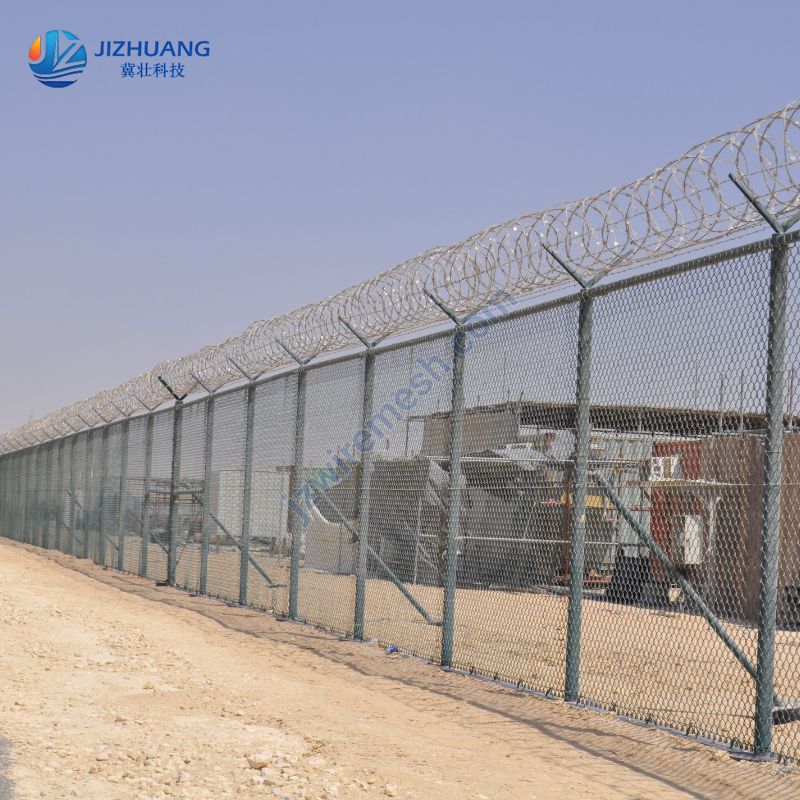

Razor Wire is a high-security fencing solution designed for perimeter protection, border security, military facilities, correctional facilities, and critical infrastructure applications. Manufactured using premium carbon steel and stainless steel materials, our razor wire is available in multiple surface treatments, including hot-dip galvanizing, E-coating, and powder coating, to ensure durability and corrosion resistance. With various blade profiles (BTO and CBT series), coil diameters from 450 mm to 1500 mm, and customizable roll specifications, we provide reliable razor wire solutions tailored to global security projects.. It is widely used in military defense, border security, EPC projects, and critical infrastructure protection as a reliable anti-intrusion barrier.
STABLE SUPPLY
30 Tons/Day Production Capacity
Supporting bulk orders with reliable delivery schedules.
QUALITY CONTROL
Strict Inspection Process
Ensuring consistent quality from raw materials to finished coils.
CUSTOM FABRICATION
Flexible Product Options
Customized materials, blade types, and coil specifications available.
EXPORT READY
Professional Packaging Solutions
Designed for safe international transportation.
TECHNICAL SUPPORT
Project-Based Solutions
Helping customers select the right razor wire for their applications.
VARIOUS SPECIFICATIONS AVAILABLE
Available in multiple wire diameters, barb spacing, and coil sizes for applications in farms, factories, and general perimeter protection.
| General Razor Wire Specifications | |
|
Item |
Specification |
|
Material |
Carbon Steel, Stainless Steel (304, 304L, 316, 316L, 430) |
|
Surface Treatment |
Hot-Dip Galvanized, Electro-Galvanized, E-Coating, Powder Coating |
|
Core Wire Diameter |
2.0–2.5 mm |
|

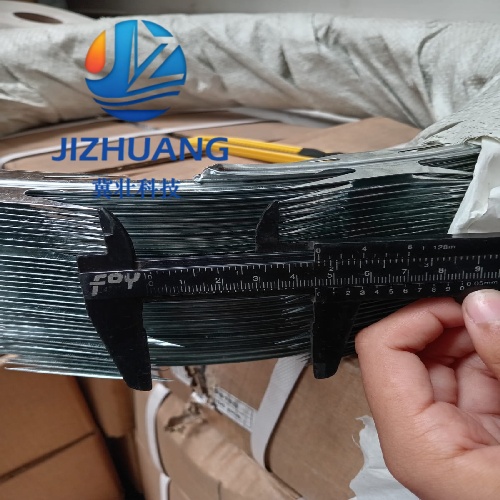

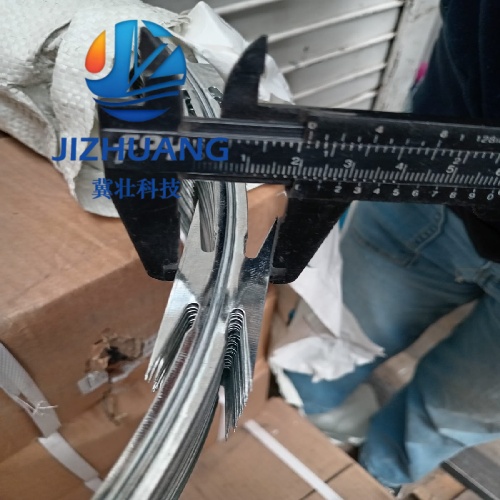

Blade Thickness |
0.5–0.6 mm (Customized available) |
|
Blade Length |
10–65 mm (According to blade type) |
|
Coil Diameter |
450–1500 mm |
|
Blade Type |
BTO Series & CBT Series |
|
Clips |
3–5 clips per coil |
|
Loops per Coil |
30–108 loops |
|
Stretch Length |
10–25 m/coil |
|
Roll Weight |
5–20 kg/coil |
|
Packing |
Waterproof paper, woven bag, carton or customized packing |
|
MOQ |
1 Ton |
|

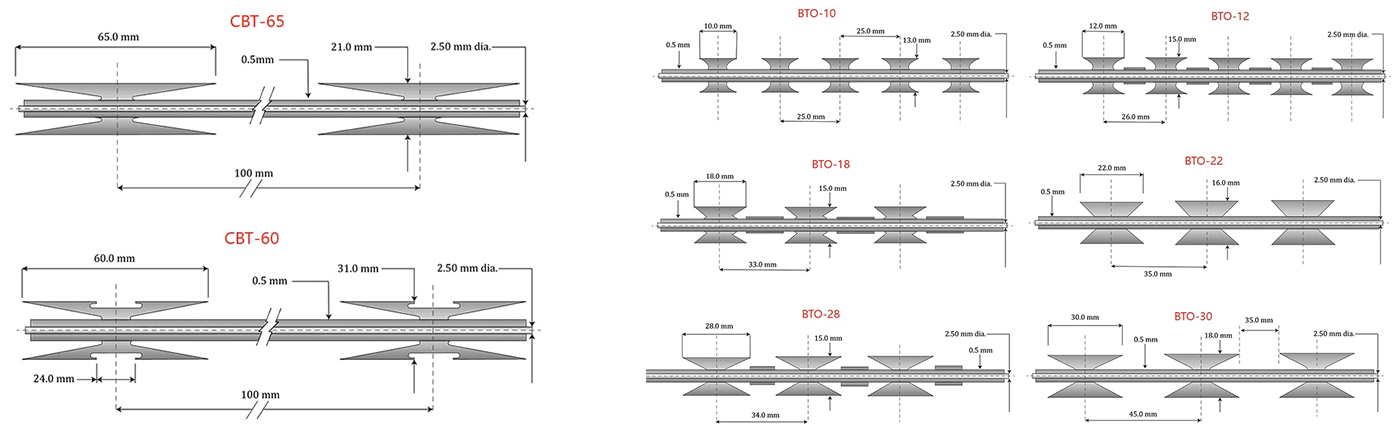

Type |
Blade Thickness (mm) |
Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
|
BTO-10 |
0.5 ±0.05 |
2.5 ±0.1 |
10 ±1 |
13 ±1 |
26 ±1 |
|
BTO-12 |
0.5 ±0.05 |
2.5 ±0.1 |
12 ±1 |
13 ±1 |
26 ±1 |
|
BTO-18 |
0.5 ±0.05 |
2.5 ±0.1 |
18 ±1 |
15 ±1 |
33 ±1 |
|
BTO-22 |
0.5 ±0.05 |
2.5 ±0.1 |
22 ±1 |
15 ±1 |
34 ±1 |
|
BTO-28 |
0.5 ±0.05 |
2.5 ±0.1 |
28 ±1 |
15 ±1 |
34 ±1 |
|
BTO-30 |
0.5 ±0.05 |
2.5 ±0.1 |
30 ±1 |
18 ±1 |
34 ±1 |
|
CBT-60 |
0.6 ±0.05 |
2.5 ±0.1 |
60 ±2 |
32 ±1 |
100 ±2 |
|
CBT-65 |
0.6 ±0.05 |
2.5 ±0.1 |
65 ±2 |
21 ±1 |
100 ±2 |
☞ BTO-22 is the most commonly used specification for general perimeter protection proje
|
Coil Diameter |
Loops |
Length per Coil |
Type |
|
450 mm |
33–56 |
7–9 m |
Single / Cross |
|
500 mm |
56 |
12–13 m |
Single / Cross |
|
700 mm |
56 |
13–14 m |
Single |
|
960 mm |
56 |
14–15 m |
Single |

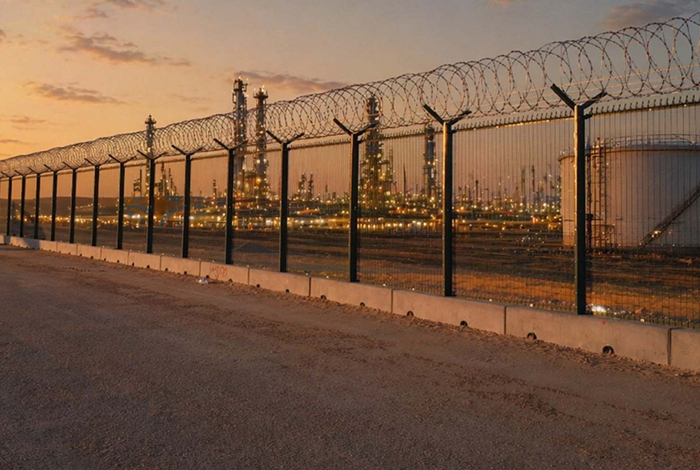

● Military & Defense → Cross Concertina / CBT Series
● Border Security → Concertina Coil System
● Industrial Facilities → Flat Wrap Type
● Airports & EPC Projects → Welded Razor Mesh
● Low-cost perimeter protection → Straight Line Type
☞ Our engineers provide free selection support based on your project drawings and security requirements.
We supply multiple razor wire systems designed for different security levels and installation environments.

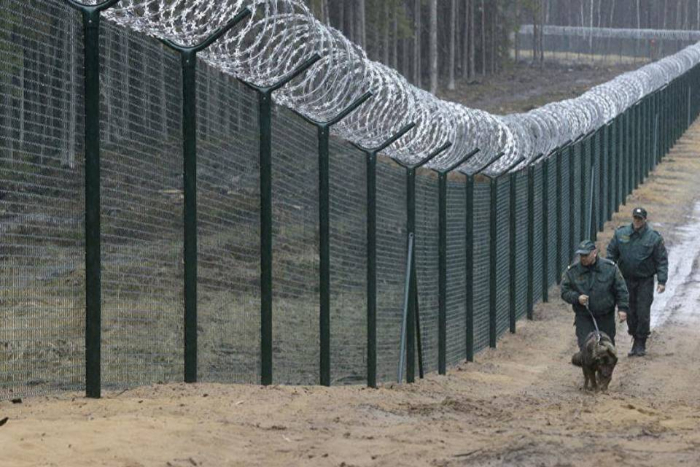

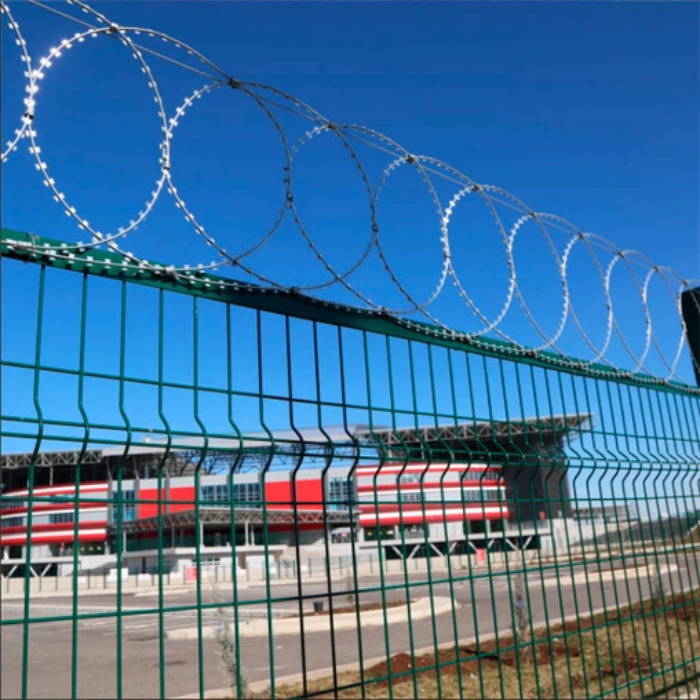

The most common high-security razor wire system formed into spiral coils.
● High-tensile spring structure
● Expands into a cylindrical barrier

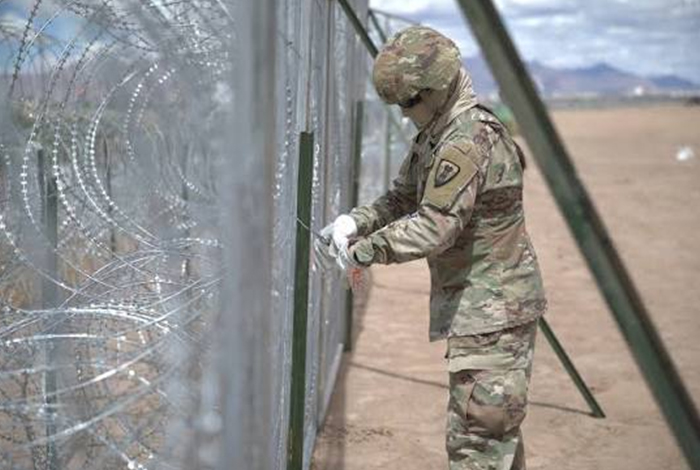

● Used in military and border defense systems
● High deterrence and anti-climb capability
☞ Typical use:
Military bases, border fences, high-security zones

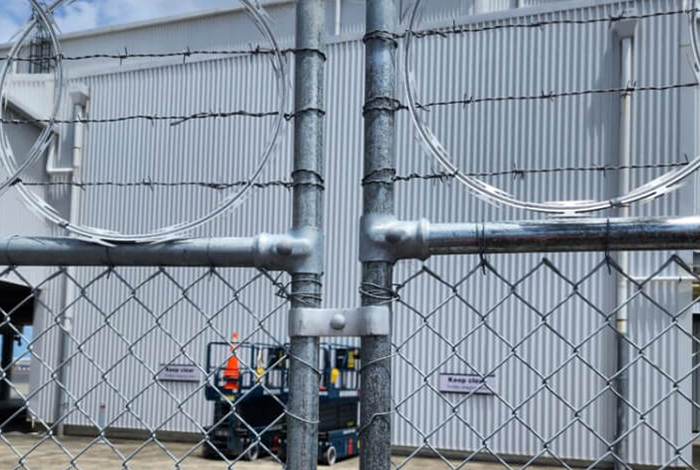

A compact razor wire type installed flat along fences or walls.
● Space-saving design
● Suitable for urban security environments
● Can be installed on existing fences or walls
● Lower visual intrusion than concertina coils
☞ Typical use:
Factories, warehouses, industrial facilities

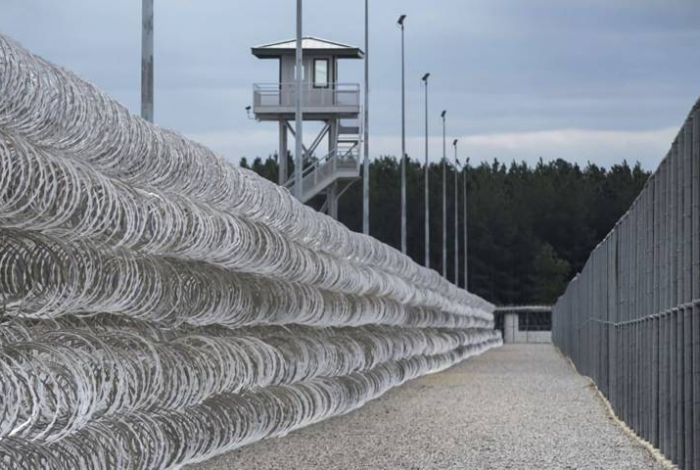

A double-coil crossed structure for maximum security.
● Two spiral coils intersecting
● Creates dense barrier network
● High resistance to cutting and climbing
● Military-grade protection level
☞ Typical use:
Borders, prisons, strategic infrastructure

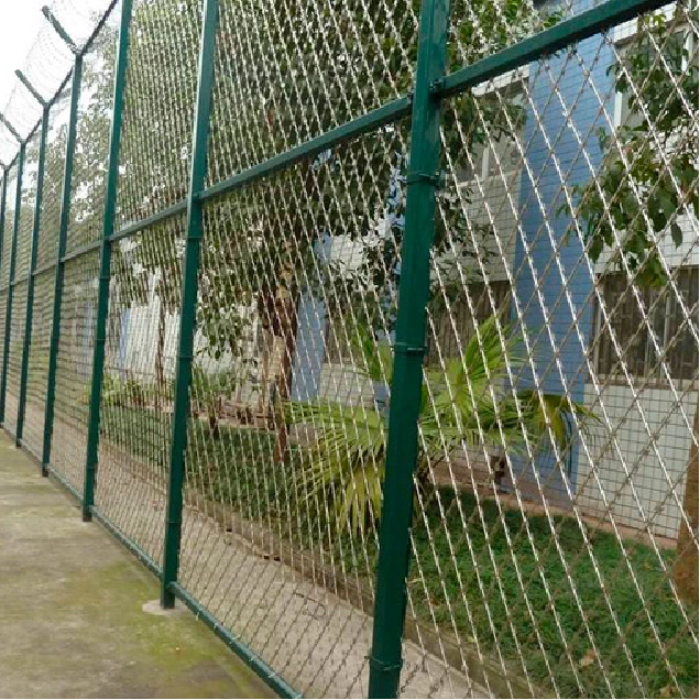

Rigid panel-type razor wire system integrated into fence structure.
● Welded steel mesh with razor blades
● Permanent perimeter fencing system
● High structural stability
● Used for long-term security installations
☞ Typical use:

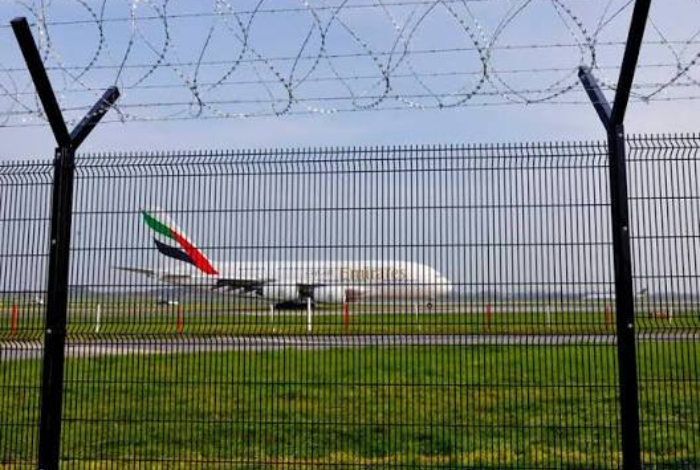

Airports, correctional facilities, critical infrastructure

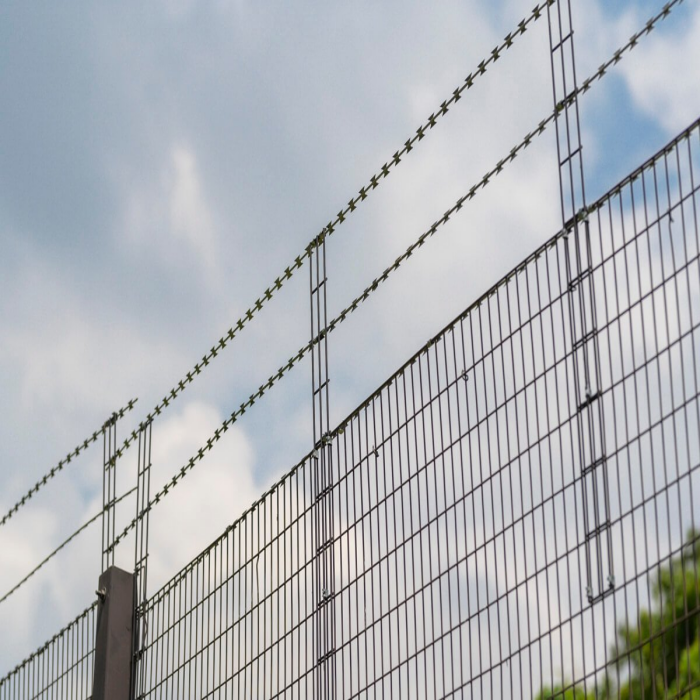

Linear type installed on top of fences or walls.
● Simple structure, easy installation
● Cost-effective security solution
● Acts as first-level intrusion deterrent
● Often combined with other fence systems
☞ Typical use:
Industrial fences, residential security, perimeter topping
01

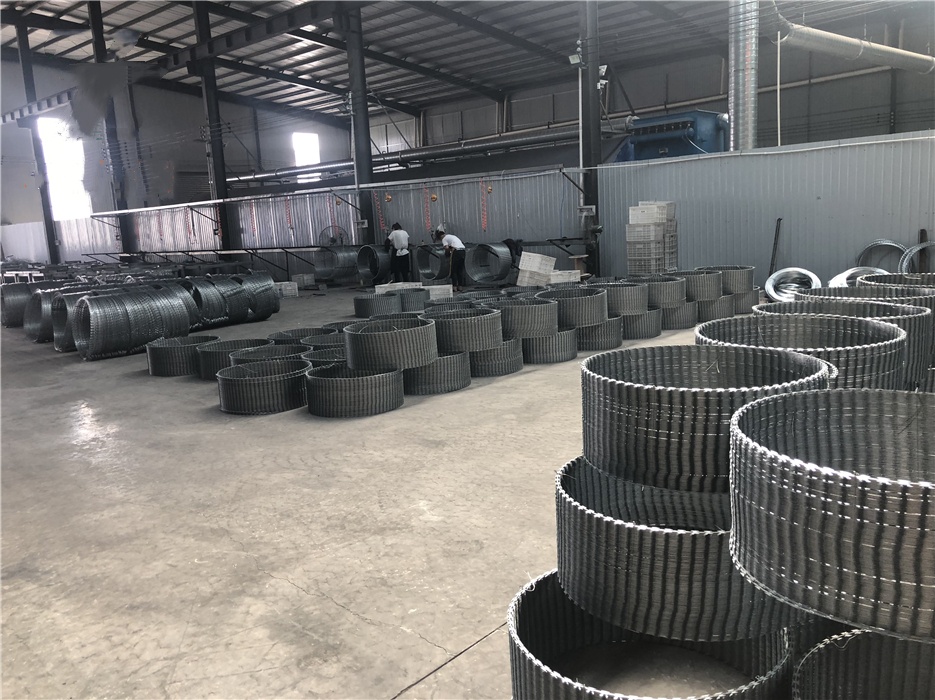

Factory-direct production with strict quality control
02
Custom engineering design solutions
03
OEM & ODM services
04
Fast production and global delivery
05
Experience in military, EPC, and infrastructure projects

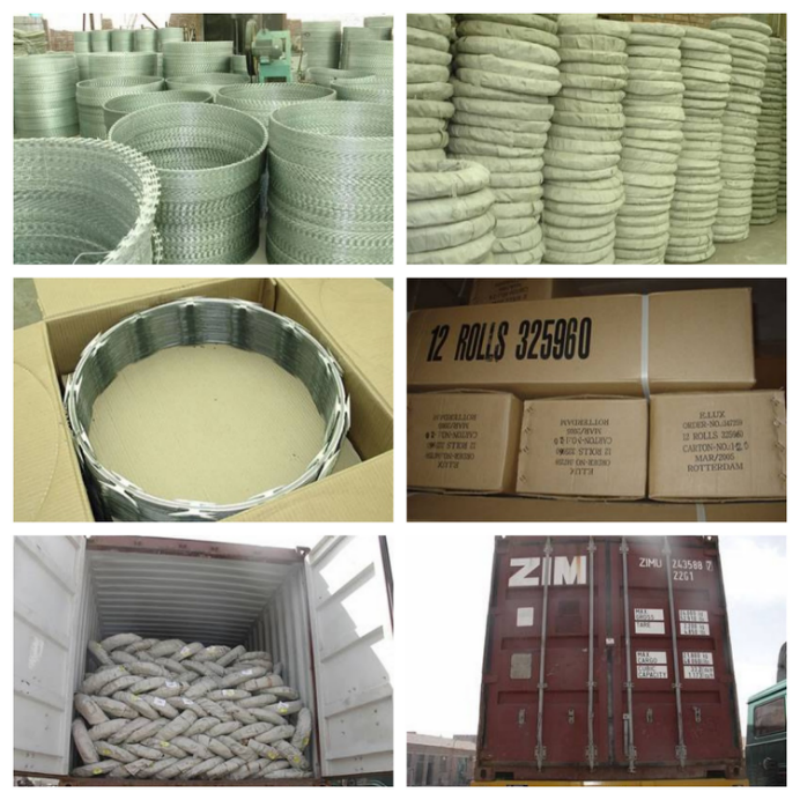

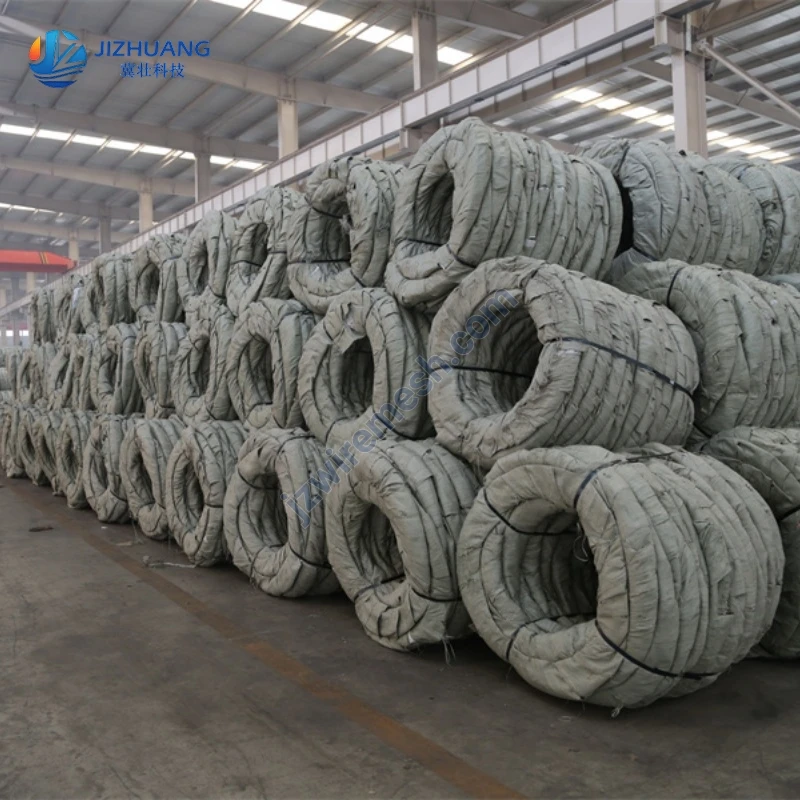

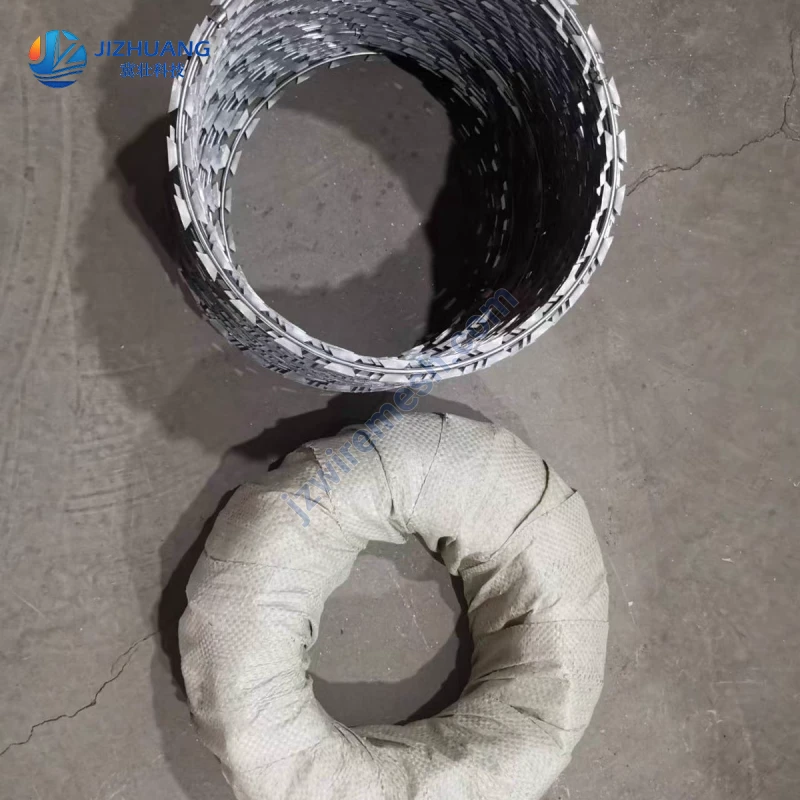

Bulk Packing: Waterproof paper + woven bag (most economical)
Compressed Bundles: Easy handling and transport
Carton Packing: Enhanced protection for high-end products
Pallet Packing: Recommended for EPC projects and large orders
Custom labels and markings
Project-based packaging solutions
Specification-based sorting
FAQ
Q: How do I choose the right razor wire type (BTO vs CBT)?
The selection depends on the required security level:
BTO series (BTO-10 / 12 / 18 / 22 / 28 / 30): Suitable for general perimeter security and commercial projects
CBT series (CBT-60 / 65): Recommended for high-security applications such as military bases, prisons, and critical infrastructure
☞ We can recommend the most suitable type based on your project requirements.
Q: What is the most commonly used specification?
Q: Can razor wire be installed on existing fences or walls?
Q: What is the typical lifespan of razor barbed wire?
Q: Is razor wire suitable for extreme environments?
Q: How is razor wire supplied and packaged for large projects?
Q: What is the delivery time for bulk orders?
Q: Can you provide customized specifications?
Request a Razor Barbed Wire Solution & Quotation
Looking for a reliable manufacturer for your security project?
Send us your requirements including:
● Project type
● Security level
● Installation environment
● Quantity or drawings
☞ Our engineering team will respond with a customized solution and quotation within 12 hours.
