Border Defense
Rapid Deployment Blast & Ballistic Protection Solution

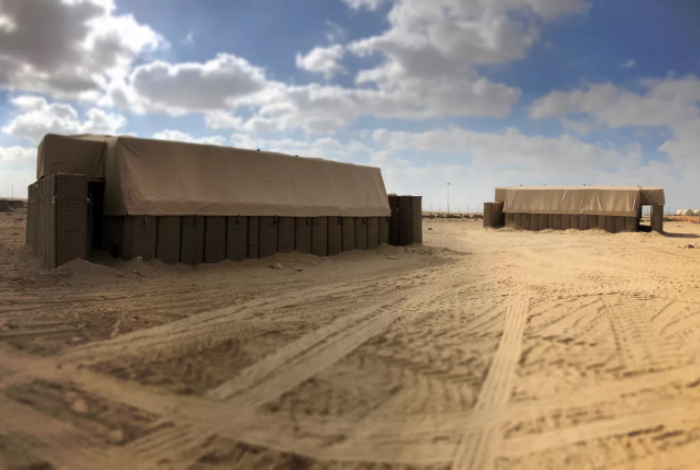

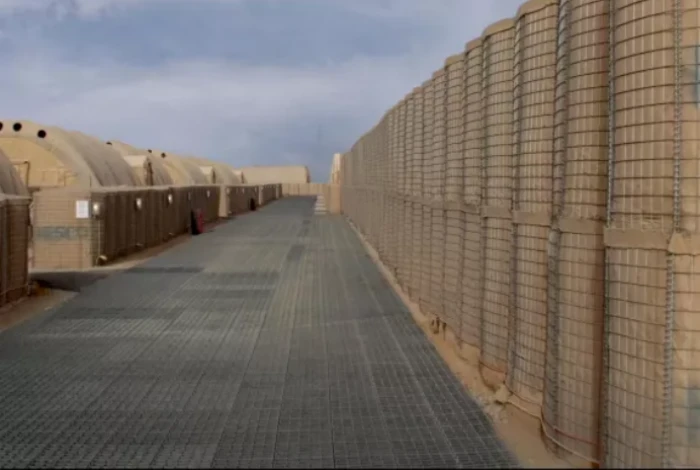

Military Barrier also named Hesco Barrier, Defensive Barrier, is a modular, rapidly deployable protective structure designed for blast resistance, ballistic protection, and vehicle impact control.It is constructed from high-strength steel mesh panels and durable geotextile lining, and filled with locally available materials such as sand, soil, or gravel to form a strong defensive barrier.
Our Hesco-style Barrier systems provide an efficient solution for military fortifications, border protection, blast protection, flood control, and critical infrastructure security, offering fast installation, excellent impact resistance, and reliable field performance.
DURABLE
All MIL Units are lined with a non-woven, UV-resistant geotextile with a five-year field life they can cope with harsh environments.
INCONSPICUOUS
Each unit is available in beige (as default) or green standard colours.
ADAPTABLE
The units are available in a range of heights and widths to provide protection against various threats including vehicles.
RECOVERABLE
The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
READILY TRANSPORTED
Units can be transported in ISO containers or flat-bed vehicles for a quick clean up.
|

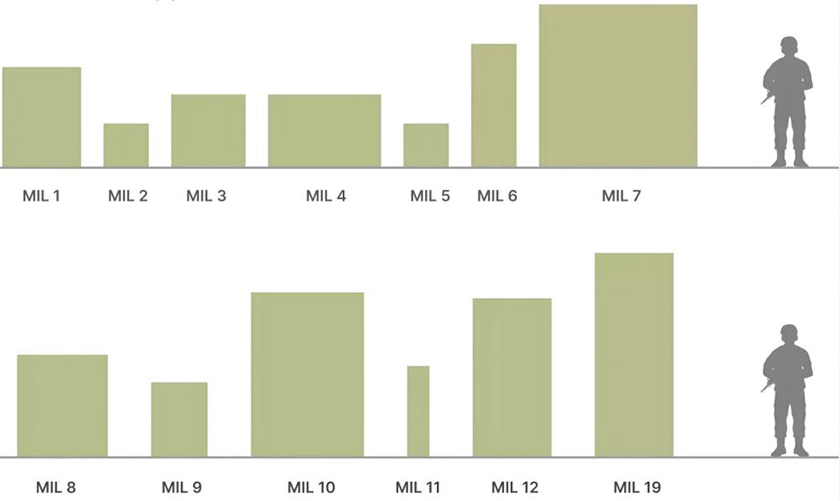

Model |
Height |
Width |
Length |
Cells |
|
MIL1 |
54" (1.37m) |
42" (1.06m) |
32'9" (10m) |
4+5 cells |
|
MIL2 |
24" (0.61m) |
24" (0.61m) |
4' (1.22m) |
2 cells |
|
MIL3 |
39" (1.00m) |
39" (1.00m) |
32'9" (10m) |
5+5 cells |
|
MIL4 |
39" (1.00m) |
60" (1.52m) |
32'9" (10m) |
5+5 cells |
|
MIL5 |
24" (0.61m) |
24" (0.61m) |
10' (3.05m) |
5 cells |
|
MIL6 |
66" (1.68m) |
24" (0.61m) |
10' (3.05m) |
5 cells |
|
MIL7 |
87" (2.21m) |
84" (2.13m) |
91' (27.74m) |
4+4+5 cells |
|
MIL8 |
54" (1.37m) |
48" (1.22m) |
32'9" (9.14m) |
4+5 cells |
|
MIL9 |
39" (1.00m) |
30" (0.76m) |
30' (9.14m) |
6+6 cells |
|
MIL10 |
87" (2.21m) |
60" (1.52m) |
100' (30.5m) |
5+5+5+5 cells |
|
MIL11 |
48" (1.22m) |
12" (0.30m) |
4' (1.22m) |
4 cells |
|
MIL12 |
84" (2.13m) |
42" (1.06m) |
108' (33m) |
5+5+5+5+5 cells |
|
MIL19 |
108" (2.74m) |
42" (1.06m) |
10'5" (3.18m) |
3 cells |
| General Technical Data | |
|---|---|
|
Item |
Specification |
|
Material |
Zinc-Aluminum coated steel mesh |
|
Liner |
Non-woven polypropylene geotextile |
|
Wire Diameter |
4.0–6.0mm (customizable) |
|
Mesh Opening |
50×50mm / 75×75mm / 100×100mm |
|
Fill Material |
Sand / Soil / Gravel |
|
Structure |
Modular pin-connected system |
|
Installation Time |
20 min per 10m section |
|
Packaging |
Flat-packed container loading |
Before shipment, each Military Barrier unit is inspected according to the required specifications to ensure accurate assembly and reliable field performance.
Our QC team checks key dimensions including:
Panel length, width, and height to ensure each barrier module matches the approved drawings and project requirements.
Wire mesh opening size and wire diameter to verify structural strength and prevent inconsistent protection performance between batches.
Steel frame dimensions and connection points to ensure panels can be connected quickly and securely during on-site installation.
Connector pin size and positioning to guarantee proper alignment between barrier units and reduce installation difficulties.
Geotextile liner size and fixing quality to ensure the barrier can be filled properly with soil, sand, or other materials.
Through strict dimensional inspection, we help contractors and project owners avoid:
On-site modification caused by size deviations
Installation delays caused by mismatched components
Additional labor costs and material waste
Quality issues during large-scale defense projects
With consistent production control and pre-shipment inspection, Hebei Jizhuang Technology provides reliable Military Barrier solutions for border security, military defense, and emergency protection projects.
Heavy Duty Welded Wire Mesh Panel
Secure Spiral Connection System
Reinforced Edge & Corner Design
Connection Types of Defensive Barrier

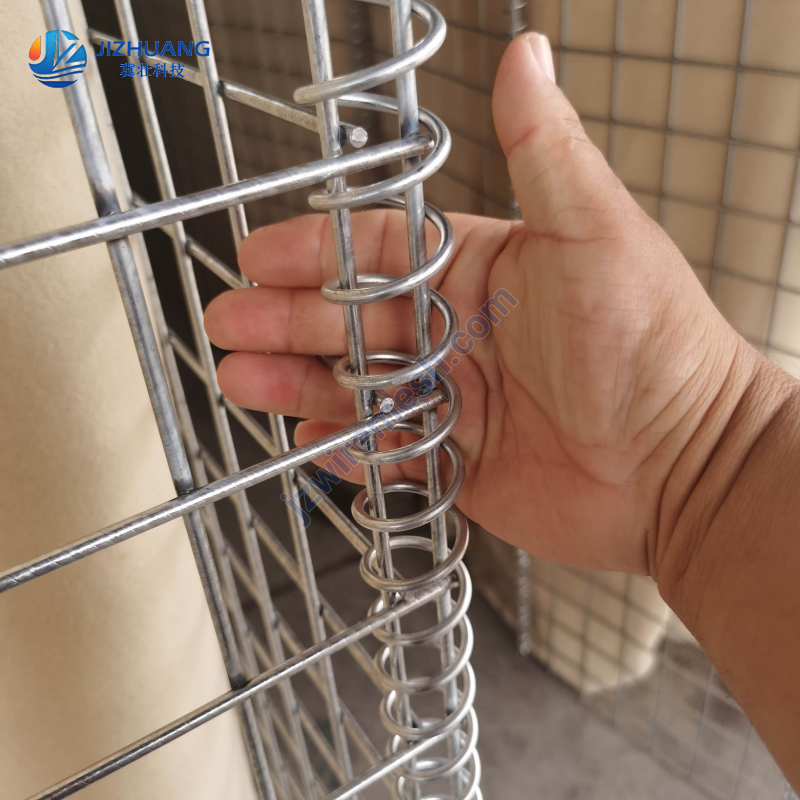

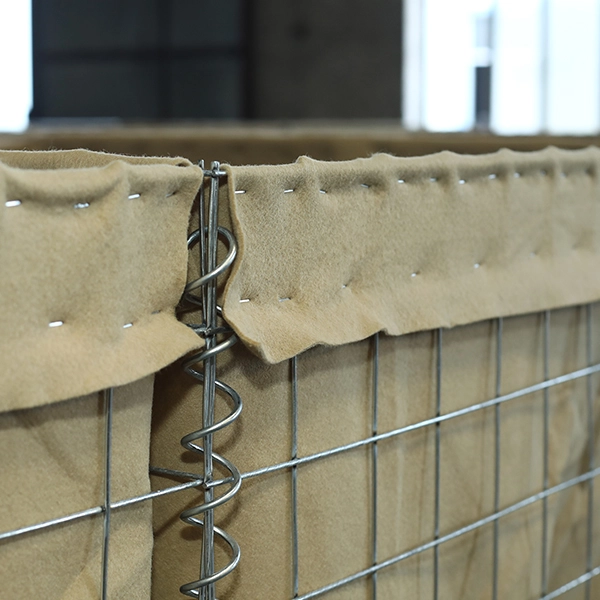

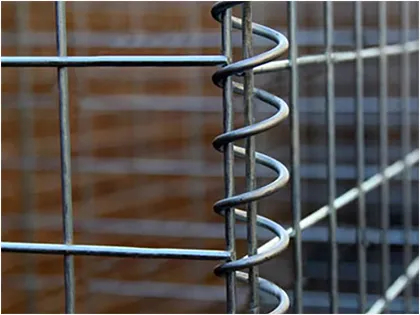

High-strength galvanized spiral wires are used to connect adjacent mesh panels, ensuring a stable and durable barrier structure.

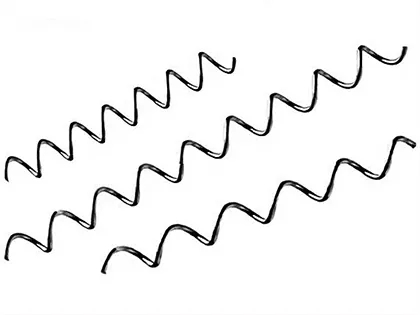

Heavy-duty connecting pins provide fast and secure assembly between barrier units, allowing flexible deployment for different protection requirements.
We manufacture Hesco style barrier systems for reliable protection and rapid deployment applications. In addition to standard specifications, we also provide flexible customization options to meet different project requirements.
Our customization capabilities include barrier dimensions, mesh specifications, wire diameter, surface treatment, geotextile liner options, connection accessories, and packaging solutions. Based on your application needs, our technical team can support project-specific configurations for military, border security, infrastructure protection, and emergency response applications.
With professional manufacturing experience and flexible production capabilities, we help global contractors, distributors, and project suppliers source reliable defensive barrier solutions.

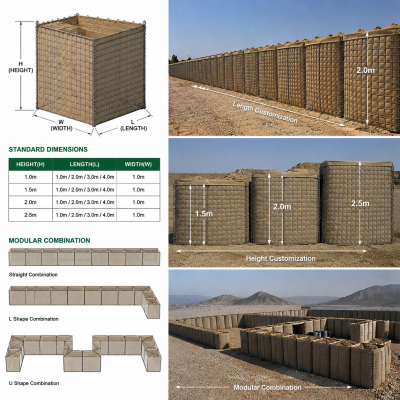

Barrier Dimensions & Configuration

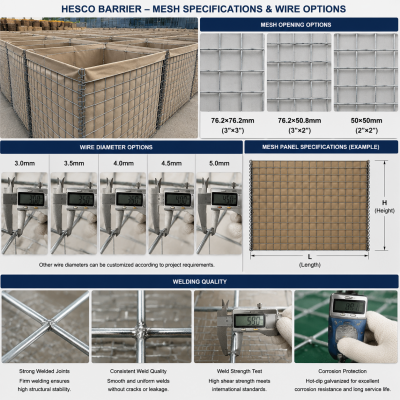

Mesh Specifications & Wire Options

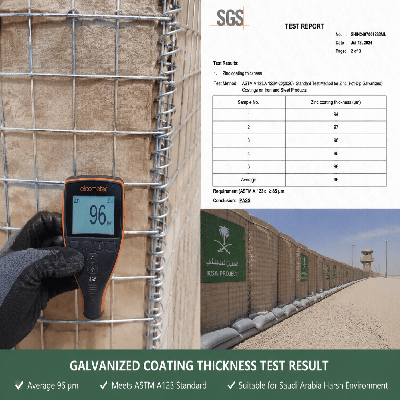

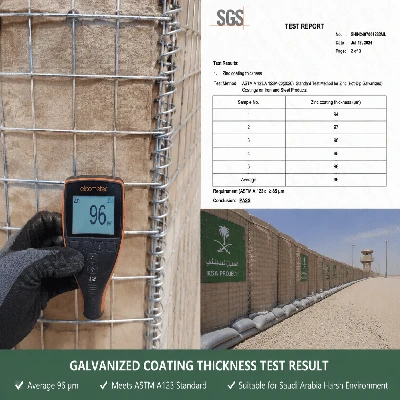

Surface Treatment & Corrosion Protection

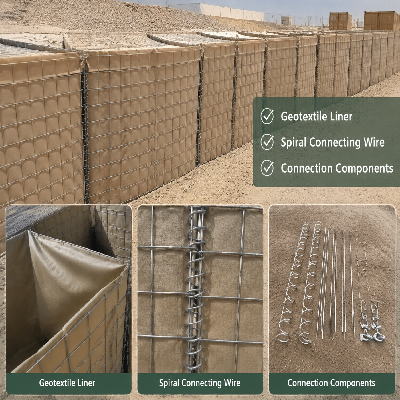

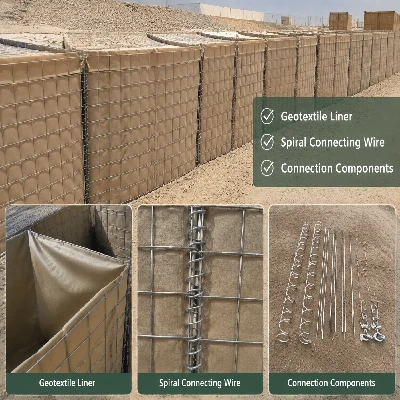

Geotextile Liner & Accessories
01
Professional manufacturer with large-scale production capacity
02
Stable quality control system
03
Custom sizes and MIL series configurations available
04
Fast production and global shipping support
05
Proven experience in engineering-grade protective systems
06
Cost-effective and scalable solutions

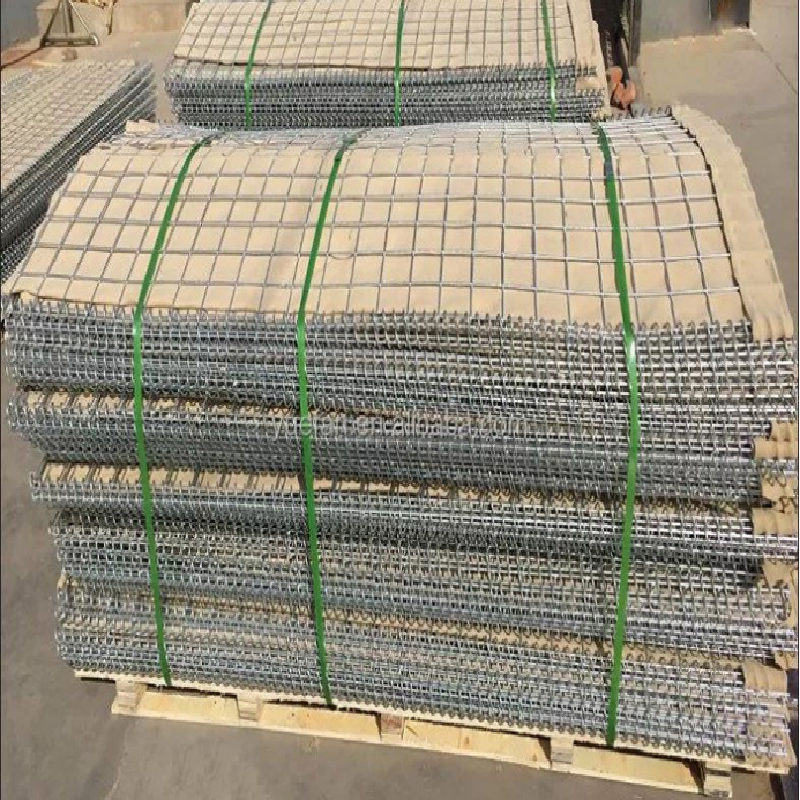

The barrier system is designed for efficient global shipping:
Foldable steel mesh units
Compact stacking for containers
Pre-attached or separately packed geotextile
Reinforced packaging for long-distance transport
FAQ
Q: What should I consider when purchasing HESCO Barrier for a military or security project?
When purchasing HESCO Barrier, customers should consider several key factors, including barrier dimensions, steel wire specifications, corrosion protection, project application, and supplier production capability.
The main points to evaluate include:
Barrier size and configuration: Confirm the required height, length, width, and cell structure according to the project design and installation environment.
Material quality: Check the wire diameter, mesh opening, welding strength, and surface treatment. Hot-dip galvanized steel wire is commonly used to improve corrosion resistance for long-term outdoor deployment.
Protection requirements: Select a suitable barrier design based on the intended application, such as military bases, border security, checkpoints, or critical infrastructure protection.
Supplier capability: Verify whether the manufacturer can provide consistent quality, customized production, inspection reports, and reliable delivery for large-scale projects.
Hebei Jizhuang Technology provides customized HESCO Barrier solutions with factory-direct manufacturing, strict quality control, and export experience to support defense contractors, EPC companies, and government projects worldwide.
Q: What is a Military Barrier and what applications can it be used for?
Q: What materials are used for your Military Barrier?
Q: Can you customize Military Barrier dimensions according to project requirements?
Q: How do you ensure the quality of Military Barrier before shipment?
Q: What is the production capacity of your Military Barrier factory?
Q: How is the Military Barrier packed for international shipping?
Q: Is Military Barrier easy to install on-site?
Q: Why should customers choose Hebei Jizhuang Technology as their Military Barrier supplier?
