Durable Zinc Coated Steel Wire for Construction, Fencing & Industrial Applications

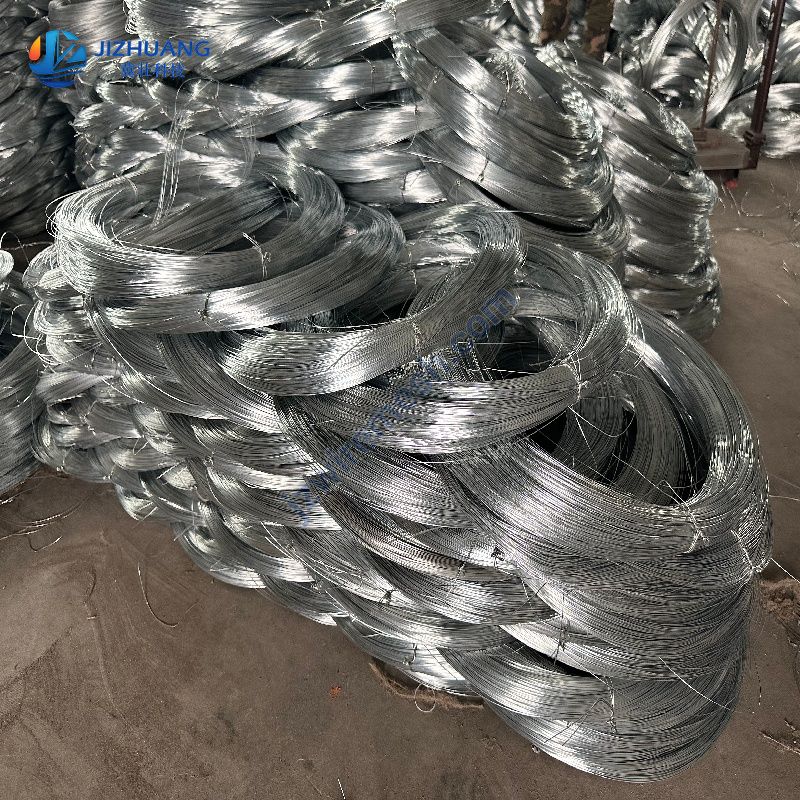

Galvanized wire is a fundamental metal product used in fencing, construction, agricultural binding, mesh fabrication, and countless industrial applications. By applying a protective zinc coating to steel wire, we significantly improve resistance to rust, extend service life, and enhance performance under challenging environmental conditions. Our product range includes both electro-galvanized wire and hot-dip galvanized wire, tailored to suit different performance requirements, budgets, and project specifications.
Excellent Corrosion Resistance
● Protective zinc coating prevents rust and corrosion
● Suitable for outdoor and long-term applications
● Performs well in humid and challenging environments
High Tensile Strength & Reliable Performance
● Manufactured from high-quality steel wire rods
● Provides stable strength during installation and use
● Suitable for demanding industrial and construction applications
Uniform Zinc Coating
● Even zinc distribution across the wire surface
● Strong coating adhesion
● Reduces peeling, cracking, and premature corrosion
Flexible and Easy Processing
● Easy to cut, bend, twist, and fabricate
● Suitable for different manufacturing requirements
● Improves installation efficiency
Long Service Life & Low Maintenance
● Better durability compared with untreated steel wire
● Reduces replacement frequency
● Minimizes maintenance costs over the product lifespan

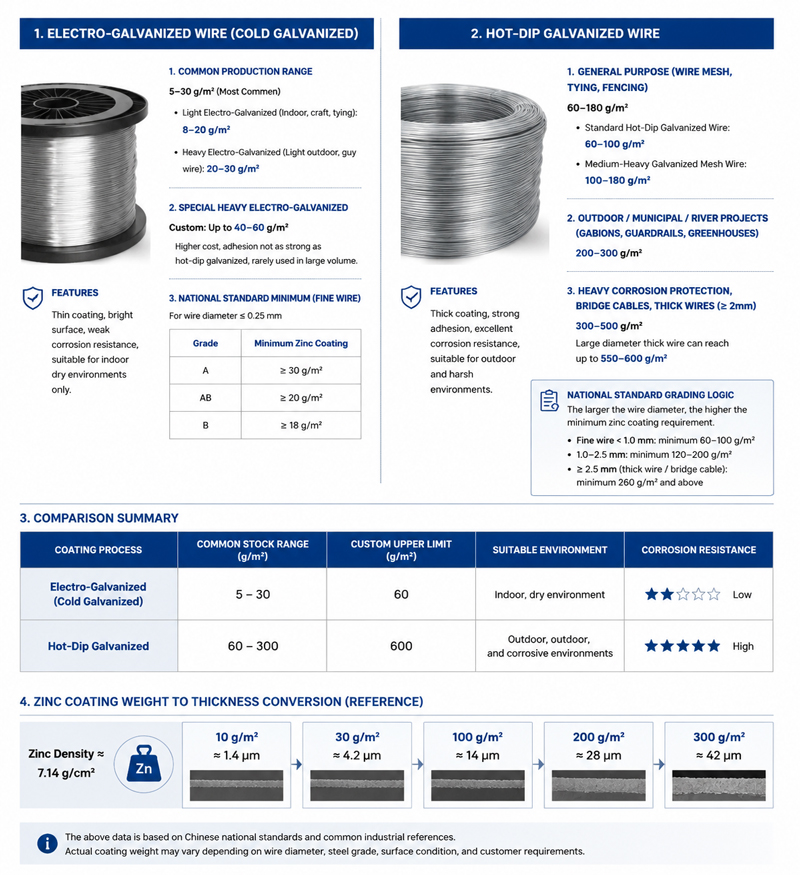

Type Of Galvanized Wire We Offer
Electro-Galvanized Wire (EG Wire)
Our electro-galvanized wire is coated with zinc using a controlled electrical plating process. This method ensures an even, neat zinc layer with a refined finish — perfect for applications where surface quality and appearance matter.
Hot-Dip Galvanized Wire (HDG Wire)
Hot-dip galvanized wire is immersed in liquefied zinc, creating a thicker coating that bonds metallurgically with the steel surface. This produces a protective layer that is more robust and longer-lasting in tough conditions.
Galvanized Wire Specifications
|
Gauge |
SWG (Inch/mm) |
BWG (Inch/mm) |
AWG (Inch/mm) |
|
8 |
0.16 / 4.046 |
0.165 / 4.191 |
0.1285 / 3.264 |
|
9 |
0.144 / 3.658 |
0.148 / 3.759 |
0.1144 / 2.906 |
|
10 |
0.128 / 3.215 |
0.134 / 3.404 |
0.1019 / 2.588 |
|
11 |
0.116 / 2.946 |
0.12 / 3.048 |
0.0907 / 2.305 |
|
12 |
0.104 / 2.642 |
0.109 / 2.769 |
0.0808 / 2.053 |
|
13 |
0.092 / 2.337 |
0.095 / 2.413 |
0.072 / 1.828 |
|
14 |
0.08 / 2.032 |
0.083 / 2.108 |
0.0641 / 1.628 |
|
15 |
0.072 / 1.829 |
0.072 / 1.829 |
0.0571 / 1.45 |
|
16 |
0.064 / 1.626 |
0.065 / 1.651 |
0.0508 / 1.291 |
|
17 |
0.056 / 1.422 |
0.058 / 1.473 |
0.0453 / 1.15 |
Custom wire diameter, zinc coating weight, coil size, and packaging are available according to project requirements.
|
Gauge |
SWG (Inch/mm) |
BWG (Inch/mm) |
AWG (Inch/mm) |
|
18 |
0.048 / 1.219 |
0.049 / 1.245 |
0.0403 / 1.024 |
|
19 |
0.04 / 1.016 |
0.042 / 1.067 |
0.0359 / 0.912 |
|
20 |
0.036 / 0.914 |
0.035 / 0.839 |
0.032 / 0.812 |
|
21 |
0.032 / 0.813 |
0.032 / 0.831 |
0.0285 / 0.723 |
|
22 |
0.028 / 0.711 |
0.028 / 0.711 |
0.02535 / 0.644 |
|
23 |
0.024 / 0.61 |
0.025 / 0.635 |
0.02256 / 0.573 |
|
24 |
0.022 / 0.559 |
0.022 / 0.559 |
0.02011 / 0.51 |
|
25 |
0.02 / 0.508 |
0.02 / 0.508 |
0.01791 / 0.455 |
|
26 |
0.018 / 0.457 |
0.018 / 0.457 |
0.01594 / 0.405 |
Procurement Recommendation
For outdoor projects requiring long-term durability, such as:
Security fencing
Agricultural fencing
Gabion structures
Coastal or high-humidity environments
Infrastructure projects
we recommend Hot Dipped Galvanized Wire due to its thicker zinc coating and superior corrosion resistance.
For general-purpose applications with moderate exposure conditions, such as:
Indoor wire processing
Light-duty mesh production
Temporary applications
Electro Galvanized Wire provides an economical and practical solution.
Raw Material Inspection
We inspect:
Steel wire rod quality
Chemical composition
Mechanical properties

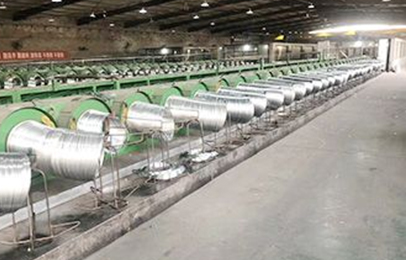

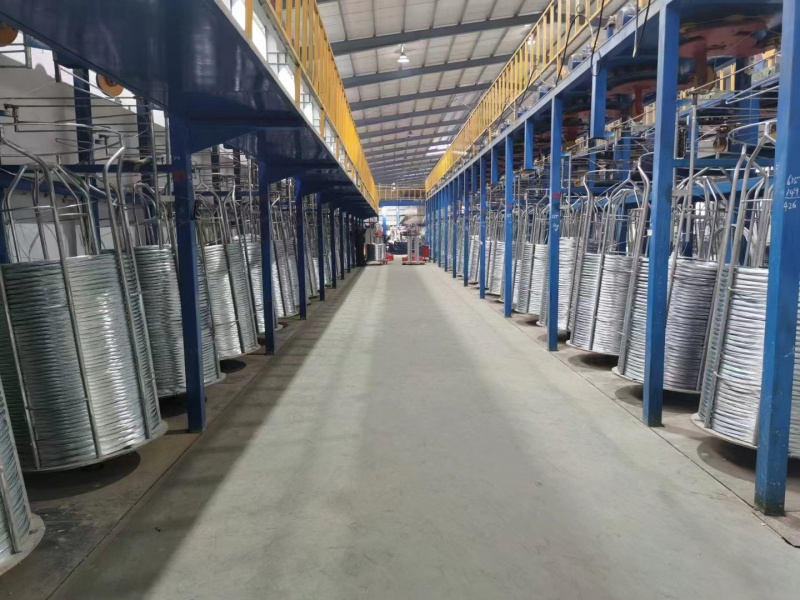

Production Process Control
During manufacturing, we monitor:

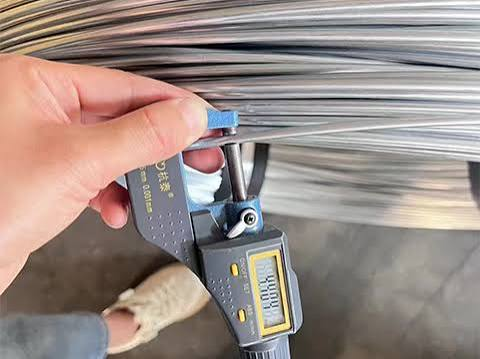

Wire diameter accuracy
Tensile strength
Surface quality
Zinc coating uniformity
Zinc Coating Testing
Inspection includes:
Zinc coating weight testing
Coating adhesion testing
Surface appearance inspection
Final Inspection Before Shipment
Each production batch is checked for:
✓ Diameter tolerance
✓ Coil weight
✓ Packaging condition
✓ Surface quality
✓ Customer specifications
Quality reports and third-party inspection services are available according to customer requirements.
01
Standard Packing

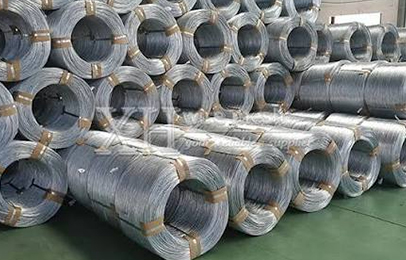

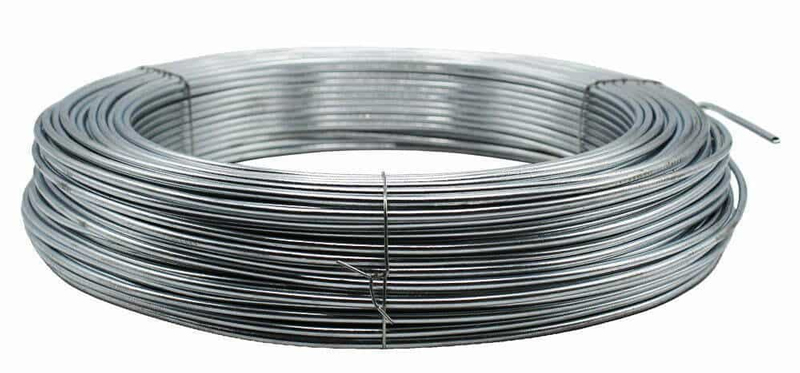

Coils: Wire is wound into uniform coils, suitable for both electro-galvanized and hot-dip galvanized wire.
Inner Layer: Plastic film or moisture-proof paper to prevent corrosion and damage.

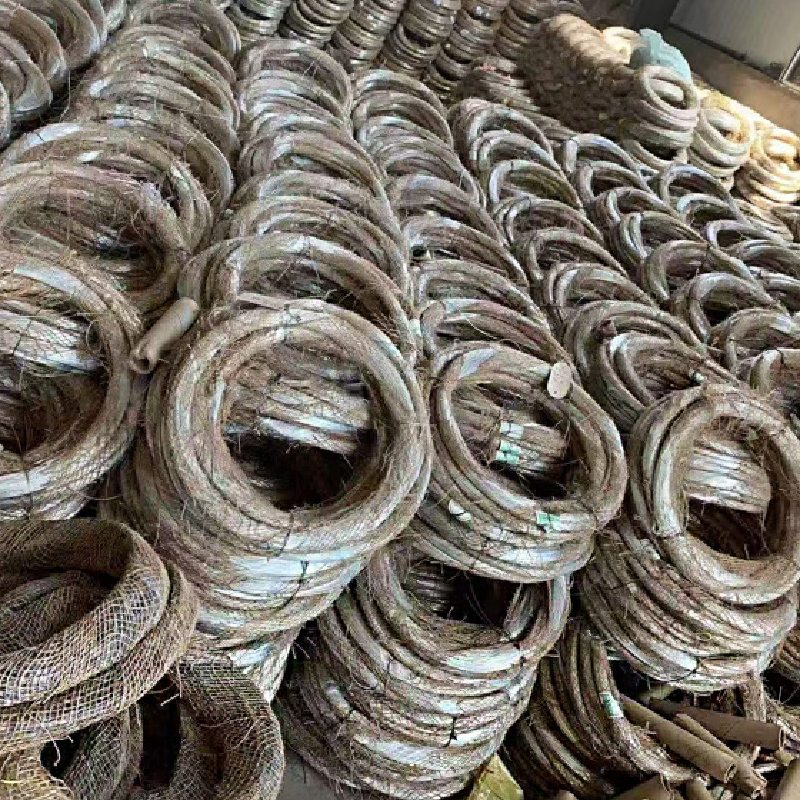

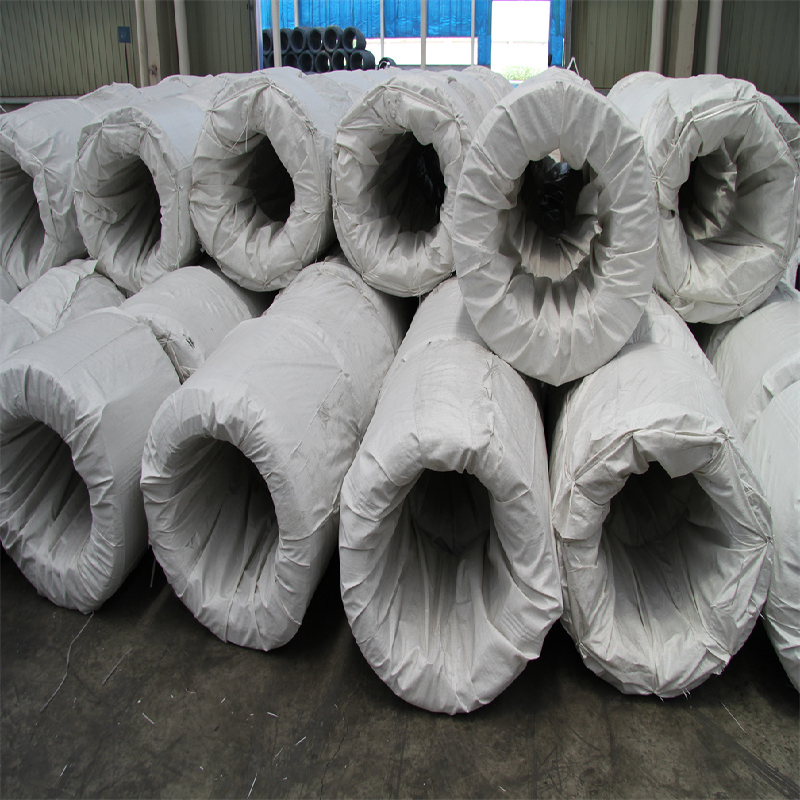

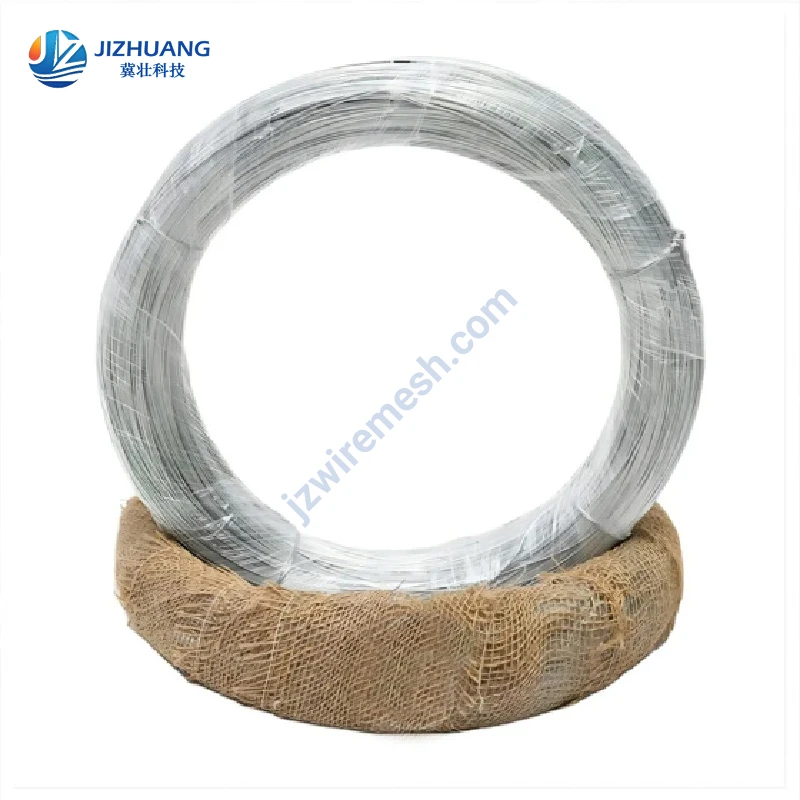

Outer Layer: Hessian cloth, kraft paper, or woven bag for added protection during transport.
Wire Diameter Range: From 0.71 mm to 4.06 mm (SWG 22–8).
02
Customized Packing
Palletized Coils: Multiple coils stacked on pallets and tightly strapped for stability.
Banding & Wrapping: Each coil can be banded with steel/plastic straps and wrapped with shrink film for extra protection.
Boxes or Cartons: Suitable for smaller gauges or export orders requiring organized packing.
Labeling: Customized labels including gauge, length, weight, and customer details.
03
Bulk Shipping Options

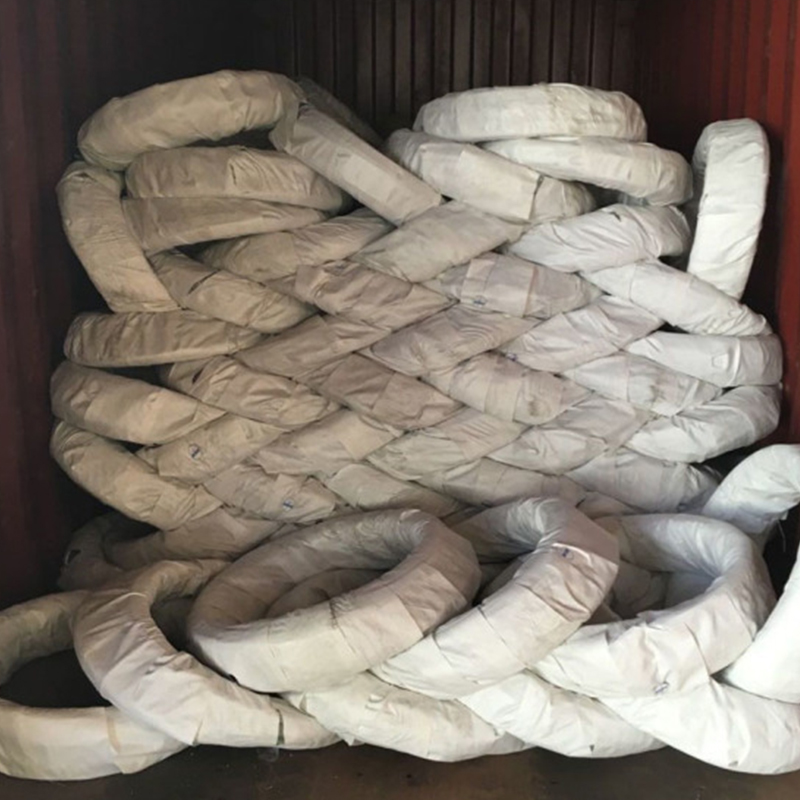

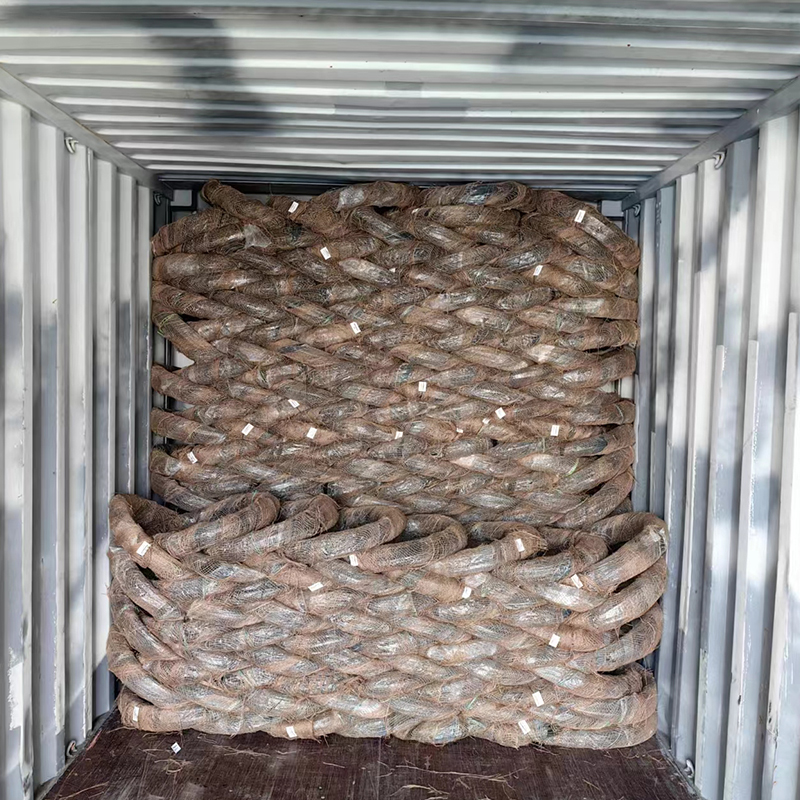

Containerized: Large shipments are loaded into standard containers, secured to prevent movement.
Bulk Bundles: Heavy-duty wire can be bundled together for construction or agricultural projects.
Export Ready: All packaging meets international shipping standards and ensures wire quality remains intact during transit.
Manufacturing Expertise: Advanced galvanizing systems with strict quality control
Global Export Experience: Reliable supply for international buyers
Custom Solutions: Tailored wire diameters and zinc coatings
Competitive Pricing & Supply Stability: Ideal for large volume projects
FAQ
Q: What is galvanized wire used for?
Galvanized wire is widely used for fencing, construction binding, gabion mesh production, agriculture, and industrial applications due to its excellent corrosion resistance and durability.
Q: What is the difference between hot dipped galvanized wire and electro galvanized wire?
Q: How long does galvanized wire last outdoors?
Q: Can you provide customized galvanized wire?
Q: Do you provide samples before bulk orders?
Request A Quote For Galvanized Wire
Looking for a reliable galvanized wire manufacturer for your fencing, construction, or industrial project?
Hebei Jizhuang Technology supplies high-quality galvanized wire with customized specifications, strict quality control, and professional export support.
Contact us today to discuss your requirements and receive a customized quotation.
