Border Defense
Mobile Concertina Wire Deployment System for Military, Border Security & Emergency Perimeter Protection

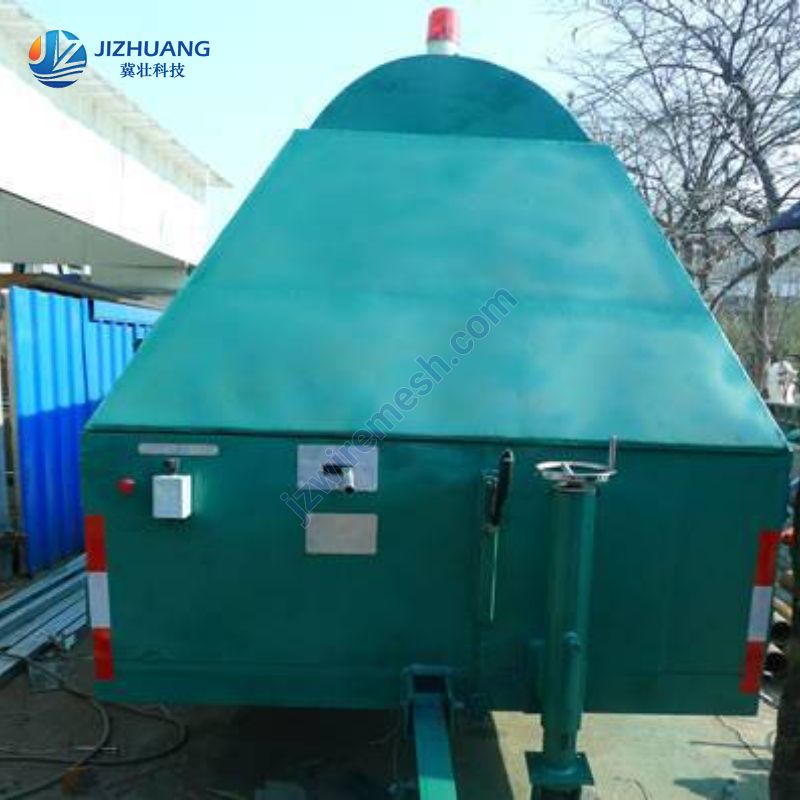

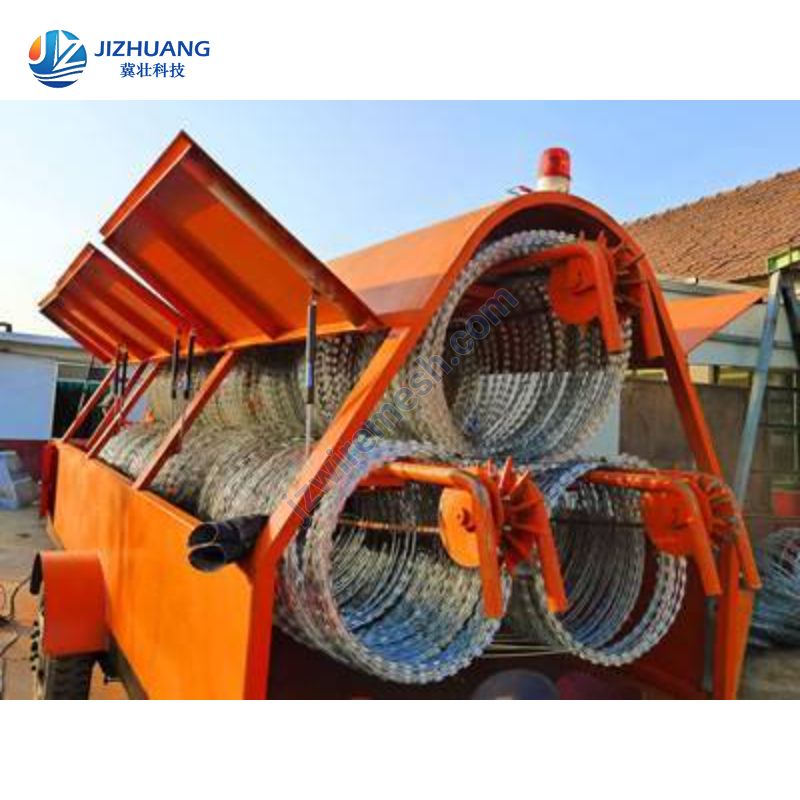

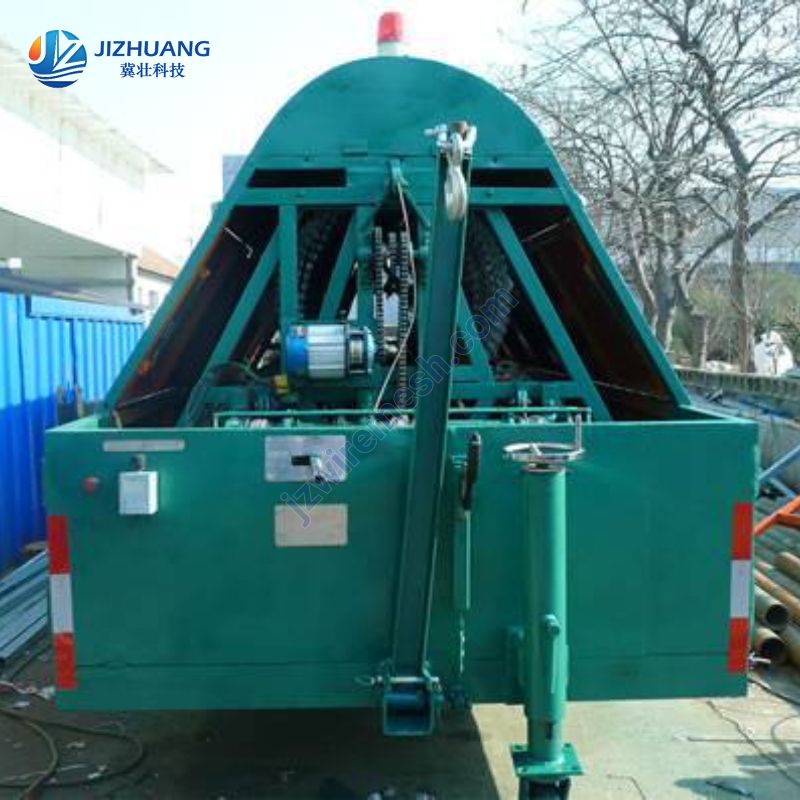

The Razor Wire Trailer is a rapid deployment mobile barrier system designed for fast installation and retrieval of concertina razor wire in emergency and high-security environments. It enables security forces and contractors to establish a full perimeter protection line within minutes, significantly improving response efficiency in critical situations.
1. Rapid Deployment Capability
Full perimeter deployment can be completed within 3–5 minutes, significantly reducing response time in emergency operations.
2. Minimal Workforce Requirement
Only 2–3 operators are required, reducing manpower dependency in field conditions.

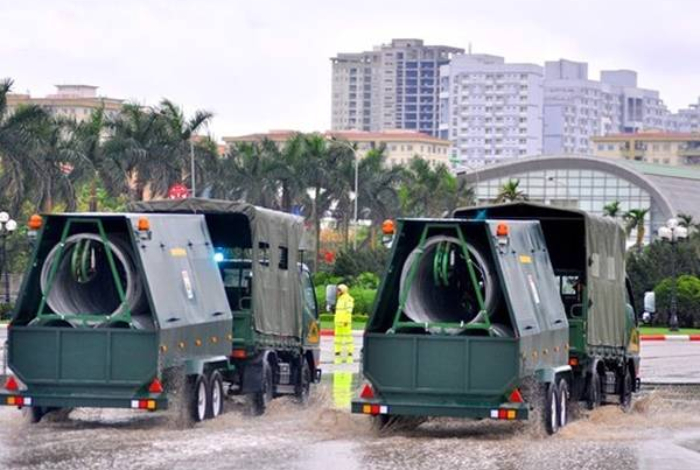

3. High Mobility for Field Operations
The trailer can be towed by standard military or commercial vehicles, enabling fast relocation across operational zones.
4. Immediate Security Barrier Formation
Creates an instant high-density physical barrier suitable for intrusion prevention and area lockdown.
5. Reusable & Durable Engineering Design
Manufactured from galvanized or stainless steel for long-term field use under harsh environmental conditions.
6. Custom Engineering Available
Fully customizable based on project requirements, including:
Deployment length
Wire capacity
Structural reinforcement
Color and military standards
| Project-Oriented Engineering Data | |
| This system is designed for industrial and military-grade deployment conditions. | |
| Material | Hot-dip galvanized steel / Stainless steel (optional 304 / equivalent) |
| Total length (with drawbar) | 6050 mm |
| Width | 2160 mm |
| Height | 2190 mm |
| Weight (without wire) | 1700 kg |
| Ground clearance | 400 ±10 mm |
| Wheel system | 700-R15 rear / 10 inch front |
| Wheel spacing | 1700 ±10 mm |
| Deployment length | up to 75 meters |
| Deployment time | 3–5 minutes |
| Operation mode | Semi-manual / Motorized system |
| Color options | Military green / Orange / Custom RAL colors |
| Accessories | Warning lights, tool kit, spare tire, safety gloves |
☞ Designed for stability, mobility, and reliability in field operations.
We are a professional manufacturer of perimeter security and mobile barrier systems.
We focus on system-level security solutions, not only standard products.
Our systems are used in global security and infrastructure protection projects.
We support full customization for:
● Military tenders
● EPC projects
● Government procurement standards
Suitable for both small batch and large-scale government orders.
We provide:

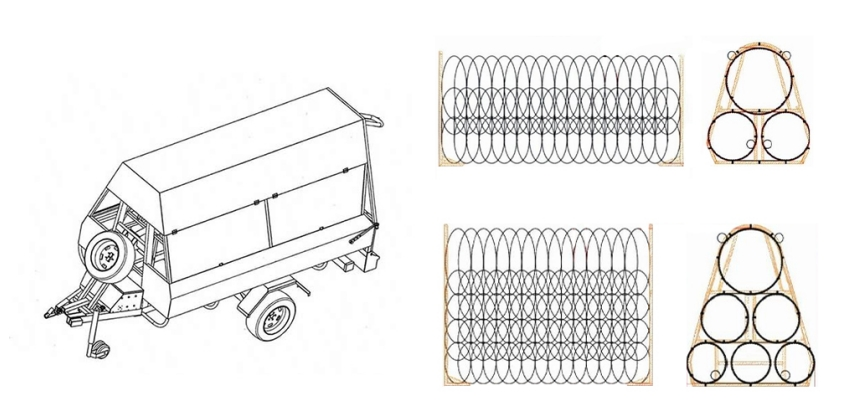

● CAD drawings
● Deployment diagrams
● Technical specification sheets
● Project-based customization support

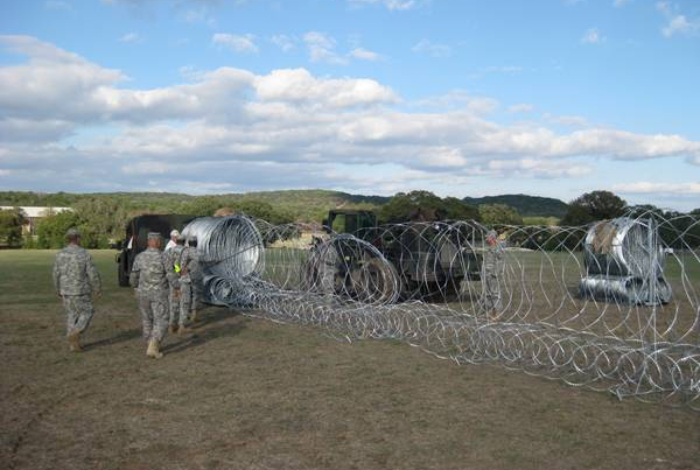

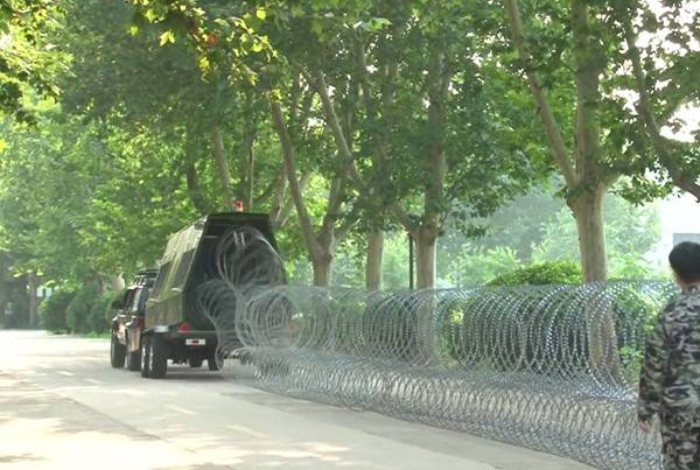

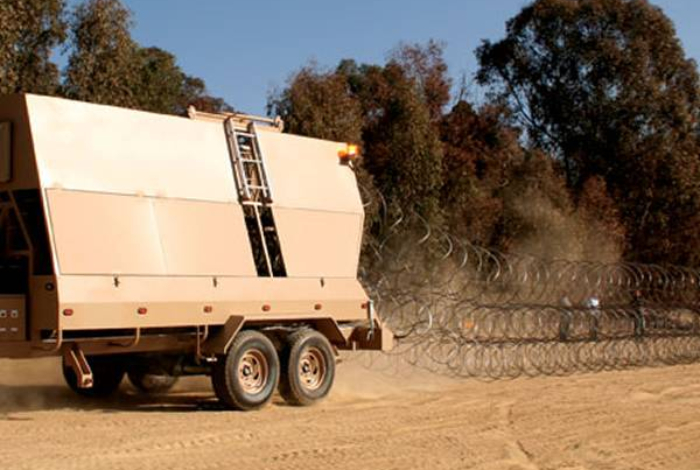

Rapid Razor Wire Deployment
Fast transportation and deployment of concertina razor wire
Mobile security solution for temporary protection areas
Quick installation for emergency response operations
Suitable for large-scale perimeter security projects
01
Engineering Manufacturing Capability
02
International Project Experience
03
OEM & Custom Engineering Support
04
Stable Production Capacity
05
Technical Documentation Support

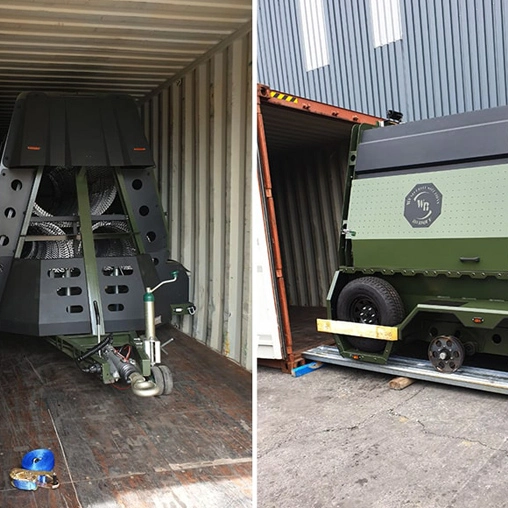

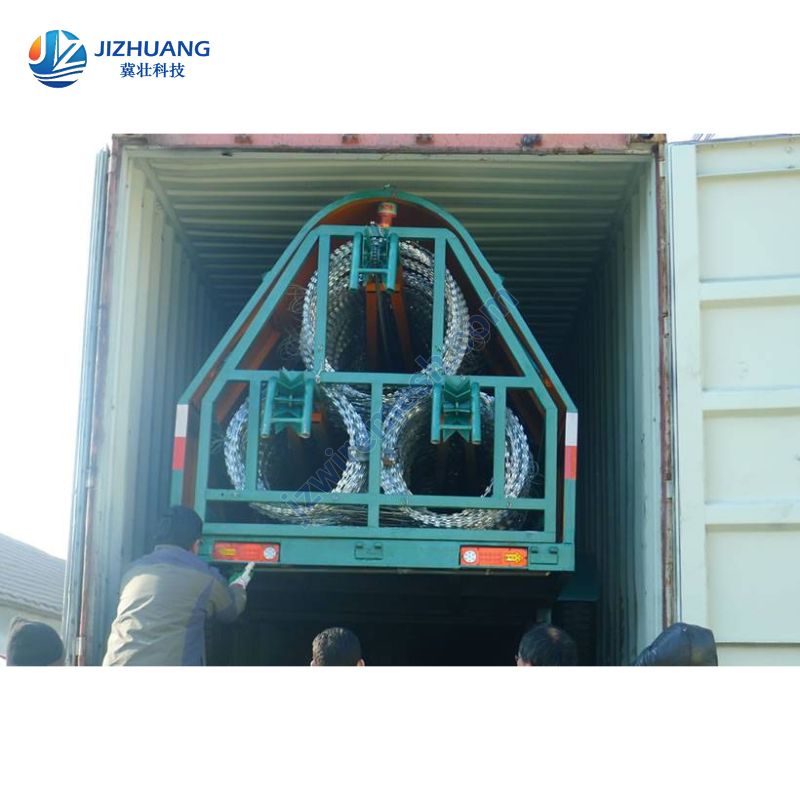

The system is designed for easy transportation and field readiness.
Secure industrial packaging for long-distance transport
Container-friendly loading design
Pre-shipment assembly inspection
Deployment instruction support available
Request a Custom Deployment Solution
If you are sourcing Razor Wire Trailer systems for military, border security, or infrastructure protection projects, we can provide:
● Customized engineering design
● Deployment planning support
● Technical drawings (CAD / 3D)
● Competitive factory quotation
● Fast RFQ response within 24 hours
☞ Send us your project requirements and our engineering team will design a deployment solution tailored to your operational needs.
Contact us now for a technical quotation
