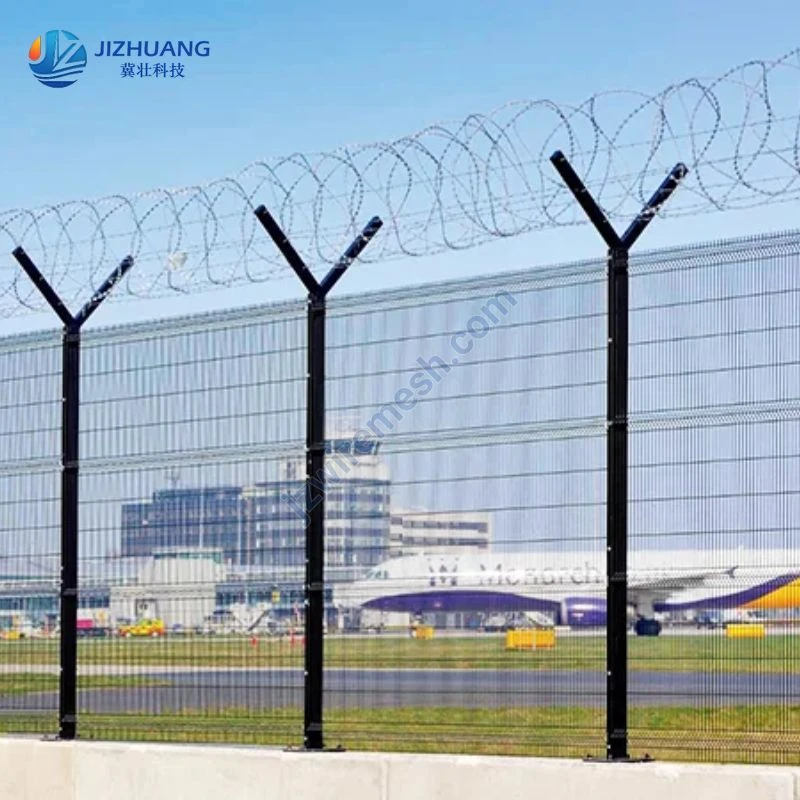

What is Airport Fence

An airport fence is a high-security perimeter fencing system designed to protect airports from unauthorized access, intrusion, and wildlife interference. It is typically built in compliance with ICAO aviation security guidelines and features anti-climb, anti-cut, and high-durability structures to ensure continuous perimeter protection.

Airport Security System Design Concept (Risk Zone Approach)

Every airport requires different security levels depending on the protection zone:

${alt_attr_replace}$

High Security Zone (Runway & Restricted Area)

✔ 358 Anti-Climb Fence System

✔ Zero foothold, anti-cut structure

✔ High-security aviation perimeter protection

✔ Optional razor wire / CCTV integration

${alt_attr_replace}$

Medium Security Zone (Terminal & Logistics Area)

✔ Welded Mesh Airport Fence

✔ Balanced security + cost efficiency

✔ Suitable for passenger and cargo movement areas

${alt_attr_replace}$

Outer Boundary Zone (Perimeter Fence)

✔ Chain Link Airport Fence

✔ Long-distance perimeter protection

✔ Cost-effective large-area fencing solution

${alt_attr_replace}$

Cargo & Industrial Aviation Zone

✔ Double Wire Reinforced Fence

✔ High impact resistance

✔ Suitable for logistics, cargo, and industrial airport areas

We design airport fencing as a complete risk-based security system, not single product supply.

Airport Fence System Types & Specifications

We provide multiple fence types to meet different security levels within airport zones.

1. 358 High Security Airport Fence (Primary Security Zone)

Used in: runway perimeter, restricted aviation zones, military airports

Specifications:

Mesh size: 12.7 × 76.2 mm

Wire diameter: 4.0 mm / 4.5 mm

Panel height: 2.4m / 3.0m / 3.6m / 4.0m

Panel width: 2.0m – 3.0m

Post size: 60×60mm / 80×80mm

Surface: Hot-dip galvanized + PVC coated

Zinc coating: ≥ 500 g/m²

Features:

Anti-climb (finger-proof design)

Anti-cut (high tensile steel)

Zero foothold structure

2. Welded Mesh Airport Fence (Standard Security Zone)

Used in: terminal area, logistics zones, airport boundary

Specifications:

Mesh size: 50 × 100 mm / 50 × 150 mm

Wire diameter: 4.0 – 6.0 mm

Height: 2.0m / 2.4m / 3.0m

Panel width: 2.0m – 2.5m

Post spacing: 2.5 – 3.0m

Surface: Galvanized / PVC coated

Features:

Strong structure with cost efficiency

Easy installation for large-scale projects

Compatible with razor wire systems

3. Chain Link Airport Fence (Outer Perimeter / Budget Zone)

Used in: airport outer boundary, low-risk zones, temporary fencing

Specifications:

Mesh size: 50 × 50 mm / 60 × 60 mm

Wire diameter: 2.5 – 4.0 mm

Height: 2.0m – 4.0m

Post spacing: 2.5 – 3.0m

Surface: Hot-dip galvanized / PVC coated

Features:

Flexible and economical solution

Suitable for long perimeter fencing

Can be upgraded with barbed wire / razor wire

4. Double Wire Airport Fence (High Strength Zone)

Used in: airport cargo areas, industrial aviation zones

Specifications:

Wire structure: 6/5/6 mm or 8/6/8 mm

Mesh size: 50 × 200 mm

Height: 2.0m – 3.0m

Post: 60×60mm or 80×80mm

Surface: Galvanized + PVC coated

Features:

Double horizontal wire reinforcement

Higher impact resistance than standard welded mesh

Anti-deformation structure

Complete Airport Security System (Not Just Fence)

We provide a full perimeter protection solution, including:

${alt_attr_replace}$

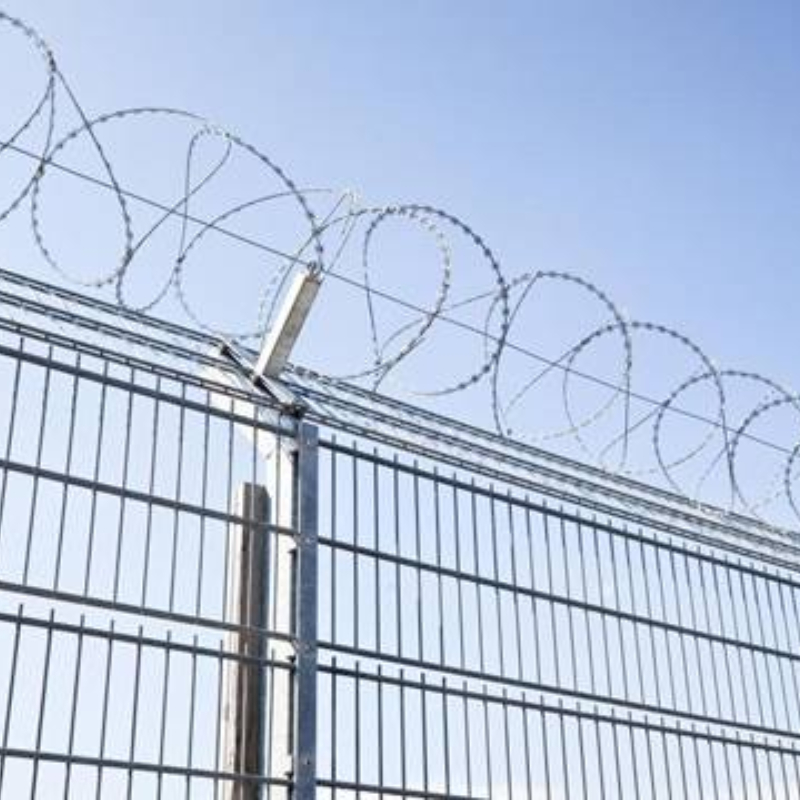

Top Security Protection

● Concertina Razor Wire

● Flat Wrap Razor Wire

● Barbed Wire

● Y / V shaped extension arms

${alt_attr_replace}$

Access Control Systems

● Sliding security gates

● Swing gates

● Controlled access integration

Customization Capability (Very Important)

We fully support OEM & project customization:

✔ Fence height & width

✔ Mesh size & wire diameter

✔ Surface coating system

✔ Structural reinforcement

✔ Airport-specific design requirements

✔ Wind load & climate adaptation

Every airport project can be designed as a tailor-made security system

Why Choose Hebei Jizhuang Technology Co., Ltd.

We are not a trading company — we are a manufacturer-integrated engineering supplier.

${alt_attr_replace}$

Factory Strength

● 25,000㎡ production base

● 5 production lines

● 10,000㎡ daily output capacity

${alt_attr_replace}$

Engineering Project Support

● Airport project bidding support

● CAD drawings & technical design

● Customized structural solutions

${alt_attr_replace}$

Quality Assurance

● ISO & CE certified

● Strict raw material inspection

● Full production quality control

${alt_attr_replace}$

Global Experience

● Exported to 50+ countries

● Airport, military, and infrastructure projects

● Familiar with international standards

We provide not only products, but project success assurance

Application

Civil Airports

International Aviation Hubs

Military Airbases

Cargo & Logistics Airports

Border Aviation Facilities

FAQ

Q: Can you design airport fence according to project drawings?

A:
Yes, we provide full custom engineering design based on project requirements.
Q: Do you support airport tender projects?

A:
Yes, we provide technical documents, drawings, and certifications for bidding.
Q: Can different fence types be combined in one airport project?

A:
Yes, we design multi-zone security systems using different fence types.
Q: What is your production capacity?

A:
We can produce over 10,000㎡ per day, suitable for large airport projects.
Q: Can you customize height and structure?

A:
Yes, all specifications are fully customizable.
Q: How long is the delivery time?

A:
Usually 10–20 days, depending on order volume.
