Reliable Anti-Slip Grating Solutions for Demanding Industrial Environments

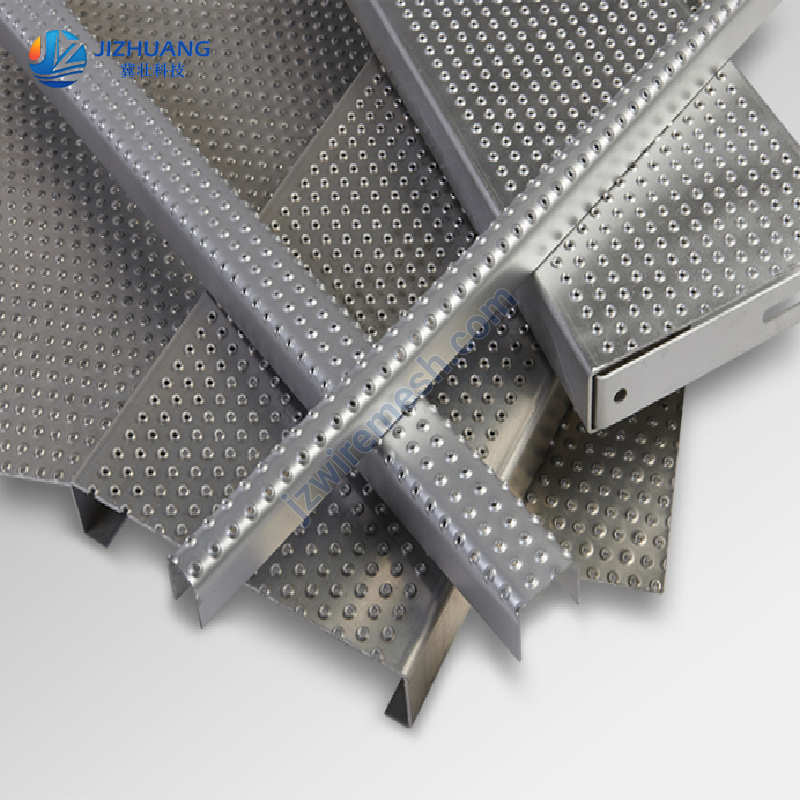

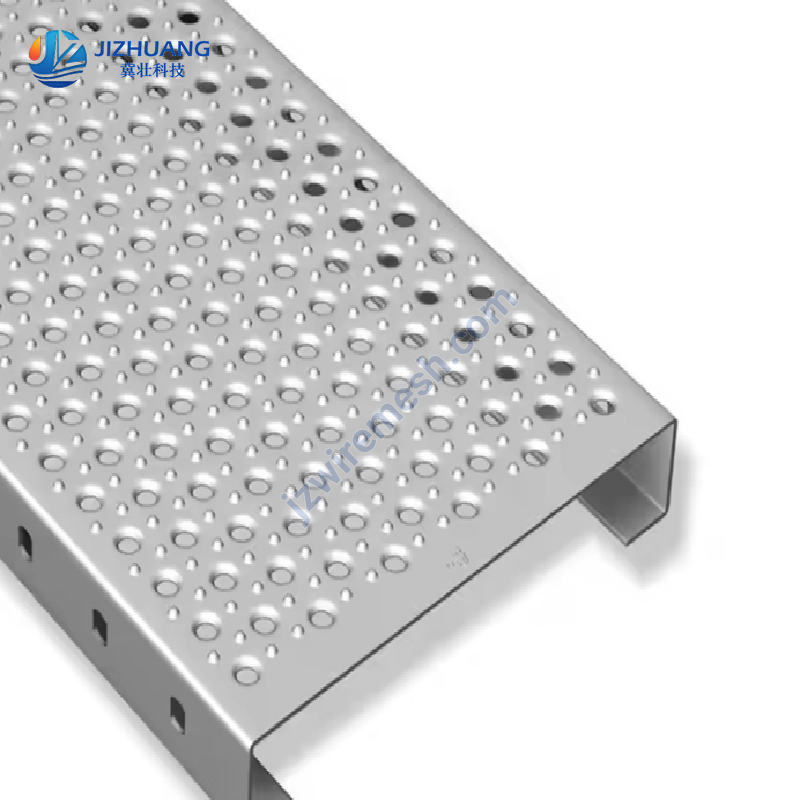

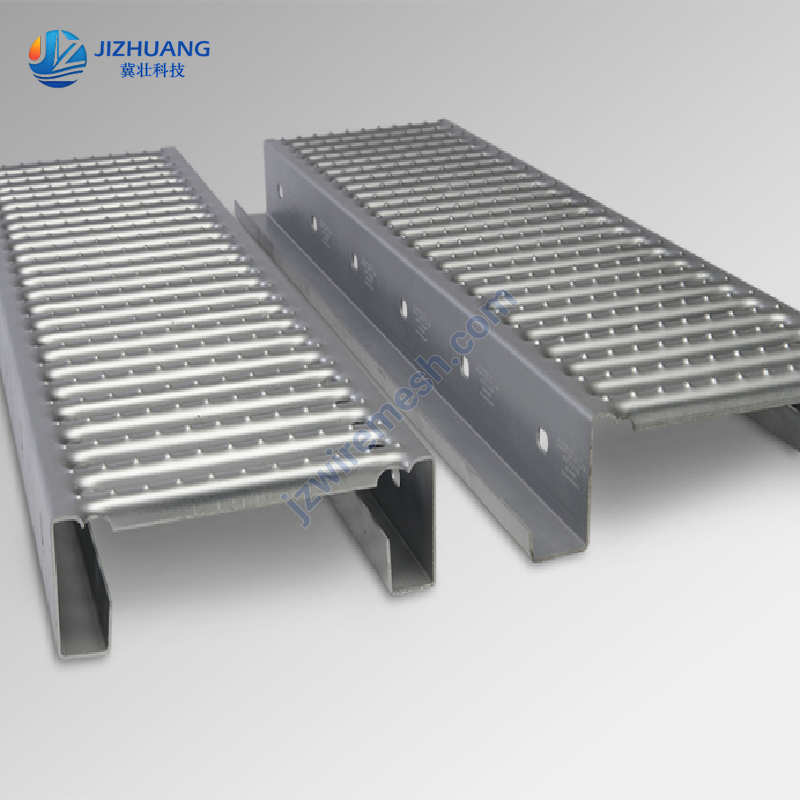

Metal safety grating, commonly known as plank grating, is engineered for durability and superior slip resistance while allowing effective drainage of water, oil, and debris. It provides a secure walking surface in demanding environments and is widely used for industrial platforms, walkways, stair treads, and ladder rungs where safety and reliability are essential.
Types of Metal Safety Grating

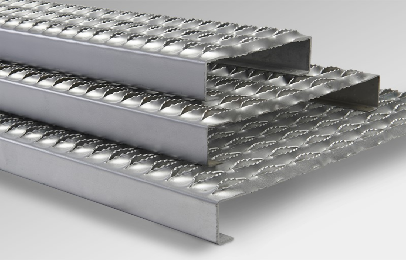

Diamond-strut Safety Grating
Diamond-Strut Safety Grating is a one-piece perforated metal plank with serrated diamond openings, providing superior slip resistance and strength. Its 35% open area ensures efficient drainage, making it ideal for industrial platforms, walkways, and stair treads in wet or hazardous environments.

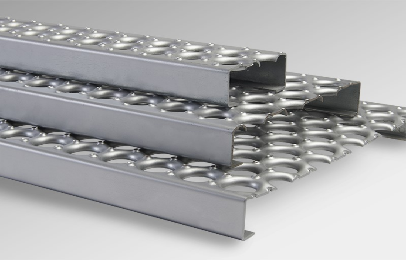

Perf-O Grip Type Plank Grating
Perf-O Grip Type Plank Grating is a one-piece metal plank formed from a single sheet with side channels. Its perforated surface delivers multi-directional slip resistance, while the 35% open area ensures efficient drainage and improved worker safety and comfort.

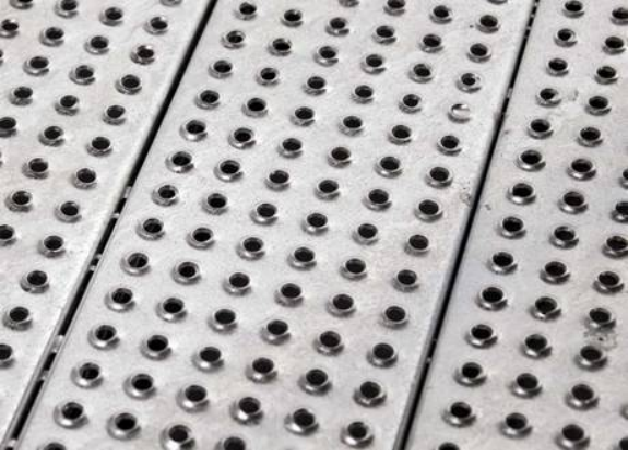

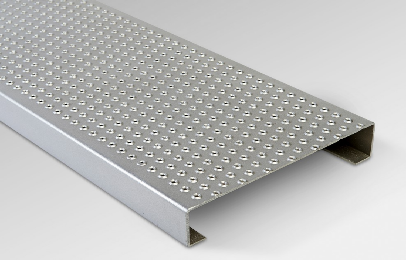

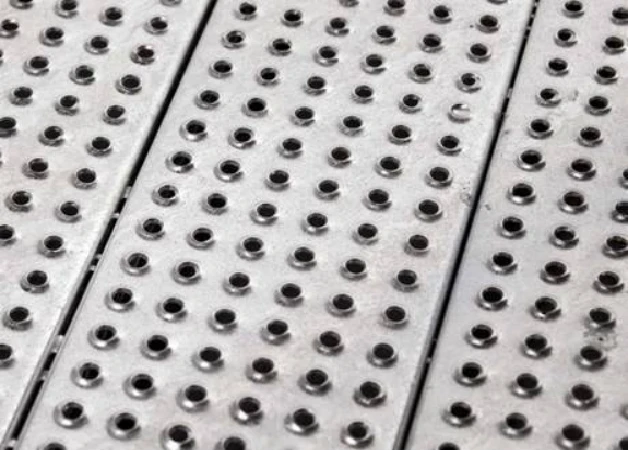

Traction-Grip Safety Grating
Traction Tread safety grating features an ADA-compliant surface with raised perforated buttons that deliver multi-directional slip resistance. Formed from a single metal sheet with side channels, it ensures strength and stability. Ideal for commercial walkways and ramps, including areas with wheelchair access.

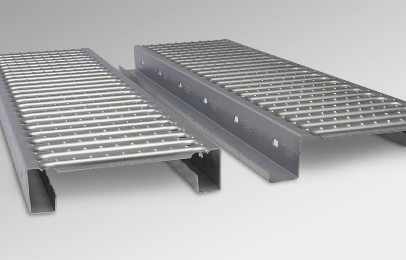

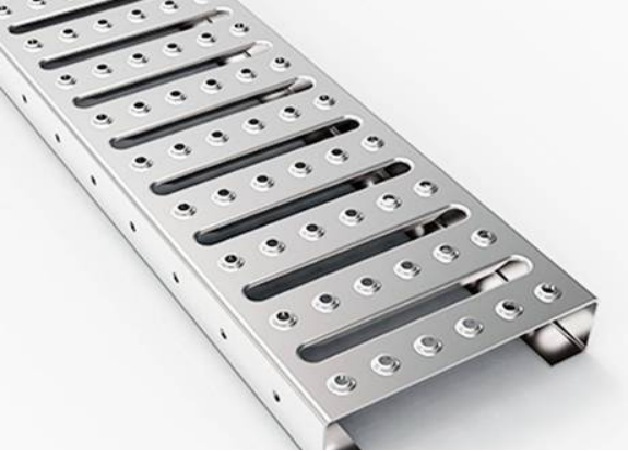

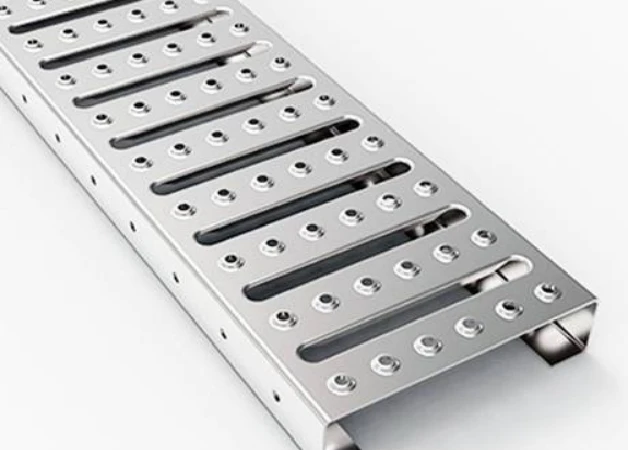

Interlocking Safety Grating
Interlocking safety grating is available in carbon steel, aluminum, or stainless steel. Its interlocking side channels distribute loads across planks for longer spans with less support. Pre-punched holes enable fast bolting, improving stability while reducing material and installation costs.
Diamond-Strut Safety Grating Specifications
|
Material |
Pre-galvanized Carbon Steel / HRPO Carbon Steel / 5052-H32 Aluminum / Stainless Steel 304 / 316 |
|
Surface Treatment |
Galvanized / Hot Rolling / Pickling |
|
Length |
Up to 6000 mm |
|
Width |
120 / 180 / 240 / 300 / 360 / 420 / 480 mm |
|
Height |
40 / 50 / 75 mm |
|
Thickness |
1.5 / 2.0 / 2.5 mm |
|
Surface Type |
Aggressive Serrated Diamond Pattern |
|
Protrusion Width |
15 mm |
|
Protrusion Height |
10 mm |
|
Protrusion Spacing |
30 mm |

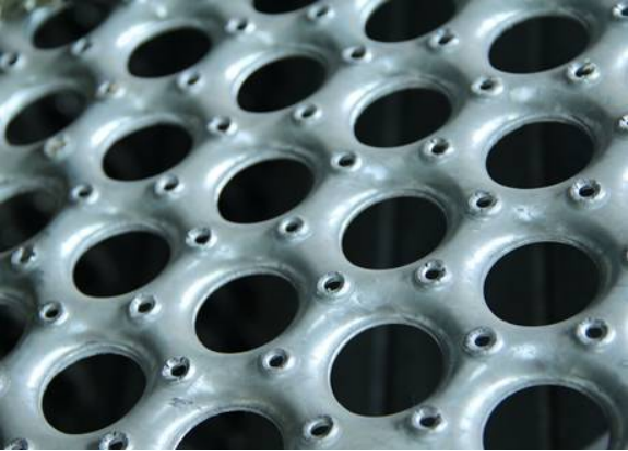

O-Grip (Perf-O Type) Safety Grating Specifications
|
Material |
Pre-galvanized Carbon Steel / HRPO Carbon Steel / 5052-H32 Aluminum / Stainless Steel 304 / 316 |
|
Surface Treatment |
Galvanized / Hot Rolling / Pickling |
|
Surface Type |
Smooth / Serrated |
|
Length |
Up to 4000 mm |
|
Width |
150 / 200 / 250 / 300 mm |
|
Height |
40 / 50 / 75 mm |
|
Thickness |
1.5 / 2.0 / 2.5 mm |
Traction-Grip Safety Grating Specifications
|
Material |
Pre-galvanized Carbon Steel / HRPO Carbon Steel / 5052-H32 Aluminum / Stainless Steel 304 / 316 |
|
Surface Treatment |
Galvanized / Hot Rolling / Pickling / Oiled Carbon Steel |
|
Length |
Up to 6000 mm |
|
Width |
150 / 200 / 250 / 300 / 350 / 400 mm |
|
Height |
40 / 50 / 75 mm |
|
Thickness |
1.5 / 2.0 / 2.5 mm |
|
Surface Type |
Embossed Perforated Anti-Slip |
Interlocking Safety Grating Specifications
|
Material |
Pre-galvanized Carbon Steel / HRPO Carbon Steel / 5052-H32 Aluminum / Stainless Steel 304 / 316 |
|
Surface Treatment |
Galvanized / Hot Rolling / Pickling |
|
Surface Type |
Smooth / Serrated |
|
Length |
Up to 6000 mm |
|
Width |
150 / 200 / 250 / 300 mm |
|
Height |
25 / 40 / 50 / 75 mm |
|
Thickness |
1.5 / 2.0 / 2.5 mm |
|
Structure |
Interlocking Side Channels |
|
Connection |
Bolt Connection |
Metal safety grating is engineered as a high-performance industrial flooring system designed for safety, strength, and long-term durability in demanding environments.
Superior Anti-Slip Surface Design
The grating features an engineered surface pattern that provides excellent traction performance, ensuring safe walking conditions in wet, oily, or high-risk industrial areas.
High Load-Bearing Structural Strength
Designed to support heavy-duty industrial use, the system provides stable load distribution for workers, equipment, and maintenance operations on platforms and walkways.
Excellent Corrosion Resistance
Manufactured with galvanized or stainless steel options, the grating delivers long-term protection against corrosion in chemical plants, offshore environments, and outdoor industrial facilities.
Low Maintenance & Long Service Life
The durable open-grid structure reduces debris accumulation and minimizes maintenance requirements, helping lower long-term operational costs.
Modular & Installation-Friendly Design
Standardized and customizable panel structures allow fast installation and easy integration into EPC and large-scale engineering projects, improving construction efficiency.
Why Global Buyers Choose Our Metal Safety Grating
We help EPC contractors and industrial buyers reduce project cost and installation time through engineered safety grating solutions.
✔ Direct factory pricing (no middleman cost)
✔ Custom fabrication based on drawings
✔ Fast production for urgent EPC schedules
✔ Engineering support for load and span calculation
✔ Export experience for global industrial projects
For EPC / Large Projects
We support:
01

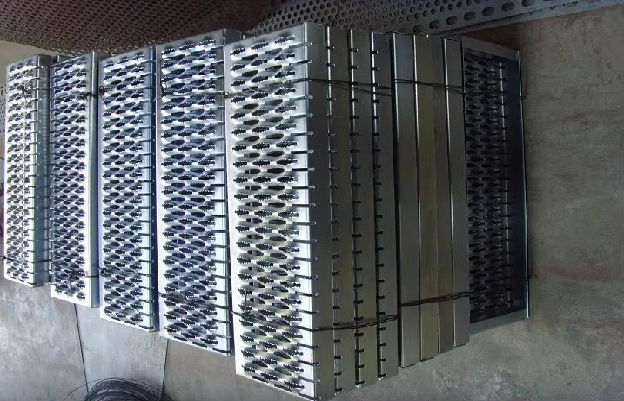

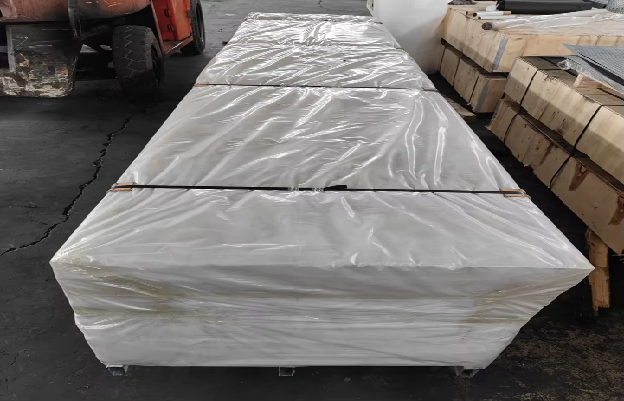

Standard Packing Methods
Steel Strapping Bundles
Grating planks are tightly bundled with steel straps to ensure stability and prevent movement during transport.
Pallet Packing (Optional)
Wooden or steel pallets are available for easy forklift handling and improved loading efficiency.
Protective Film (Optional)
Surface protection film can be applied to prevent scratches, especially for stainless steel or aluminum products.
02
Protection for Long-Distance Shipping
Anti-deformation reinforcement for long planks
Moisture-proof packing to reduce corrosion risk
Edge protection to prevent damage during loading/unloading
03

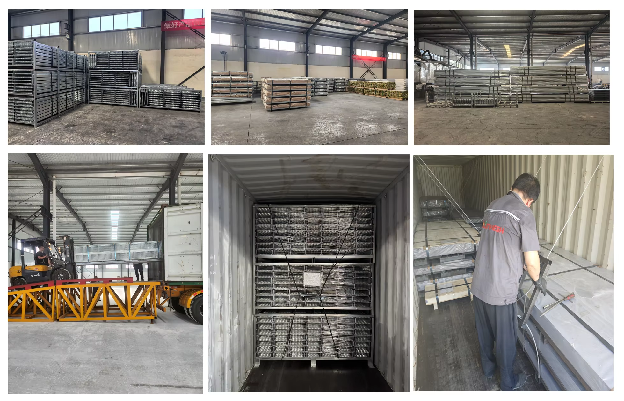

Container Loading Optimization
Our team optimizes loading plans to:
Maximize container space utilization
Reduce shipping costs
Ensure stable and safe transportation
04
Custom Packing Solutions
We offer customized packing based on your requirements:
Special labeling or barcodes
Project-based packing lists
Mixed container loading support
05
Documentation Support
Complete export documents are provided, including:
Packing List
Commercial Invoice
Certificate of Origin (if required)
Complete Engineering Support
We don’t just supply products—we provide solutions. Our team offers material selection, load calculation, and CAD drawing support to ensure your safety grating meets project requirements and industry standards.

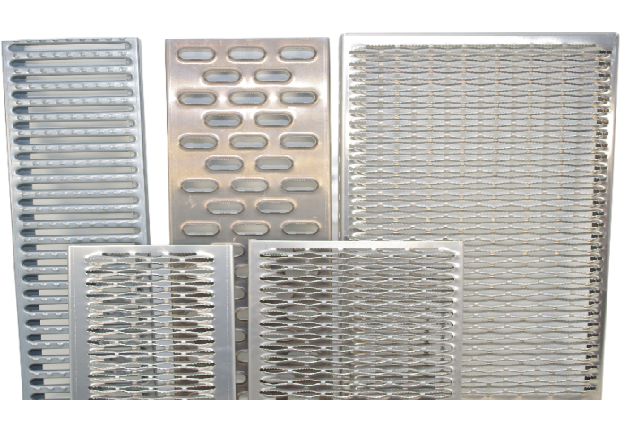

Full Customization Capability
Every project is different. We manufacture metal safety grating in custom sizes, materials, and surface types, including carbon steel, stainless steel (304/316), and aluminum.

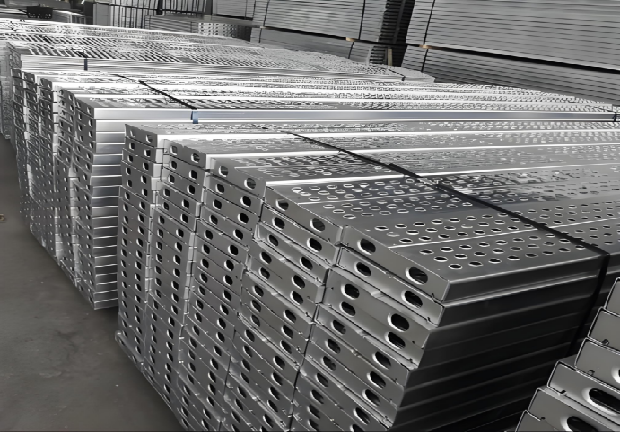

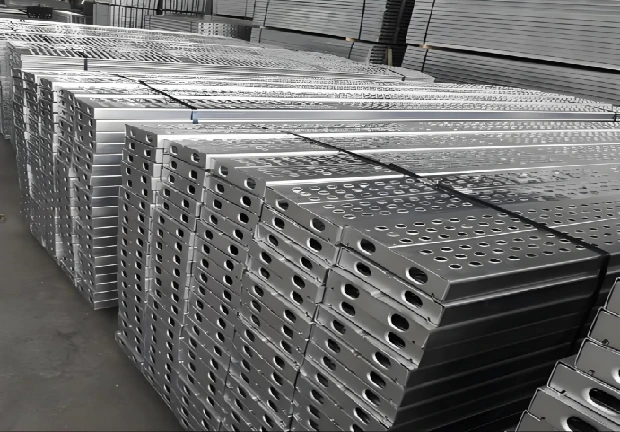

Strong Production Capacity
With advanced production lines and experienced technicians, we ensure stable output and fast lead times, even for large-scale projects. Urgent orders can be prioritized to meet tight deadlines.

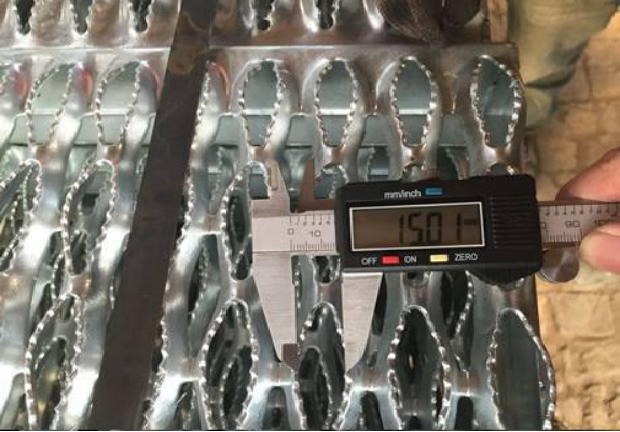

Quality Assurance & Project Safety
To ensure reliable performance in critical environments, all safety grating products undergo:
✔ Raw material inspection
✔ Load testing (based on project requirement)
✔ Surface treatment quality control
✔ Pre-shipment inspection
We guarantee consistency for large-scale engineering supply.
FAQ
Q: How do I choose the right type of safety grating for my project?
The selection depends on application, load requirements, and environment. For example, Diamond-Strut is ideal for heavy-duty anti-slip needs, while perforated types are suitable for general industrial use.
👉 Contact us with your project details for a free recommendation.
Q: Can you provide custom sizes and specifications?
Q: What materials are available for metal safety grating?
Q: What surface treatment options do you offer?
Q: What is the load capacity of your safety grating?
Q: How do you ensure safe packing and delivery?
Get Your Competitive Quote in 24 Hours
Send us your requirements and receive:
✔ Detailed quotation with material options
✔ Load-bearing recommendation
✔ CAD drawing support (if needed)
✔ Cost optimization suggestions
📩 Email us your drawings or project details today.
Our engineering team will respond within 24 hours.
