Wear-Resistant Screening Solutions for Mining, Quarry & Aggregate Operations
Mining Screen Mesh is a high-performance screening media designed for mining, quarry, aggregate, coal, recycling, and mineral processing industries. It is installed on vibrating screens to classify, separate, and size materials efficiently during continuous production.Hebei Jizhuang Technology provides customized Mining Screen Mesh solutions based on actual working conditions, including material hardness, moisture level, abrasion intensity, screening capacity, and equipment requirements.
Incorrect screen selection leads to frequent replacement and production interruption.
Our materials are designed for longer service life under high-impact conditions.
Optimized aperture accuracy and structure design ensure:
● Higher throughput
● Better material separation
● Stable screening performance
For wet and sticky materials, we provide:
● Self-cleaning screen mesh
● Piano wire screen systems
● Flexible wire structures
This helps maintain continuous material flow.
Depending on application, we offer:
● High carbon steel
● Manganese steel
● Spring steel
● Polyurethane panels
Each material is selected based on abrasion level and working conditions.
We customize according to:
● Vibrating screen models
● Hook type
● Panel dimensions
● Tension system
This ensures fast installation and stable operation.

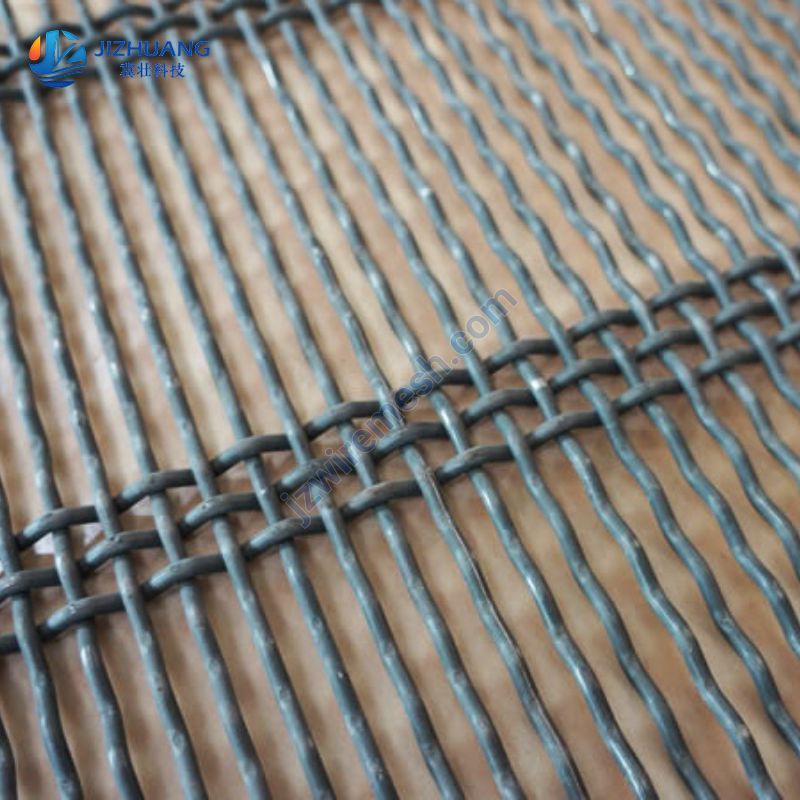

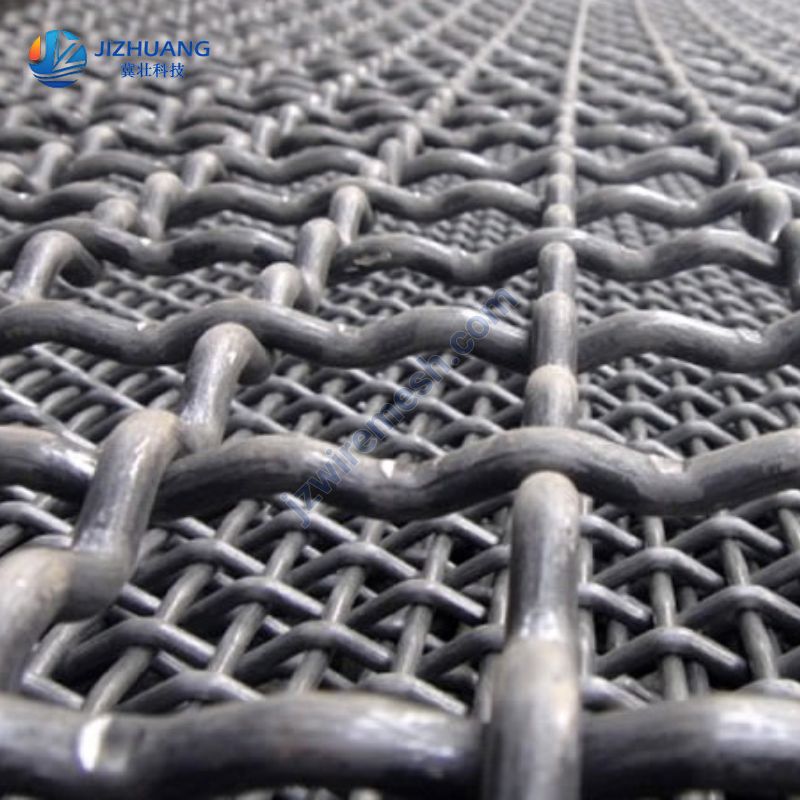

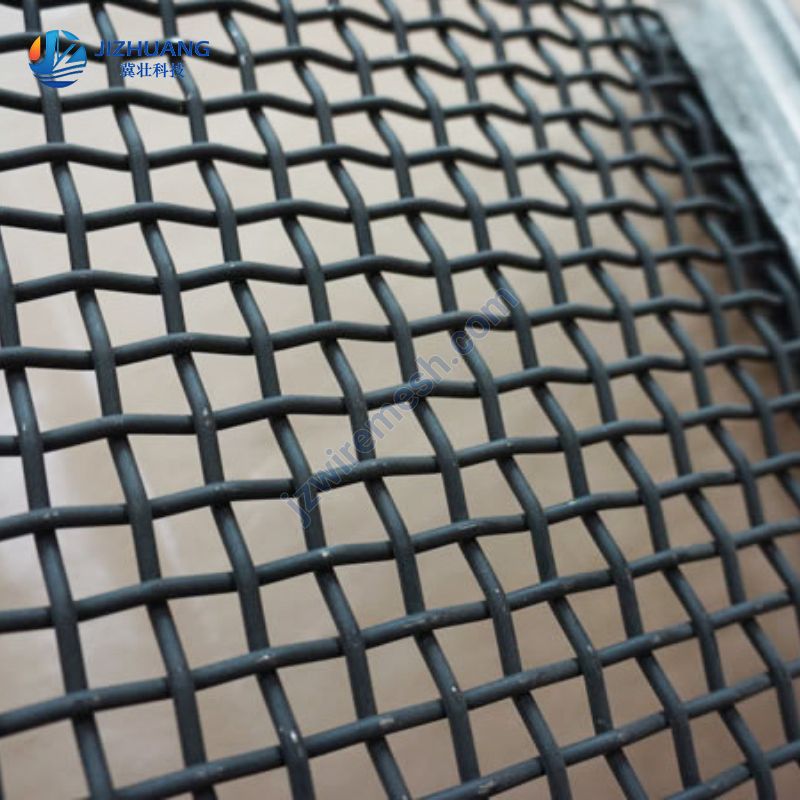

Woven Wire Screen Mesh is the most commonly used screening media for quarry, mining, and aggregate plants.
● High tensile strength
● Excellent wear resistance
● Stable opening accuracy
● Suitable for heavy vibration equipment
● Cost-effective solution for high-capacity screening

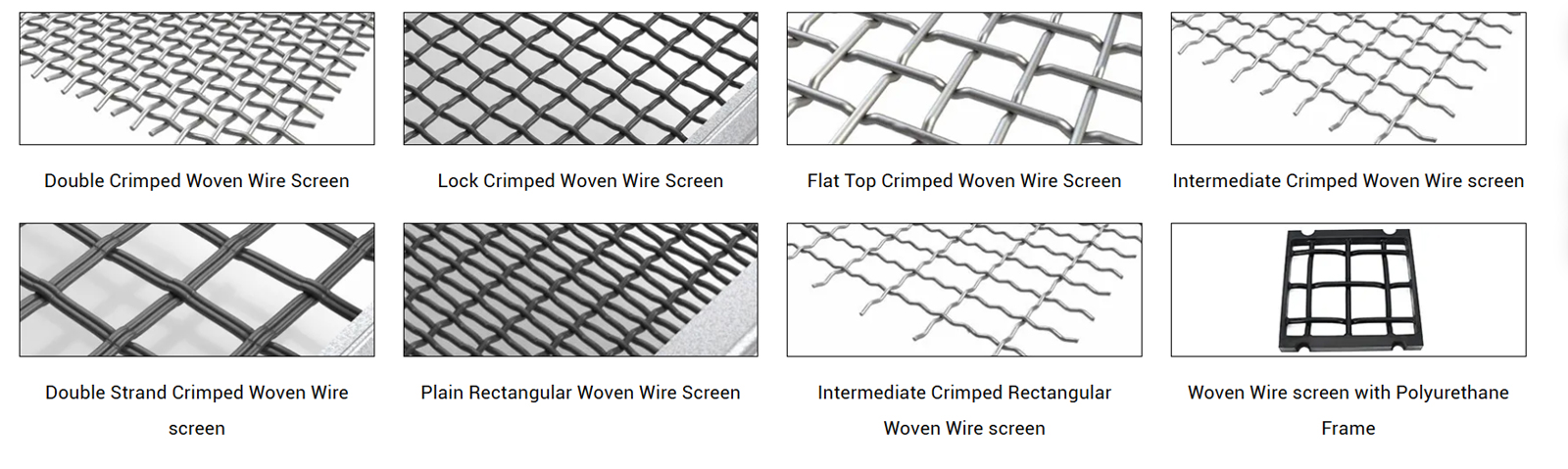

● Plain Weave
● Double Crimp
● Lock Crimp
● Flat Top Crimp
● Quarry screening
● Stone crushing plants
● Aggregate grading
● Coal screening
● Sand and gravel separation
● High Carbon Steel
● Spring Steel
● Manganese Steel
● Stainless Steel
|
Item |
Specification |
|
Material |
High Carbon Steel Wire, Spring Steel Wire, Manganese Steel Wire, Stainless Steel Wire |
|
Wire Diameter |
1.20 mm – 12.00 mm |
|
Aperture Size |
2 mm – 100 mm |
|
Weaving Type |
Plain Weave, Double Crimp, Intermediate Crimp, Lock Crimp, Flat Top Crimp |
|
Tensile Strength |
1200 – 1900 N/mm² |
|
Screen Width |
Up to 2500 mm |
|
Screen Length |
Customizable |
|
Edge Type |
Plain Edge, Bent Hook, Reinforced Hook |
|
Hook Angle |
45° / 60° / 180° |
|
Hook Reinforcement |
Steel Plate Reinforced / Wrapped Reinforced |
|
Surface Treatment |
Black Wire / Galvanized |
|
Open Area |
According to aperture & wire diameter |
|
Application |
Quarry, Mining, Aggregate, Coal, Crusher Screening |

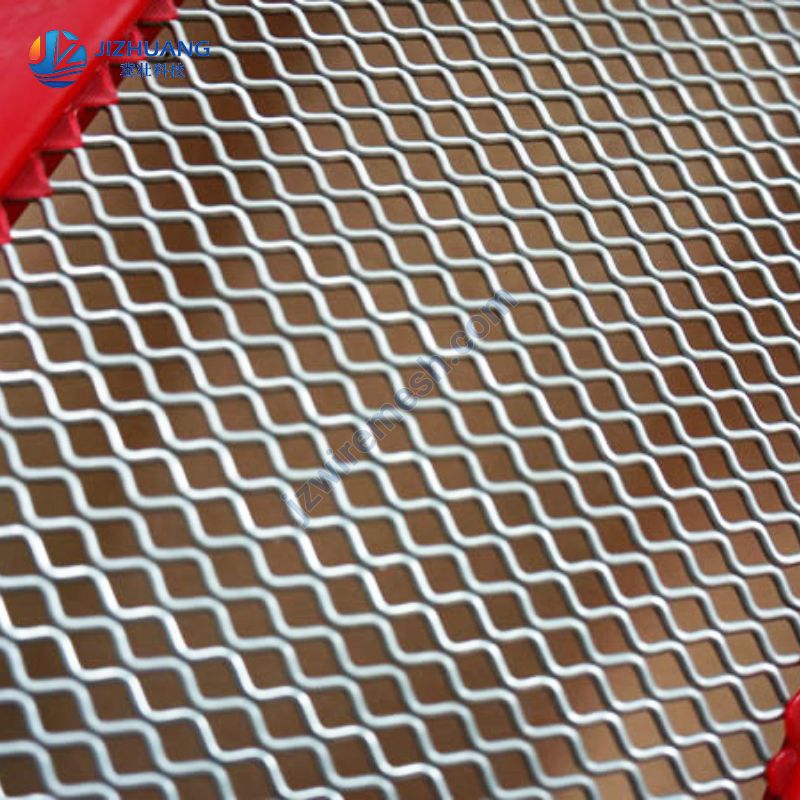

Self-Cleaning Screen Mesh is a high-efficiency screening solution designed for wet, sticky, and difficult-to-screen materials that commonly cause clogging and blinding in traditional woven wire screens. By using independently vibrating wires and flexible screening structures, self-cleaning screens help maintain continuous material flow, improve screening accuracy, and reduce production downtime in mining, quarry, aggregate, coal, and recycling operations.
Compared with conventional woven screen mesh, Self-Cleaning Screen Mesh provides higher open area and better anti-clogging performance, making it ideal for applications involving moist aggregate, clay-containing stone, fine sand, topsoil, recycled materials, and other sticky materials.
● Excellent anti-clogging and anti-blinding performance
● Improved screening efficiency and throughput
● Reduced downtime and maintenance frequency
● Higher open area for better material separation
● Effective screening of wet and sticky materials
● Reduced material buildup on the screen surface
● Suitable for high-vibration screening equipment
● Piano Wire Screen
● Harp Screen
● W Type Self-Cleaning Screen
● Diamond Self-Cleaning Screen
● Poly Ripple Screen
● High Carbon Steel
● Spring Steel Wire
● Stainless Steel Wire
● Mining screening plants
● Quarry and aggregate processing
● Coal preparation plants
● Sand and gravel screening
● Recycling systems
● Topsoil and compost screening
|
Item |
Specification |
|
Material |
High Carbon Steel, Spring Steel, Stainless Steel |
|
Screen Type |
Harp Screen, Piano Wire Screen, W Type Screen, Diamond Screen |
|
Wire Diameter |
0.70 mm – 5.00 mm |
|
Aperture Size |
1 mm – 100 mm |
|
Tensile Strength |
1600 – 2100 N/mm² |
|
Width |
Up to 2500 mm |
|
Length |
Customizable |
|
Hook Type |
C Hook, U Hook, Wrapped Hook |
|
Open Area |
Higher than standard woven wire screens |
|
Features |
Anti-Clogging, Anti-Blinding, High Throughput |
|
Application |
Wet Material Screening, Sticky Aggregate, Recycling, Fine Screening |
Different screening systems require different mesh structures and tension configurations. Custom manufacturing is available for:
● Aperture size
● Wire diameter
● Screen dimensions
● Hook type
● Reinforced edges
● Tension requirements
Samples and drawings are welcome for accurate production matching.

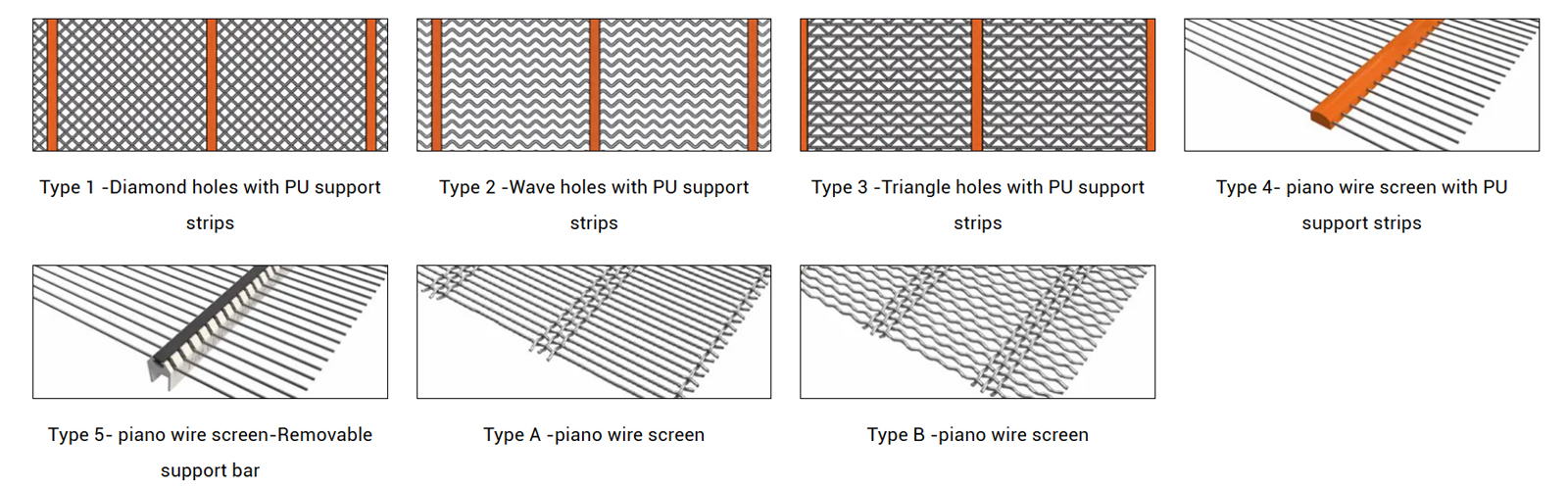

Piano Wire Screens
Piano Wire Screens are high-efficiency self-cleaning screening media designed for fine material separation, wet screening, and anti-clogging applications in mining, quarry, aggregate, coal, sand, and recycling industries. Compared with traditional woven wire screens, piano wire screens use individually tensioned longitudinal wires connected by transverse support wires, creating a flexible screening surface that helps reduce blinding and improve material flow under difficult screening conditions.
Excellent Anti-Blinding Performance
Higher Open Area for Better Throughput
Improved Performance in Wet Screenin
Improved Performance in Wet Screenin

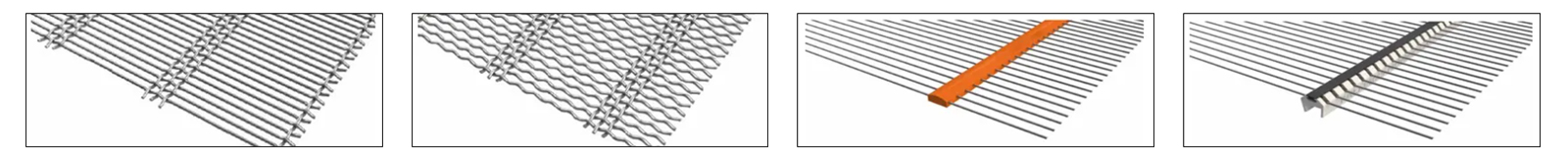

Straight Piano Wire Screen
Harp Screen
Diamond Piano Wire Screen
|
Item |
Specification |
|
Material |
High Carbon Steel Wire, Spring Steel Wire, Stainless Steel Wire |
|
Wire Diameter |
0.70 mm – 2.50 mm |
|
Aperture Size |
0.80 mm – 20 mm |
|
Tensile Strength |
1600 – 2100 N/mm² |
|
Screen Width |
Up to 2500 mm |
|
Screen Length |
Customized |
|
Edge Type |
Hook Edge / Reinforced Hook |
|
Surface Treatment |
Black / Galvanized |
|
Open Area |
High Open Area Design |
|
Application |
Fine Screening / Wet Material Screening |
Different screening conditions require different material performance.
Available material options include:
● High Carbon Steel
● Spring Steel
● Stainless Steel 304
● Stainless Steel 316
Material selection depends on:
● Abrasion level
● Moisture content
● Corrosion conditions
● Material size
● Screening capacity requirements
Different vibrating screens require different screen configurations and hook structures.
Custom manufacturing is available for:
● Aperture sizes
● Wire diameters
● Screen dimensions
● Hook types
● Reinforced edges
● Tension structures
Drawings and samples are welcome for accurate production matching.
Piano Wire Screens are widely used in:
● Mining plants
● Quarry operations
● Aggregate processing
● Coal preparation systems
● Sand & gravel screening
● Recycling facilities
● Topsoil screening
● Fine material classification
Polyurethane Screen Panels are high-performance screening media widely used in mining, quarry, aggregate, coal, sand washing, and recycling industries. Compared with traditional woven wire mesh and perforated steel plates, polyurethane screen panels provide superior wear resistance, longer service life, lower maintenance frequency, and more stable screening performance under abrasive and high-impact working conditions.
● Exceptional Wear Resistance
● Reduced Downtime & Maintenance
● Stable Screening Accuracy
● Excellent Wet Screening Performance
● Lower Operating Noise
Mining Industry
Quarry & Aggregate Industry
Sand Washing & Dewatering
Coal Preparation Plants
Recycling Industry
● Modular Polyurethane Screen Panels
● Tensioned Polyurethane Screen Panels
● Polyurethane Dewatering Screen Panels
|
Item |
Specification |
|
Material |
High-Performance Polyurethane Elastomer |
|
Screen Slot Range |
0.045 mm – 3 mm |
|
Sieve Hole Range |
0.075 mm – 3 mm |
|
Opening Rate |
15.25% – 46.51% |
|
Hardness Range |
Shore A 65–95 |
|
Panel Thickness |
Customized According to Capacity |
|
Aperture Shape |
Slot / Square / Rectangular |
|
Installation Type |
Modular / Bolt-Down / Rail Mounting |
|
Reinforcement |
Support Net / Steel Reinforcement |
|
Operating Temperature |
Generally Below 80°C |
|
Maximum Panel Size |
Customizable |
Different screening systems require different mesh configurations.
We support customization for:
● Aperture sizes
● Wire diameters
● Hook types
● Edge reinforcements
● Panel dimensions
● Polyurethane hardness
● Tension requirements
● Equipment matching
Compatible with many screening systems used in:
● Mining plants
● Quarry operations
● Aggregate processing lines
● Vibrating screens
● Trommel screens
● Dewatering systems
● Crusher screening systems
Drawings, samples, and OEM production are supported.
In mining and aggregate operations, downtime is expensive. A screen that wears out too quickly, clogs constantly, or does not fit properly can slow down the entire production line and increase maintenance costs.
That is why we focus not only on manufacturing screen mesh, but also on helping customers choose the right screening solution for their actual working conditions.
Different materials create different wear challenges. Hard stone, iron ore, crushed aggregate, and wet materials can quickly damage standard screen mesh if the wrong material or structure is selected.
Based on the application, we help customers choose suitable options such as:
● High carbon steel woven screens for heavy aggregate screening
● Manganese steel for high-impact conditions
● Polyurethane panels for abrasive wet screening
● Self-cleaning screens for sticky materials
Using the correct screen type helps reduce replacement frequency and keeps production running longer between maintenance stops.
One of the most common problems in screening plants is material buildup on the screen surface, especially when processing wet aggregate, clay, recycled materials, or fine sand.
Blocked apertures reduce throughput and often force operators to stop production for cleaning.
For these conditions, self-cleaning screens and piano wire screens provide better material flow and help reduce screen blinding. This allows the equipment to run more smoothly with fewer interruptions and less manual cleaning.
A replacement screen that does not fit correctly can waste valuable maintenance time.
Problems like incorrect hook dimensions, poor tension, or inaccurate panel sizes can delay installation and affect screening performance after startup.
To avoid this, production is based on:
● Customer drawings
● Existing samples
● Equipment specifications
● Vibrating screen models
Accurate manufacturing helps customers install screens faster and return equipment to operation with less downtime.
For many buyers, one of the biggest concerns is consistency. A sample may perform well, but later batches may wear differently or have uneven apertures.
To maintain stable quality, production includes:
● Raw material inspection
● Aperture tolerance checks
● Tensile strength testing
● Dimensional verification before shipment
Consistent quality helps customers maintain predictable replacement schedules and stable screening performance across long-term projects.
In high-capacity plants, reducing maintenance time is just as important as extending screen life.
Modular polyurethane panels and properly designed hook screens make replacement faster and more convenient by:
● Simplifying installation
● Improving equipment matching
● Allowing partial panel replacement
● Reducing labor intensity during maintenance
This helps maintenance teams complete screen changes more efficiently and return equipment to operation sooner.
Different materials require different screening solutions. A screen that works well for dry aggregate may not perform well for wet clay or fine sand.
We help customers choose suitable screen types based on:
● Material type
● Moisture level
● Abrasion conditions
● Aperture size
● Throughput requirements
● Equipment structure
This reduces the risk of selecting unsuitable screening media that may lead to premature wear, clogging, or unstable screening efficiency.

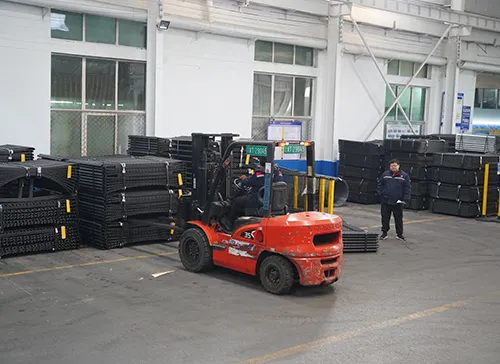

Mining and quarry operations often run on tight production schedules, and delayed replacement screens can affect the entire plant.
Stable production planning and export packing help reduce:
● Delivery delays
● Transportation damage
● Emergency shortages
Reliable supply helps customers maintain continuous operation and avoid unnecessary production interruptions.
One of the biggest concerns for overseas buyers is batch consistency.
To ensure stable product quality, every production batch undergoes:
● Raw material inspection
● Wire diameter inspection
● Aperture tolerance inspection
● Tensile testing
● Surface quality inspection
● Dimensional verification
● Final packing inspection
This helps ensure bulk production matches approved samples.

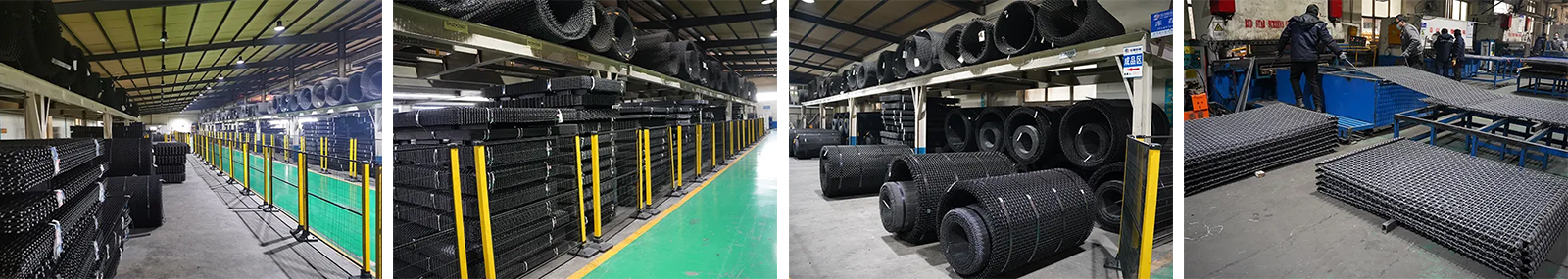

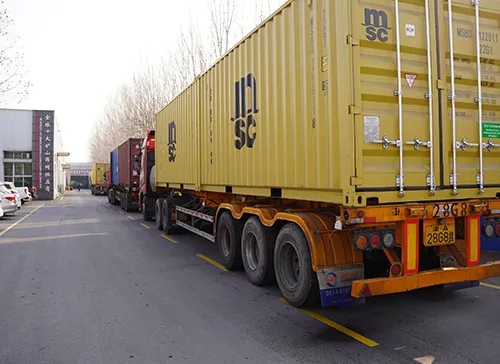

Mining Screen Mesh is heavy and easily damaged during transportation if packed improperly.
We provide export-grade packing solutions designed for international shipment.
● Steel pallets
● Wooden crates
● Stretch film wrapping
● Waterproof protection
● Anti-rust packaging
● Reinforced pallet fixing
● Corner protection
● Container loading optimization
● Clear product labeling
Professional packing helps reduce deformation and transportation damage during long-distance shipping.
We focus on mining, quarry, and aggregate screening applications instead of general-purpose wire mesh production.
We carefully select high carbon steel, spring steel, manganese steel, stainless steel, and polyurethane materials for demanding screening environments.
Custom dimensions, hook styles, apertures, and structures are available based on equipment and operating conditions.
Reliable production scheduling helps ensure consistent supply and stable delivery times.
We support international buyers with:
● Export documentation
● Container loading
● OEM manufacturing
● Bulk production
● International logistics coordination
Professional support helps buyers quickly confirm:
● Screen specifications
● Material recommendations
● Aperture selection
● Equipment matching
Our Mining Screen Mesh products are widely used in:
● Mining industry
● Quarry industry
● Aggregate production
● Coal processing
● Sand and gravel plants
● Recycling facilities
● Asphalt mixing plants
● Construction material processing
FAQ
Q: How do I choose the correct Mining Screen Mesh?
Selection depends on:
Our technical team can recommend suitable screen types based on your application.
Q: Which screen type is best for wet or sticky materials?
Q: Which material offers the longest wear life?
Q: Can you produce custom sizes?
Q: How long is the production lead time?
Q: What information is required for quotation?
Request a Technical Recommendation or Quotation
Whether you need:
● Heavy-duty woven wire screens
● Anti-clogging self-cleaning screens
● Piano wire screens
● Polyurethane screen panels
● Custom screening solutions
our team can help recommend suitable screening media based on your material type, equipment, and operating conditions.
Send your drawings, specifications, or application requirements for a fast quotation and technical support.
Structural Reinforcement System for Masonry Walls, Construction & EPC Building Projects
View More
China Reinforcing Mesh Manufacturer supplying welded steel reinforcement mesh compliant with AS/NZS 4671, BS 4483, DIN 488, EN 10080, NF A35-080 and GB/T 1499.3 standards. Supported by SGS inspection, material traceability, and strict quality control for global construction and infrastructure projects.
View More
Anti-Drone Nets for Military & Defence
Engineered Anti-Drone Net Systems with High-Strength Materials for Defence Contractors and Security Applications
View More
Welded Steel Grating – High-Strength Industrial Bar Grating Manufacturer
High-Strength Industrial Bar Grating Manufacturer
View More
Heavy-Duty Steel Grating Solutions for Industrial Platforms, Walkways and Infrastructure Projects
View More
