Custom High-Security Prison Fence Solutions for Government and Institutional Projects
A prison fence is a high-security perimeter fencing system designed to prevent unauthorized access, escape attempts, and perimeter breaches. It is widely used for correctional facilities, detention centers, military bases, border security, airports, and other critical infrastructure where maximum security is required. Typically manufactured from high-strength galvanized steel with corrosion-resistant surface treatments, prison fences are engineered to provide long-term durability, anti-climb performance, and reliable perimeter protection.
Type of Prison Fence System

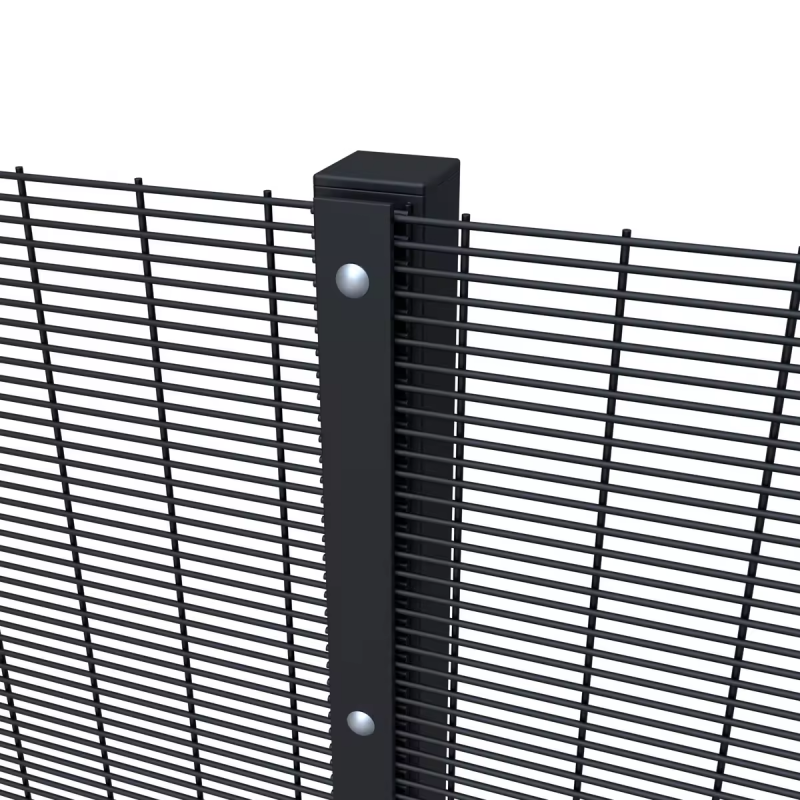

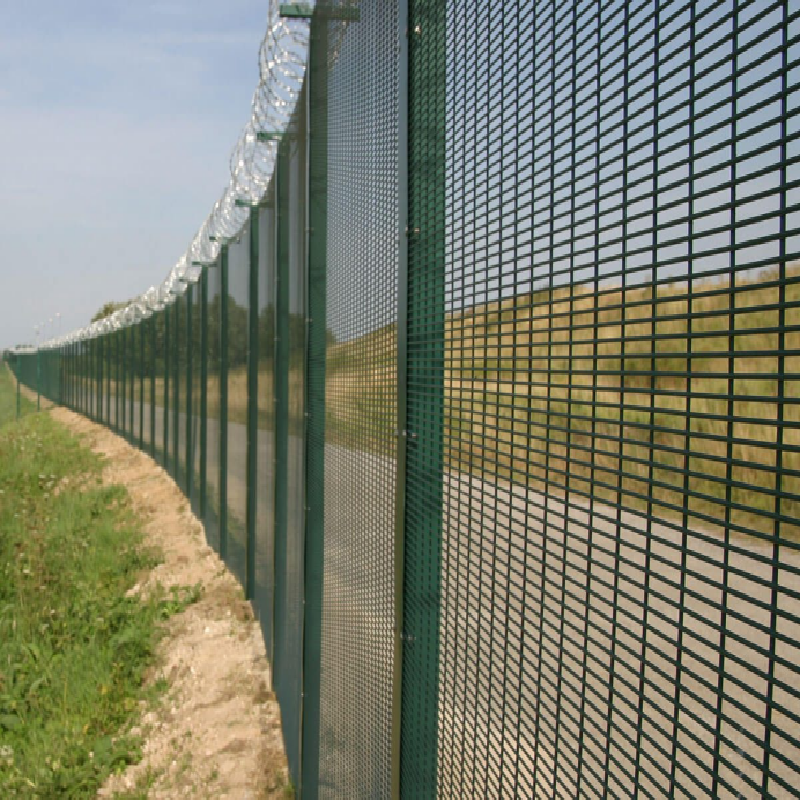

358 Anti-Climb Prison Fence System
The 358 Anti-Climb Prison Fence System is engineered for high-security perimeter protection in correctional facilities, detention centers, military bases, airports, and other critical infrastructure. Its small mesh opening and heavy-duty welded steel construction provide excellent anti-climb, anti-cut, and long-term durability. Available with galvanized or powder-coated finishes, the system can be customized to meet different project specifications and security requirements.

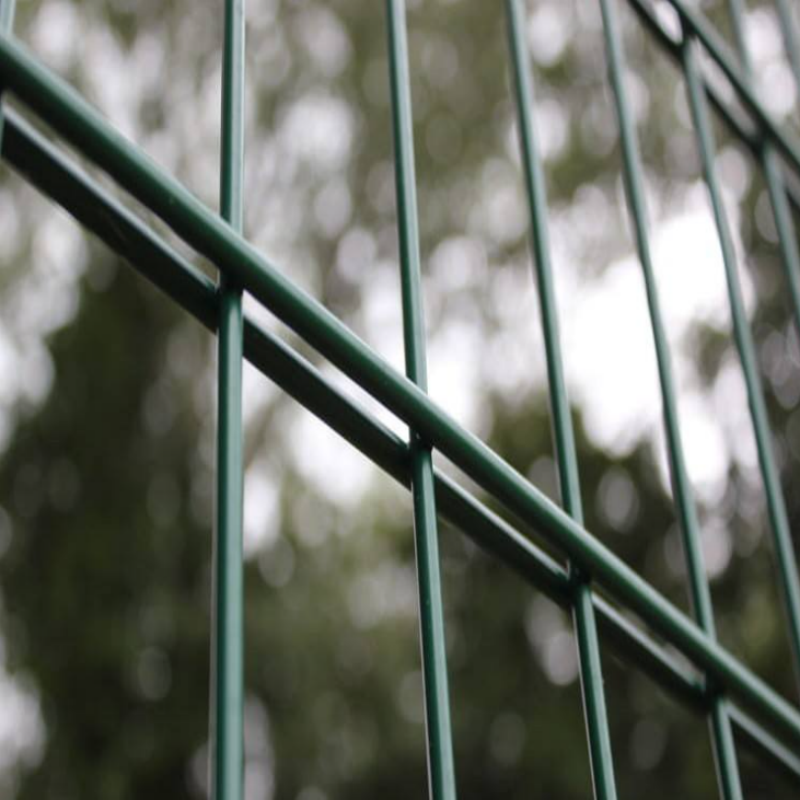

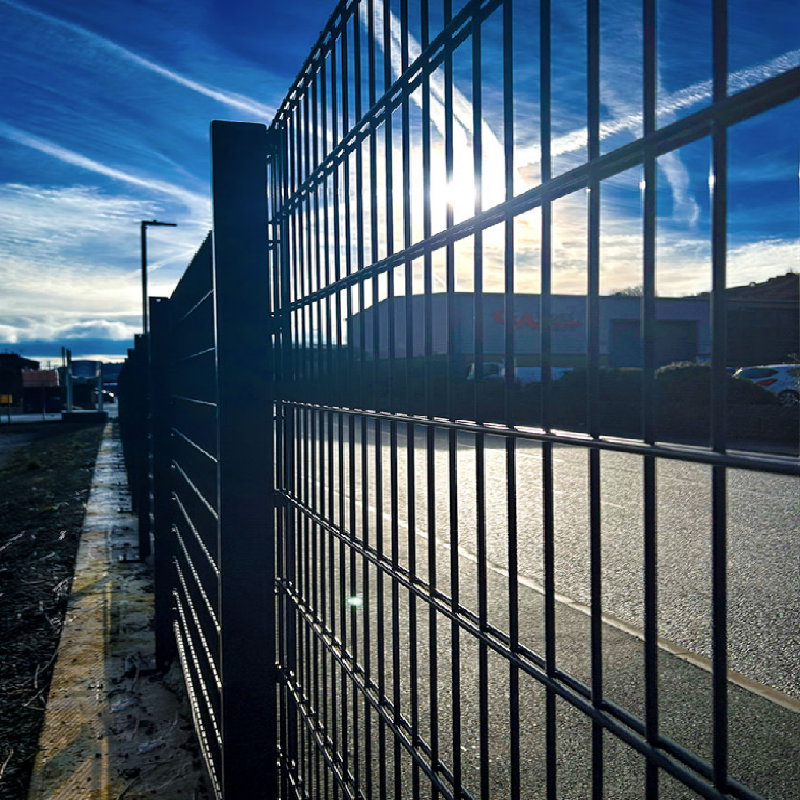

Double Wire 868 Prison Fence System
The Double Wire 868 Prison Fence System is a heavy-duty security fencing solution designed for high-risk perimeter protection. Featuring twin horizontal wires welded to a vertical wire, it offers outstanding strength, rigidity, and impact resistance. Ideal for correctional facilities, detention centers, industrial sites, and critical infrastructure, the system is available with galvanized or powder-coated finishes and can be customized to meet specific project requirements.

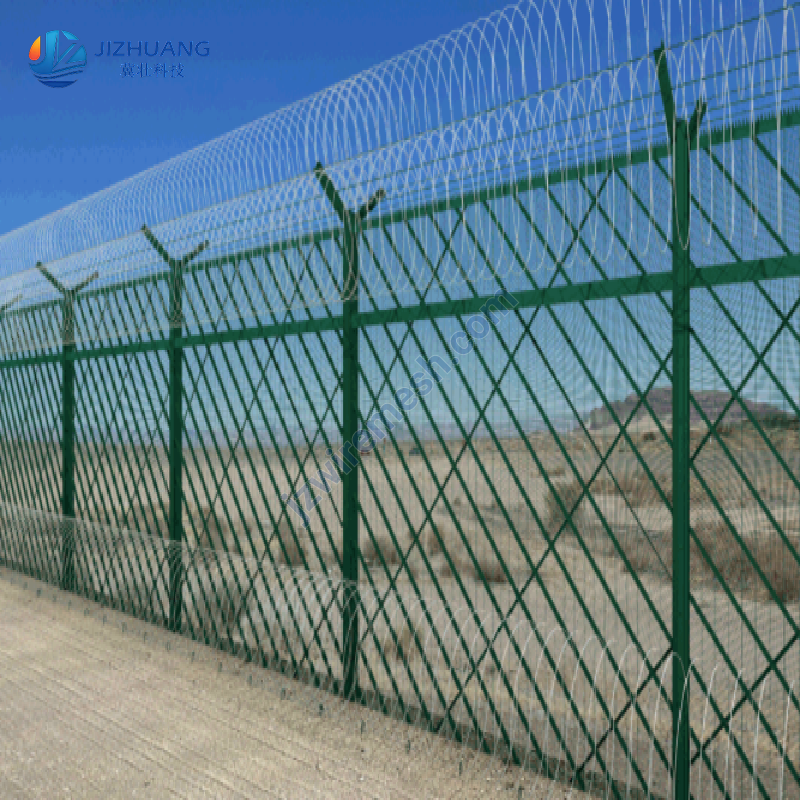

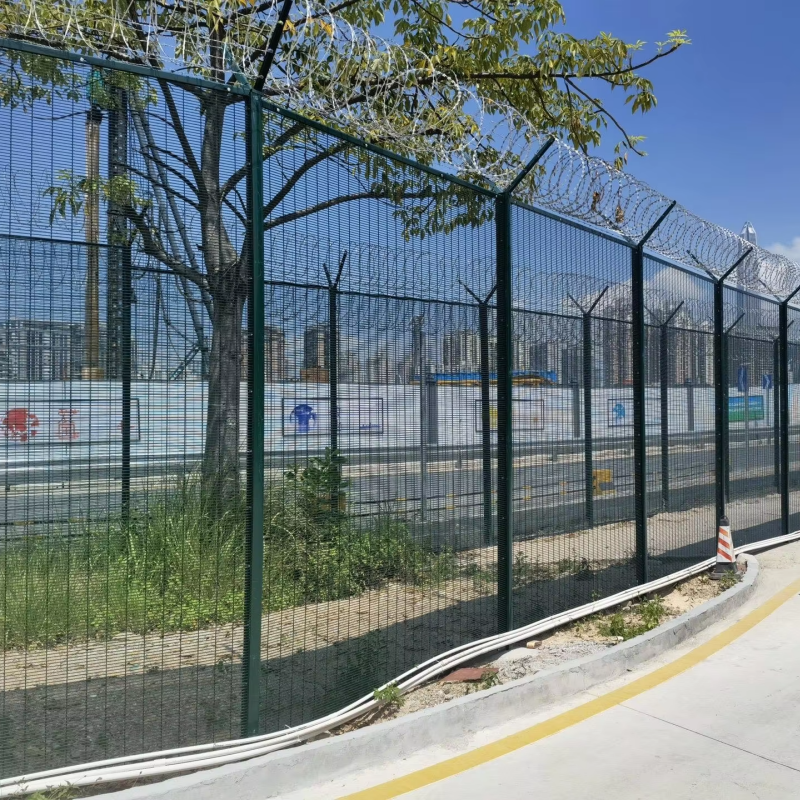

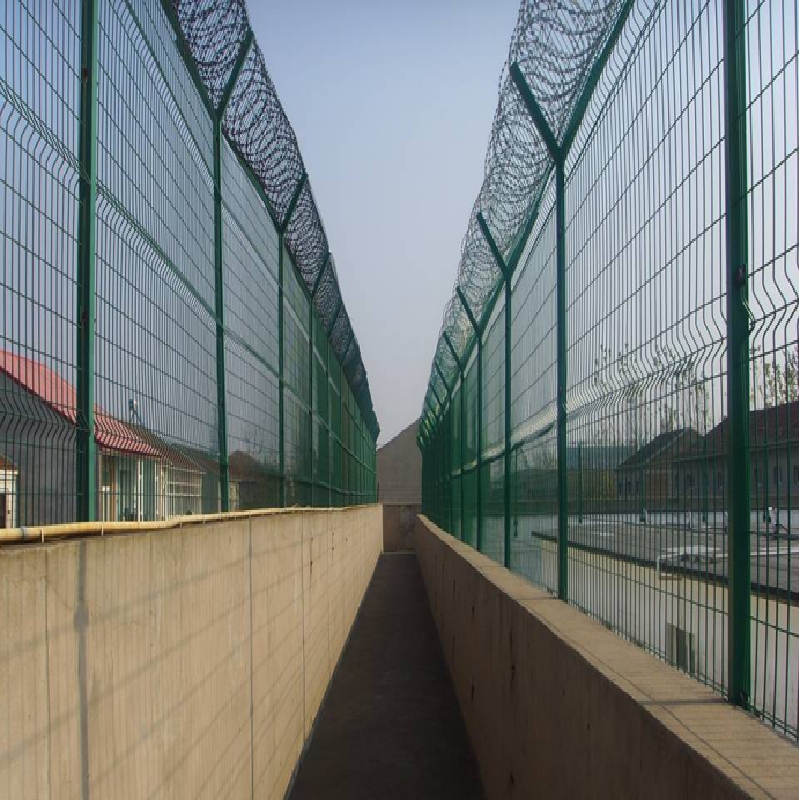

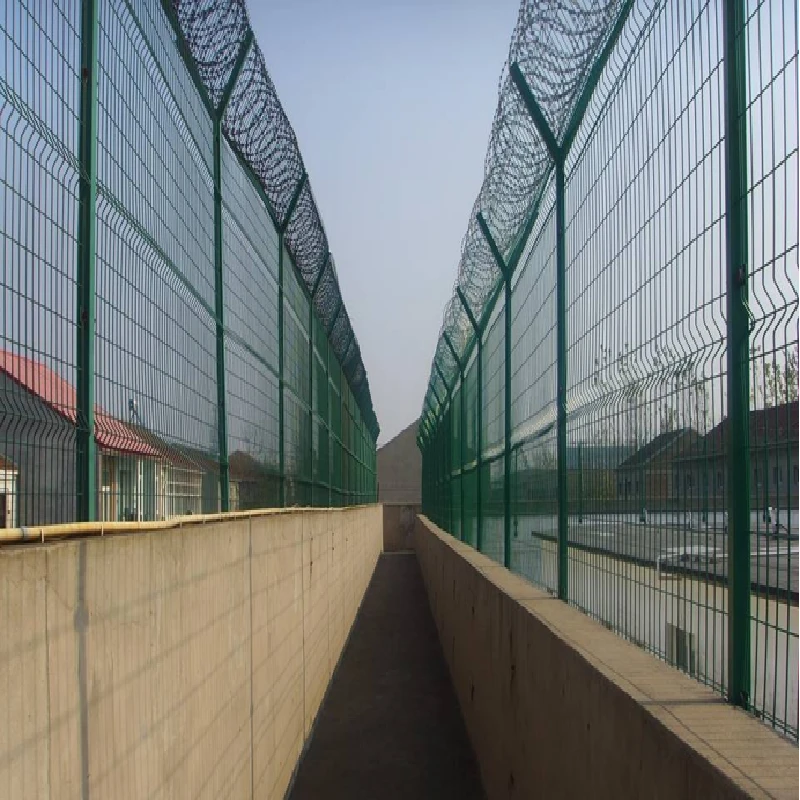

Welded Mesh Prison Fence System
The Welded Mesh Prison Fence System is designed to provide reliable perimeter security for correctional facilities and other high-security sites. Its rigid welded steel mesh offers excellent strength, clear visibility for surveillance, and enhanced resistance to cutting and impact. The system can be integrated with razor wire, barbed wire, or electronic security systems to achieve higher protection levels. With galvanized or powder-coated finishes, it delivers long-term corrosion resistance and low maintenance while supporting customized project requirements.

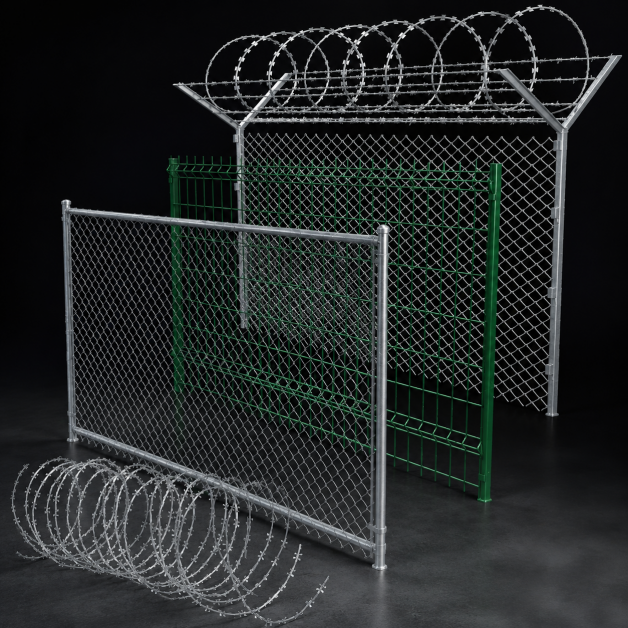

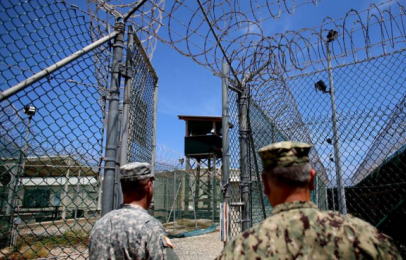

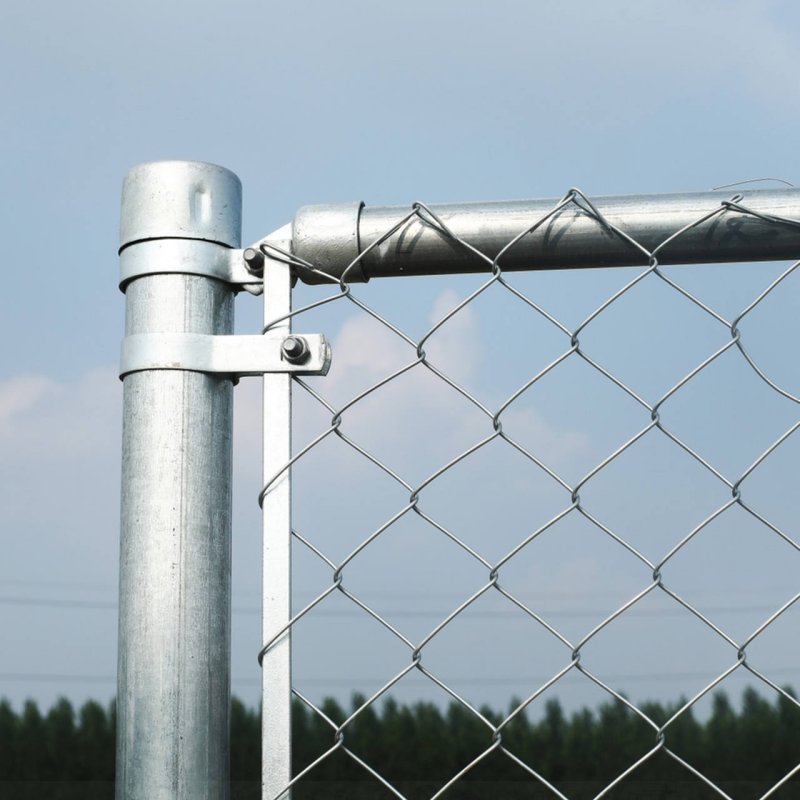

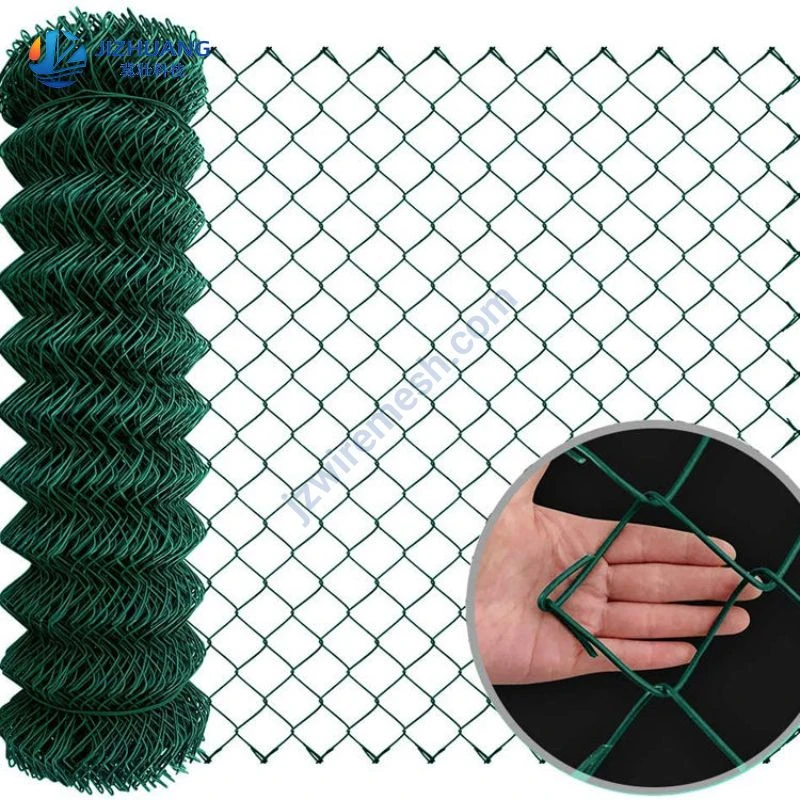

Chain Link Fence Prison Security System
The Chain Link Fence Prison Security System is a cost-effective perimeter security solution for correctional facilities, detention centers, and restricted areas. Its high-strength steel mesh provides reliable security while maintaining excellent visibility for surveillance and patrols. The system can be enhanced with barbed wire, razor wire, or other security accessories to meet higher protection requirements. Available with galvanized or PVC-coated finishes, it offers long-lasting corrosion resistance, low maintenance, and flexible customization for different security projects.
Security Fence System Specifications
| Fence Type | 358 Anti-Climb Fence, Double Wire 868 Fence, Welded Mesh Fence, Chain Link Security Fence |
| Fence Material | High-Quality Low Carbon Steel Wire / Galvanized Steel Wire |
| Wire Diameter | 3.0–6.0 mm (Depending on Fence Type) |
| Mesh Opening | 12.7 × 76.2 mm (358), 50 × 200 mm, 55 × 200 mm, 60 × 150 mm, or Custom |
| Panel Height | 1800–3600 mm |
| Panel Width | 2000–3000 mm |
| Post Type | Square Post, Rectangular Post, Peach Post, C Post, IPE Post |
| Post Size | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, or Custom |
| Surface Treatment | Hot-Dip Galvanized, Powder Coated, PVC Coated |
| Color | RAL 6005 Green, RAL 7016 Anthracite Grey, Black, or Custom |
| Connection System | Heavy-Duty Steel Clamps, Anti-Tamper Bolts, Security Brackets |
Perimeter Security Enhancement Options
| Item | Specification |
|---|---|
| Top Security Options | Y Arms, V Arms, Extension Arms |
| Razor Wire Type | CBT-60, CBT-65, BTO-22, BTO-30, BTO-60, BTO-65, or Custom |
| Razor Wire Material | Hot-Dip Galvanized Steel, Stainless Steel 304/316 |
| Razor Wire Coil Diameter | 450 mm, 500 mm, 600 mm, 700 mm, 730 mm, 900 mm, 980 mm |
| Razor Wire Installation | Straight Line, Concertina Coil, Cross Concertina Coil |
| Security Accessories | Razor Wire, Barbed Wire, Security Clamps, Anti-Climb Spikes, Anti-Tamper Fasteners |

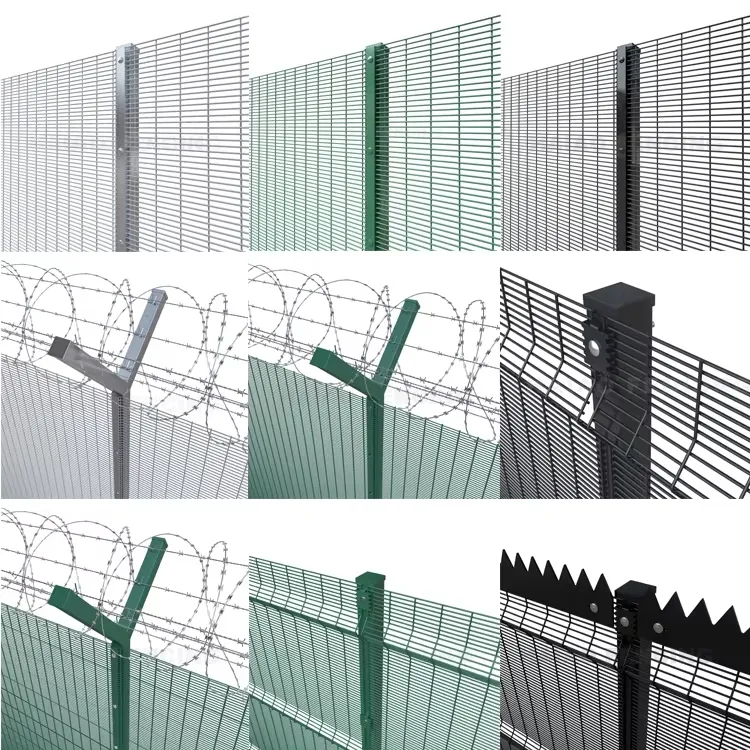

Hot-Dip Galvanized Prison Fence
Galvanized + Polyester Powder Coated Prison Fence
Customized Prison Fence Systems Built for Your Project Needs
Security level-based design (low / medium / high / maximum security)
CAD drawing and technical proposal support
Terrain-adaptive installation solutions
Gate systems (sliding / swing / anti-climb gates)
Razor wire & barbed wire integration design
Tender documentation support for government projects
01

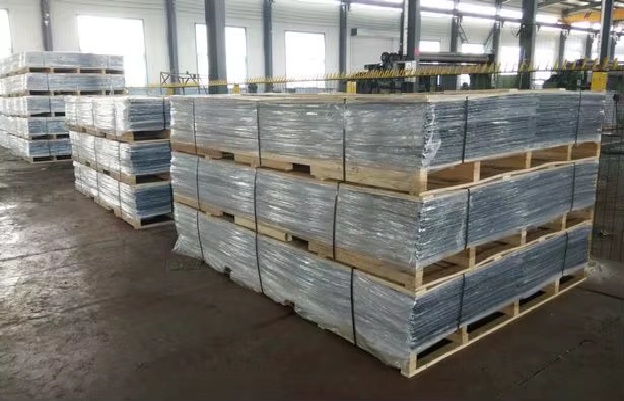

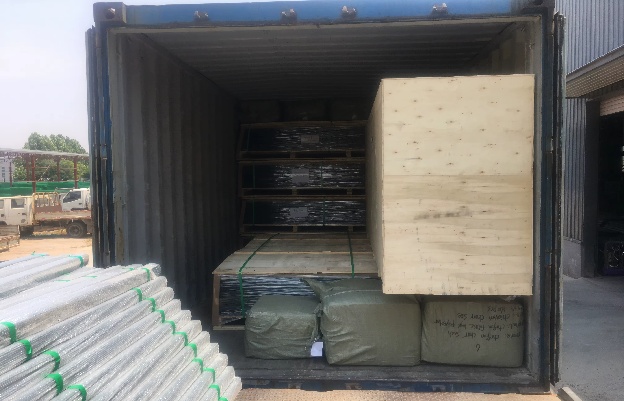

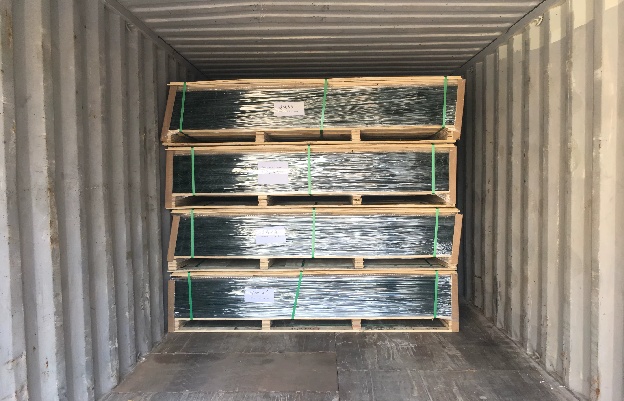

Secure Panel Packaging
Fence panels are stacked neatly with plastic film or protective pads between each layer to prevent scratches and coating damage during handling and transportation.
02
Protected Posts and Accessories
Posts, brackets, clamps, bolts, and other accessories are packed separately in strong woven bags, cartons, or pallets to ensure all components arrive complete and undamaged.
03

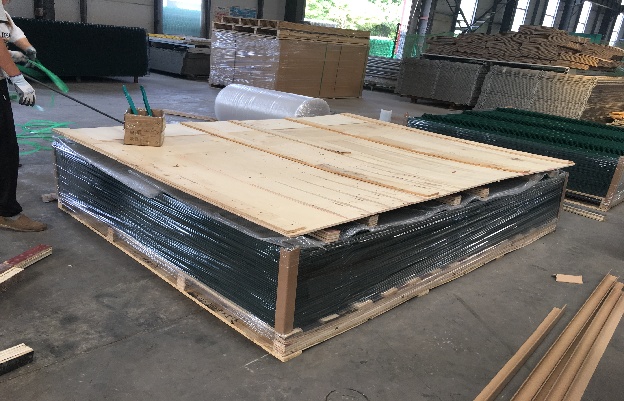

Export-Standard Packing
All products are packed according to international export standards using steel pallets, wooden pallets, steel straps, stretch film, or customized packaging to provide maximum protection during sea, land, or air transportation.
04
Container Loading Optimization
Our experienced logistics team optimizes container loading layouts to maximize loading capacity, improve transportation efficiency, and reduce shipping costs for customers.
05
Custom Packaging Available
Customized packaging solutions, including private labels, logo printing, barcode labels, and special packing requirements, are available to meet OEM, distributor, and project-specific needs.
06
Global Shipping Support
We support worldwide delivery through reliable logistics partners and can arrange sea freight, rail freight, air freight, or multimodal transportation according to your destination and project schedule.
We are not just a supplier—we are a security fencing system solution provider.

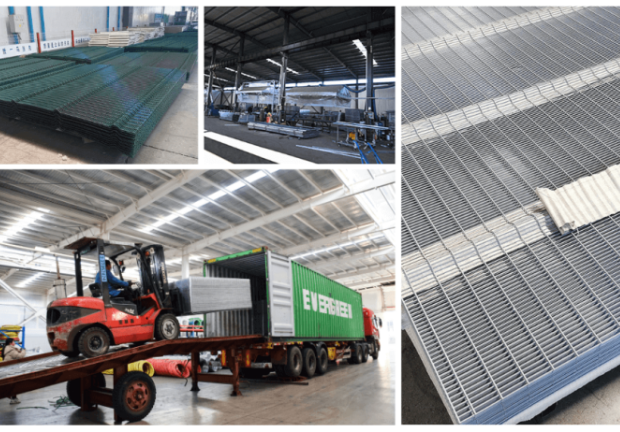

20+ years manufacturing experience in wire mesh industry
Professional prison security fence production line
Advanced automated welding & coating systems
Daily output over 10,000 m²
ISO & CE certified quality management system
Strong export experience (Australia, Europe, Middle East, Africa)
Full OEM / ODM customization capability
FAQ
Q: Can your Prison Fence meet international security project requirements?
Yes. Our prison fence systems are designed for high-security perimeter applications and can be customized to meet different international project standards, including Australia, Europe, and Middle East engineering requirements.
We support project-specific technical adaptation, including mesh size, wire diameter, coating system, and anti-climb structure to ensure compliance with tender specifications.
Q: Are you a manufacturer or trading company?
Q: Can you provide complete prison fence system solutions (not just panels)?
Q: Can you support custom design for my project site?
Q: Do you have experience with Australian prison or security projects?
Q: How do I ensure product quality before placing a large order?
Q: How can I get a quotation for my project?
If you are looking for a reliable Prison Fence manufacturer and security fencing solution provider, Hebei Jizhuang Technology Co., Ltd. is ready to support your project with professional engineering capability and stable supply.
